Eaton CZP-20-313-PN Roughneck CZ insert kit - UL Certified
Part Number: CZP-20-313-PN
Quick Summary
CZP-20-313-PN is a Roughneck CZ insert kit for high-current, multi-pin connections in industrial control panels. This solution helps avoid rework and field retouching by delivering secure crimps in vibration-prone environments. Key certifications include UL certification for CZ Series data, signal, and power applications and an Ordinary/Non-Hazardous Locations area classification. With an 18 A rating, a 20-shell size, and #16 AWG crimp contacts, the kit accelerates installation, improves reliability, and reduces long-term maintenance. Its compatibility with Roughneck multi-pin assemblies helps standardize connector strategy across facilities, while the included resources streamline procurement and retrofits for safer, compliant electrical systems.
Product Information
Extended Description

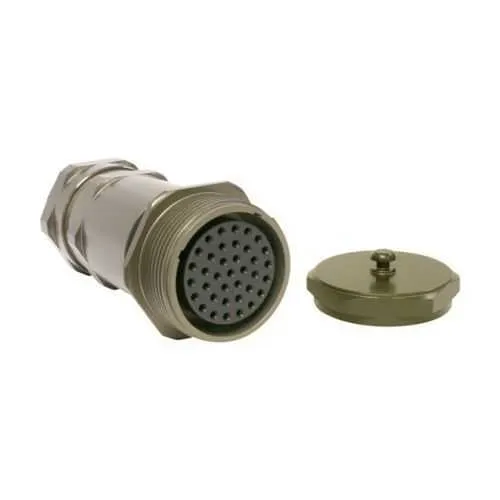

CZP-20-313-PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 18A, Male, #16 AWG, Crimp, Pin, 20 shell
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-20-313-PN
Product Length/Depth
2.42 in
Product Height
2.5 in
Product Width
2.5 in
Product Weight
0.65 lb
UPC
662276429093
Area classification
Ordinary/Non-Hazardous Locations
Shell size
20
Contact size
#16 AWG
Amperage Rating
18 A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Multi-pin Connectors
Multi-pin Connectors
Feature → High-current capability and rugged design → The CZP-20-313-PN provides an 18 A amperage rating and robust construction that support motor drives, power distribution, and control circuits, reducing the need for parallel terminations and lowering wiring complexity. Application in heavy industrial panels yields measurable uptime gains and lower total cost of ownership. Feature → Shell size 20 with #16 AWG crimp contacts → The 20-shell size and crimp termination for #16 AWG conductors enable compact, dense terminations without compromising current handling. This directly translates to easier field routing and faster panel builds, improving project timelines and reducing labor costs in manufacturing and process environments. Application in dimension-constrained enclosures supports efficient cabinet design. Feature → Male pin contact and crimp termination → The male, pin-contact design ensures reliable mating and vibration resistance in dynamic applications, minimizing contact resistance and arcing risk. This is critical in automation and motion-control applications where consistent signal integrity, diagnostics, and safety are paramount. Application in data, signal, and power applications includes data cabling runs and control loop wiring. Feature → UL CZ Series certification and Ordinary/Non-Hazardous locations classification → Compliance with UL CZ Series requirements and ordinary-location classification provides assurance for data, signal, and power connectors in standard industrial settings. This enables procurement teams to meet compliance demands quickly and reduces the risk of non-conforming installs. Application in plant-wide control panels supports auditing, safety verification, and regulatory alignment. Feature → Installation resources and compatibility with Roughneck ecosystem → Access to installation sheets and spec guides simplifies integration with existing CZ components, supports standardization across facilities, and minimizes training time for technicians. Application in retrofit projects and new builds enhances consistency, reduces errors, and speeds commissioning.
