Eaton CZP-20-313-SN Roughneck CZ insert kit - 18 A
Part Number: CZP-20-313-SN
Quick Summary
CZP-20-313-SN Roughneck CZ insert kit provides rugged power connections for heavy industrial wiring in harsh environments. Engineers often struggle with multi-pin interconnects that fail under vibration or improper crimping; this kit addresses those challenges with a 20-shell, female socket design and reliable crimp termination for #16 AWG wire. It carries UL certification for data, signal, control, and power applications and is suitable for ordinary/non-hazardous locations, helping you meet regulatory requirements while simplifying procurement. By pairing this insert with compatible Roughneck assemblies, you can streamline spares, reduce on-site assembly time, and improve maintenance planning across manufacturing or process environments. Additional benefits include space efficiency and improved traceability in control panels.
Product Information
Extended Description

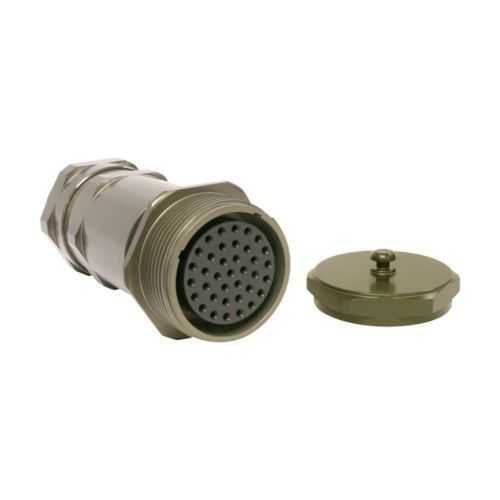

CZP-20-313-SN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 18A, Female, #16 AWG, Crimp, Socket, 20 shell
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-20-313-SN
Product Length/Depth
2.42 in
Product Height
2.5 in
Product Width
2.5 in
Product Weight
0.65 lb
UPC
662276429109
Area classification
Ordinary/Non-Hazardous Locations
Shell size
20
Contact size
#16 AWG
Amperage Rating
18 A
Connector gender
Female
Contact type
Socket
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Eaton Specification Sheet - CZP-20-313-SN
Eaton Specification Sheet - CZP-20-313-SN
Feature: 18 A amperage rating with #16 AWG crimp socket contacts. Business Impact: Supports robust load performance while ensuring secure field terminations, reducing the likelihood of arcing or loose connections. Application: Ideal for industrial control panels and power distribution in machinery where consistent current delivery is critical. Feature: Shell size 20 with socket, female contacts in a compact footprint. Business Impact: Enables high-density interconnects and easier panel mounting, speeding assembly and service. Application: Used in rugged environments with limited space inside control cabinets. Feature: Crimp termination for reliable, repeatable connections. Business Impact: Improves installation reliability and traceability, cutting maintenance downtime and rework. Application: Suitable for technicians performing field wiring and cabinet assembly. Feature: Area classification Ordinary/Non-Hazardous Locations. Business Impact: Supports safe installation in typical factory floors, aligning with standard industrial codes. Application: Applies to general manufacturing and non-hazardous processes. Feature: UL certification coverage for Roughneck CZ series. Business Impact: Facilitates regulatory compliance and design approvals in both US and Canada. Application: Enables procurement and design teams to meet safety and performance requirements with confidence.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-20-313-SN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-20-313-SN?
Enquire Now
FAQs
CZP-20-313-SN is designed to pair with other Roughneck CZ insert and connector assemblies. Ensure shell size 20 and compatible mating connectors are used to maintain the intended current rating (18 A) and to preserve crimp termination integrity. Always follow Eaton installation sheets for proper torque and crimp tooling to avoid assembly faults.
The CZP-20-313-SN provides an 18 A amperage rating and uses #16 AWG contact size with female socket contacts and crimp termination. This combination supports reliable power and control interconnects in standard industrial environments, suitable for non-hazardous locations where robust crimped connections are required.
Best-suited for heavy industrial power and control interconnects, including panel-mounted wiring in manufacturing equipment, processing lines, and data/control racks. The 20-shell, 18 A, #16 AWG socket configuration enables compact, high-density connections within ordinary locations, improving reliability in vibration-prone environments and simplifying spare parts management.
CZP-20-313-SN aligns with UL certifications for the Roughneck CZ series, covering data, signal, control, and power applications for US and Canada. It is classified for Ordinary/Non-Hazardous Locations, supporting standard factory compliance. Always reference the UL certificates in the provided documentation to verify applicability to your specific region and application.
Using the CZP-20-313-SN reduces field wiring variability through standardized crimp terminations, speeding installation and minimizing rework. The compact footprint and reliable performance translate to lower maintenance downtime and improved panel reliability, contributing to a lower total cost of ownership in systems with frequent interconnect maintenance or replacements.
