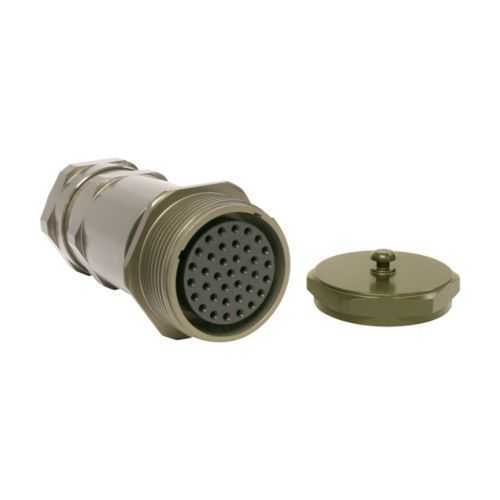

Eaton CZP-20-350-PN Roughneck insert kit - Ord/Non-HazLoc
Part Number: CZP-20-350-PN
Quick Summary
CZP-20-350-PN Roughneck insert kit provides high-current power connections for industrial control panels. This rugged solution addresses the common challenge of securing reliable terminations in harsh factory environments. The CZ insert kit is documented for Ordinary/Non-Hazardous Locations and is supported by Canadian certification literature to aid North American compliance. By pairing a compact shell with crimp-pin contacts, it streamlines installation while delivering consistent electrical performance. The kit aligns with Roughneck multi-pin connector families, offering compatibility and scalable expansion for OEM wiring harnesses. From procurement to installation, it delivers value through reliability, reduced downtime, and simplified maintenance in industrial settings.
Product Information
Extended Description
CZP-20-350-PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 30A, Male, #12 AWG, Crimp, Pin, 20 shell, 37 contacts
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-20-350-PN
Product Length/Depth
2.42 in
Product Height
2.5 in
Product Width
2.5 in
Product Weight
0.65 lb
UPC
662276429154
Area classification
Ordinary/Non-Hazardous Locations
Shell size
20
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Multi-pin Connectors
Multi-pin Connectors
Feature: 30A amperage rating with #12 AWG contact size; Business Impact: enables high-current distribution in a compact footprint, reducing cabinet size and wiring complexity; Application: power and control circuits in industrial panels. Feature: Shell size 20 and 37 contacts; Business Impact: supports multi-pin configurations for dense wiring harnesses, improving signal and power routing in machine enclosures; Application: complex multi-pin connections in heavy equipment. Feature: Pin-type contact with crimp termination; Business Impact: provides reliable, field-serviceable terminations with consistent crimp integrity and faster maintenance; Application: on-site wiring and OEM harness assembly. Feature: Male connector with crimp pin; Business Impact: ensures robust mating interfaces and secure mechanical retention in vibration-prone environments; Application: rugged industrial connectors. Feature: Area classification Ordinary/Non-Hazardous Locations; Business Impact: confirms suitability for general factory floors, reducing special-purpose enclosure requirements; Application: standard manufacturing facilities and non-hazardous automation rooms. Feature: Documentation and literature availability; Business Impact: accelerates design validation and procurement through brochures, catalogs, and installation sheets; Application: engineering and purchasing teams validating CZ series compatibility.
