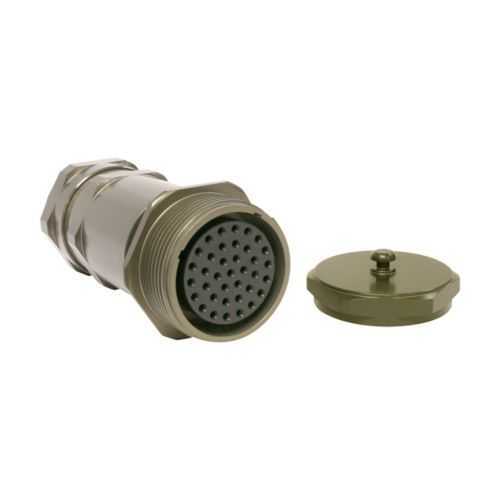

Eaton CZP-20-359-PN Roughneck CZ Insert Kit - 55 A
Part Number: CZP-20-359-PN
Quick Summary
CZP-20-359-PN Roughneck CZ insert kit is a rugged, high-current connector solution designed for heavy industrial panels. Engineers often face unreliable terminations, vibration loosening, and slow field repairs when wiring multi-pin equipment. This insert kit aligns with ordinary/non-hazardous location requirements and has Canadian CZ Series certifications, underscoring compliance across North American sites. By delivering a 55 A rating, shell size 20, and crimp termination for #8 AWG conductors, it enables secure, durable connections in demanding environments. The solution also supports fast installation with compatible Roughneck accessories, improving maintenance intervals and reducing downtime, while aligning with standard installation practices and long-term cost-of-ownership goals.
Product Information
Extended Description
CZP-20-359-PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 55A, Male, #8 AWG, Crimp, Pin, 20 shell
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-20-359-PN
Product Length/Depth
2.42 in
Product Height
2.5 in
Product Width
2.5 in
Product Weight
1 lb
UPC
662275358479
Area classification
Ordinary/Non-Hazardous Locations
Shell size
20
Contact size
#8 AWG
Amperage Rating
55 A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Multi-pin Connectors
Multi-pin Connectors
Feature: 55 A amperage rating and #8 AWG contact size. Business Impact: Supports high-current loads such as motors and power distribution with reliable terminations, reducing overheating risk and maintenance costs. Application: Heavy industrial panels and equipment hookups where premium current handling is required. Feature: Shell size 20 and compact Roughneck form factor. Business Impact: Maintains a practical footprint in crowded control cabinets, enabling easier cable management and faster panel wiring. Application: machines with space constraints in manufacturing environments. Feature: Crimp termination. Business Impact: Delivers consistent, vibration-resistant connections, cutting field-service time and re-termination failures. Application: On-site assembly and field upgrades of multi-pin connectors. Feature: Pin contact, #8 AWG, male connector. Business Impact: Ensures robust mating with compatible CZ series parts, improving electrical continuity and minimizing contact resistance. Application: Power and signal distribution in harsh environments. Feature: Area classification Ordinary/Non-Hazardous Locations and CZ Series Canadian certifications. Business Impact: Supports compliance across facilities in non-hazardous zones, simplifying procurement and audit processes. Application: North American installations with regulatory alignment. Feature: Comprehensive literature and installation materials availability. Business Impact: Accelerates commissioning with clear guidelines, reducing installation risk and downtime. Application: Project engineering and service teams referencing IF 1688, brochures, and spec sheets.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-20-359-PN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-20-359-PN?
Enquire Now
FAQs
Verify shell size compatibility (20) and conductor size (#8 AWG). Use proper crimp tooling for crimp termination, ensure mating with the CZ family, and follow the IF 1688 installation guidance to secure the Male Pin contacts in the CZP-20-359-PN housing. This minimizes risk of loose connections and vibration-induced failures.
The insert kit provides a 55 A amperage rating, shell size 20, contact size #8 AWG, with a male pin contact and crimp termination. These specs support reliable power delivery in heavy industrial applications while maintaining compact form factor.
Yes. The product is specified for Ordinary/Non-Hazardous Locations, aligning with typical factory floors and controlled environments. For hazardous locations, consult alternative CZ series configurations and applicable certifications.
The CZP-20-359-PN supports Ordinary/Non-Hazardous area compliance. Canadian CZ Series certifications are available for related components, reinforcing cross-border suitability and audit readiness.
Eaton provides installation sheets and literature, including Roughneck brochures, multi-pin connectors catalogs, and the IF 1688 instruction sheet. These resources help reduce commissioning time, ensure correct termination, and support ongoing maintenance planning.
