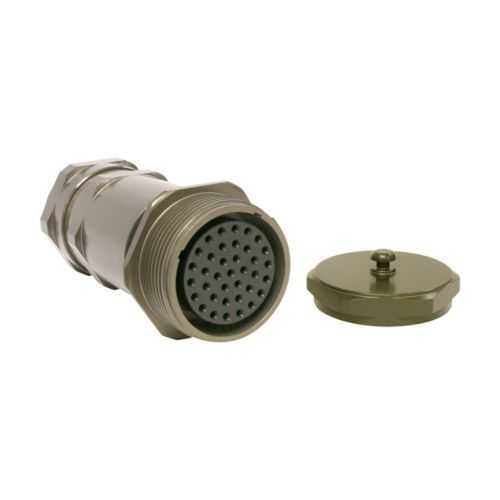

Eaton Crouse-Hinds CZP-20-376-PN Roughneck insert kit - 30A
Part Number: CZP-20-376-PN
Quick Summary
CZP-20-376-PN Roughneck insert kit is a rugged multi-pin solution for industrial control panels. Engineers often struggle with tight panel space and unreliable connections in harsh environments, making quick, secure wiring essential. These inserts carry area classification for Ordinary/Non-Hazardous Locations and UL Canada certification for the CZ Series, reinforcing compliance and reliability. Used with 20-shell, #12 AWG conductors and a 30A rating, the kit helps streamline assembly and reduce maintenance in demanding automation projects. In production settings, this translates to safer power distribution, higher uptime, and lower total cost of ownership by simplifying installation and future upgrades.
Product Information
Extended Description
CZP-20-376-PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 30A, Male, #12 AWG, Crimp, Pin, 20 shell, 19 contacts
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-20-376-PN
Product Length/Depth
2.42 in
Product Height
2.5 in
Product Width
2.5 in
Product Weight
0.65 lb
UPC
662276429178
Area classification
Ordinary/Non-Hazardous Locations
Shell size
20
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Multi-pin Connectors
Multi-pin Connectors
Feature: Shell size 20, 30A rating, male pin, crimp termination, 20 shell, 19 contacts. Business impact: Supports robust, high-current connections with reliable crimp terminations, reducing connection failures and rework. Application: Ideal for heavy industrial power and control circuits in compact panel spaces. Feature: Area classification Ordinary/Non-Hazardous Locations. Business impact: Enables safe use in general industrial environments without specialized hazardous-location protections, lowering compliance costs. Application: Data, signal, and control installations in non-hazardous areas. Feature: UL Canada certification for CZ Series. Business impact: Improves regulatory confidence for Canadian operations and cross-border projects, accelerating procurement cycles. Application: Multi-pin connector deployments across Canadian facilities. Feature: Compatible contact size #12 AWG and 20 shell design. Business impact: Streamlines wiring with common gauges, reducing inventory complexity and accelerating field installs. Application: Standard automation wiring, data/power mixes, and panel interconnects. Feature: Crimp termination and pin contact type. Business impact: Faster, tool-assisted assembly with durable, vibration-resistant connections; reduces field maintenance. Application: On-site assembly in climate-controlled or rugged environments. Feature: Compact dimensions (2.42 in length, 2.5 x 2.5 in) and weight (0.65 lb). Business impact: Space-saving footprint inside crowded enclosures and easier handling during installation. Application: Panel design where space is premium and serviceability matters. Feature: 19 contacts in the kit. Business impact: Enables multi-pin connectivity for complex instrumentation without multiple adapters. Application: Data, signal, and power applications within Roughneck CZ multi-pin systems.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-20-376-PN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-20-376-PN?
Enquire Now
FAQs
CZP-20-376-PN is a Roughneck CZ insert kit designed for shell size 20 with a 20-shell configuration and pin-style contacts. It accepts #12 AWG conductors and uses crimp termination, making it suitable for rugged industrial panels where compact footprint and reliable power/connectivity are required.
The kit is rated for 30A with male pin contacts and crimp termination. It uses #12 AWG conductors and fits into a 20-shell system, providing a robust solution for power and control circuits in non-hazardous environments.
Yes. The Roughneck CZ insert kit supports multi-pin connectivity suitable for data, signal, and power applications in industrial automation. Its 30A rating and 19-contact configuration enable complex interconnects while maintaining a compact profile suitable for crowded panels.
The CZ series, including CZP-20-376-PN, carries area classification for Ordinary/Non-Hazardous Locations and UL Canada certification for the CZ Series, providing regulatory confidence for both general industrial and Canadian operations.
Use proper crimp tooling for reliable terminations, follow the installation guidelines in the IF 1688 instruction sheet, and ensure the mating connectors match the 20-shell size. The kit’s compact footprint and 30A rating reduce panel space, minimize maintenance, and streamline field wiring, delivering faster commissioning and longer service intervals.
