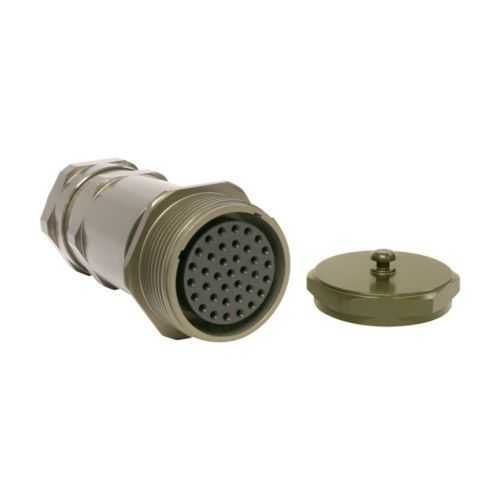

Eaton Crouse-Hinds CZP-20-386-PN Insert Kit - 30A
Part Number: CZP-20-386-PN
Quick Summary
CZP-20-386-PN insert kit delivers rugged CZ connectors for heavy industrial power and control circuits. This solution addresses the common pain point of unreliable terminations and field wiring delays in harsh environments. It carries UL certifications for Roughneck CZ Series in US and Canada and specifies ordinary/non-hazardous location usage, ensuring compliant installations. Designed for seamless compatibility with the CZ family and crimped #12 AWG conductors, it speeds assembly, reduces rework, and scales with growing automation needs in manufacturing, packaging, and process industries. Engineers gain a proven, high-current connector solution that supports reliability, safety compliance, and faster integration into control panels and motor drives.
Product Information
Extended Description
CZP-20-386-PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 30A, Male, #12 AWG, Crimp, Pin, 20 shell, 37 contacts, 240 Vac
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-20-386-PN
Product Length/Depth
2.42 in
Product Height
2.5 in
Product Width
2.5 in
Product Weight
0.65 lb
UPC
662276429192
Area classification
Ordinary/Non-Hazardous Locations
Shell size
20
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Eaton Specification Sheet - CZP-20-386-PN
Eaton Specification Sheet - CZP-20-386-PN
Feature: 30A amperage rating and 240V AC operation. Benefit: Supports high-demand motors and control circuits with a single, robust connection, reducing the number of components and potential failure points in industrial systems. Application: Suitable for heavy equipment and process lines where reliable power distribution is critical. Feature: Shell size 20 and a 20-shell, 37-contact configuration. Benefit: Enables dense pin-out within a compact footprint, simplifying harness routing and panel layout in complex control panels. Application: Data and control wiring in automation cabinets where space is at a premium. Feature: Pin contact with #12 AWG crimp termination. Benefit: Delivers durable, vibration-resistant terminations that withstand harsh factory conditions, lowering maintenance needs. Application: Field-installed power and signal interconnects in manufacturing environments. Feature: Male connector and crimp contacts. Benefit: Quick, tool-ready assembly with proven mating integrity and repeatable performance. Application: Panel assemblies and machine builds requiring quick-connect reliability. Feature: Ordinary/Non-Hazardous area classification. Benefit: Aligns with common industrial locations, reducing compliance overhead for standard manufacturing floors. Application: General purpose machine rooms and non-hazardous production lines. Feature: Compatibility with Roughneck CZ family. Benefit: Streamlines sourcing and spare parts management by using a common connector ecosystem. Application: Cross-model installations across multi-pin Roughneck systems, improving lifecycle management and procurement efficiency.
