Eaton CZP-20-386-SN Roughneck CZ insert kit - UL Listed
Part Number: CZP-20-386-SN
Quick Summary
CZP-20-386-SN is a rugged Roughneck CZ insert kit designed for heavy industrial power and control connections. Operators often struggle with unreliable terminations in harsh environments, leading to downtime and maintenance headaches. This kit is UL-listed for the CZ series and suitable for ordinary/non-hazardous locations, supporting safe data, signal, and power applications. Designed for quick field assembly with crimp sockets, it reduces installation time while delivering dependable 240 VAC operation. For panel builders and OEMs, the Roughneck ecosystem offers compatibility with common multi-pin connectors, enabling scalable, durable solutions across demanding industrial stations.
Product Information
Extended Description

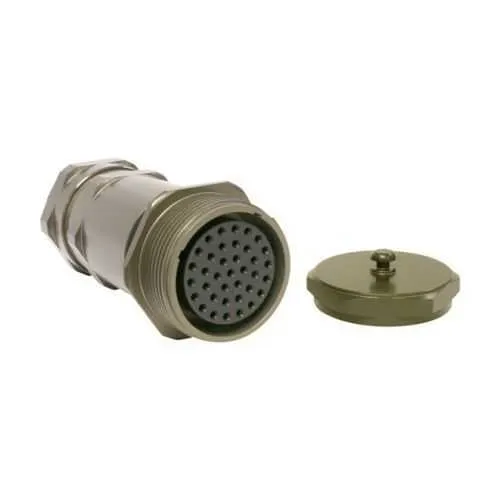

CZP-20-386-SN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 30A, Female, #12 AWG, Crimp, Socket, 20 shell, 37 contacts, 240 Vac
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-20-386-SN
Product Length/Depth
2.42 in
Product Height
2.5 in
Product Width
2.5 in
Product Weight
0.65 lb
UPC
662276429208
Area classification
Ordinary/Non-Hazardous Locations
Shell size
20
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Female
Contact type
Socket
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Multi-pin Connectors
Multi-pin Connectors
Feature: 30A amperage rating paired with #12 AWG contact size supports high-current loads without oversized harnesses. This CZP-20-386-SN insert uses a 20-shell arrangement to maintain compact panels while delivering reliable, low-resistance connections. The crimp termination method reduces field variability and ensures durable interfaces in vibration-prone industrial equipment. Business Impact: Reliable power delivery minimizes downtime and rework, improving line efficiency and maintenance planning. Application: Ideal for motor drives, conveyors, and machine controls where 240 VAC power and compact footprint are required. Long-tail keywords such as rugged industrial connectors, 30A crimp sockets, and #12 AWG harnesses are leveraged to align with typical procurement searches.
