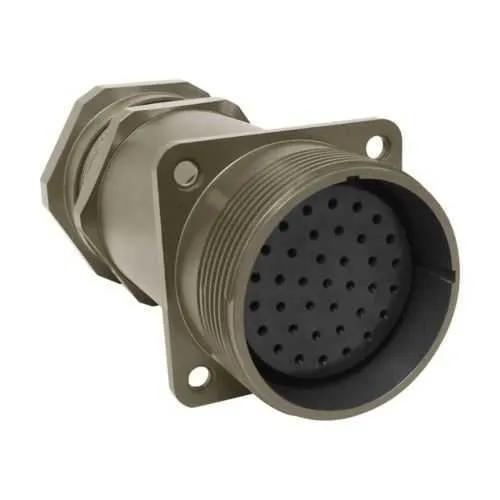

Eaton CZP-24-371-PN Roughneck CZ insert kit - UL Certified
Part Number: CZP-24-371-PN
Quick Summary
CZP-24-371-PN is a Roughneck insert kit that delivers reliable multi-pin connectivity for heavy industrial controls. In the field, installers face space constraints and rugged environments, making crimped pin terminations prone to misalignment and failure. This kit addresses those challenges with a compact 24-shell, #16 AWG contacts and an 18 A rating, delivering secure, vibration-resistant connections. UL certification for the CZ Series and compliance for Ordinary/Non-Hazardous Locations provide verified safety and performance, helping you meet regulatory requirements without overdesign. By aligning with Roughneck hardware, it simplifies procurement, improves uptime, and enables standardization across power and signal distribution in data centers, manufacturing lines, and process plants.
Product Information
Extended Description
CZP-24-371-PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 18A, Male, #16 AWG, Crimp, Pin, 24 shell
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-24-371-PN
Product Length/Depth
2.42 in
Product Height
3 in
Product Width
3 in
Product Weight
0.85 lb
UPC
662276429277
Area classification
Ordinary/Non-Hazardous Locations
Shell size
24
Contact size
#16 AWG
Amperage Rating
18 A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Eaton Specification Sheet - CZP-24-371-PN
Eaton Specification Sheet - CZP-24-371-PN
Feature: Shell size 24 delivers a compact footprint without compromising contact density. Business Impact: Frees cabinet real estate and streamlines harness routing, reducing panel cost and installation time. Application: data and control wiring in space-constrained industrial panels. Feature: Contact size #16 AWG with crimp termination ensures reliable, field-installable terminations. Business Impact: minimizes contact resistance, improves vibration resistance, and lowers field rework. Application: power and signal paths in Roughneck connectors. Feature: Amperage rating of 18 A provides robust circuit capability. Business Impact: supports typical automation and control loads while maintaining margin for safety and heat dissipation. Application: control panels and motor control centers. Feature: Male pin contact and 2.42 in length with 3 in width and height enable easy mating and routing. Business Impact: simplifies installation, reduces misalignment risk, and accelerates commissioning. Application: multi-pin assemblies in harsh industrial environments. Feature: UL CZ Series certification and Ordinary/Non-Hazardous Location rating give regulatory confidence. Business Impact: supports compliance documentation and dependable sourcing across facilities. Application: standard industrial deployments and cross-site procurement.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-24-371-PN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-24-371-PN?
Enquire Now
FAQs
CZP-24-371-PN is a CZ insert kit designed for Roughneck multi-pin connectors. It uses a 24 shell, male pin contacts, and #16 AWG crimp terminations rated at 18 A. It pairs with other CZ Series inserts and housings to support data, signal, and power applications in ordinary, non-hazardous environments.
Key specifications include an amperage rating of 18 A, contact size #16 AWG, male connector gender, pin-type contacts, crimp termination, shell size 24, and dimensions of 2.42 inches in length with a 3 inch by 3 inch footprint. It is intended for ordinary/non-hazardous locations and paired with Roughneck assemblies.
No. The CZP-24-371-PN is specified for Ordinary/Non-Hazardous Locations. For hazardous environments, select a CZ Series insert that carries the appropriate certifications and location ratings to meet your safety requirements.
Official documentation includes the Eaton specification sheet for CZP-24-371-PN, installation sheets (IF 1688) for Roughneck multi-pin connectors, and UL certification references for the CZ Series. Access these from Eaton’s literature section and the UL database to ensure correct mating and compliant installations.
Crimp termination delivers secure, repeatable connections with good current carrying capacity and vibration resistance, reducing field failures. When used with the 24 shell and #16 AWG contacts, it streamlines field assembly, accelerates commissioning, and supports reliable power and signal distribution in demanding industrial environments.
