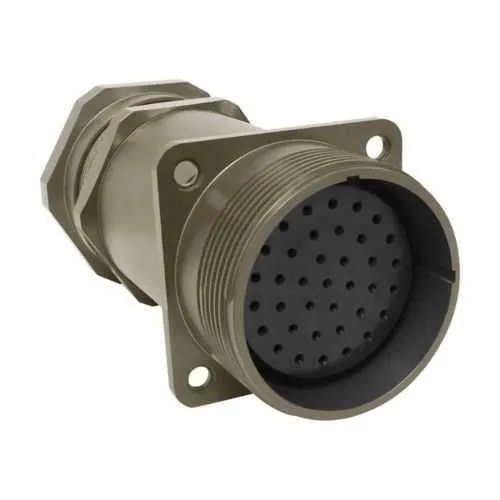

Eaton Crouse-Hinds CZP-24-371-SN Insert Kit - UL CZ Series
Part Number: CZP-24-371-SN
Quick Summary
CZP-24-371-SN Roughneck CZ insert kit provides rugged, 18 A, female socket connections for 24-shell assemblies in harsh industrial environments. Engineers often wrestle with field failures and slow rework when mating multiple pin configurations, which this insert kit helps prevent by delivering a consistent interface and reliable crimp terminations. UL certification for the CZ Series and area classification for Ordinary/Non-Hazardous Locations reinforce compliance in standard plant settings, reducing regulatory risk. The kit also aligns with #16 AWG conductors and a 24-shell format, delivering a straightforward path to dependable power, signal, and control connectivity across machinery and panel installations.
Product Information
Extended Description
CZP-24-371-SN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 18A, Female, #16 AWG, Crimp, Socket, 24 shell
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-24-371-SN
Product Length/Depth
2.42 in
Product Height
2 in
Product Width
2 in
Product Weight
0.85 lb
UPC
662276429284
Area classification
Ordinary/Non-Hazardous Locations
Shell size
24
Contact size
#16 AWG
Amperage Rating
18 A
Connector gender
Female
Contact type
Socket
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors UL certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Multi-pin Connectors
Multi-pin Connectors
Feature → Business Impact → Application: The CZP-24-371-SN uses a 24-shell CZ insert with #16 AWG contacts and 18 A capacity, delivering robust power and signal distribution for heavy equipment. This translates to fewer field terminations, improved reliability, and measurable downtime reductions in manufacturing lines and process automation. Application: Ideal for rough industrial environments where consistent mating and secure crimp termination are required in data, signal, and control circuits. Feature → Business Impact → Application: Female socket contacts and crimp termination provide quick, field-friendly assembly with high contact reliability, which lowers maintenance time and training needs. Use this in control panels and remote I/O enclosures to streamline commissioning. Feature → Business Impact → Application: 24-shell shell size and compact dimensions (2.42 in L × 2 in H × 2 in W) enable compact, modular layouts in Roughneck assemblies, reducing panel footprint and enabling easier retrofits. Use in tight-spaces where serviceability matters. Feature → Business Impact → Application: UL CZ Series certification and Ordinary/Non-Hazardous location classification simplify compliance and approval processes for standard industrial installations, enabling faster procurement cycles and site acceptance. Feature → Business Impact → Application: Documentation including installation sheets and literature supports faster onboarding and less ambiguity during installation, particularly when coordinating with maintenance teams and contractors. This is valuable for OEMs and facilities with multi-vendor integration needs.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-24-371-SN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-24-371-SN?
Enquire Now
FAQs
The CZP-24-371-SN is designed for Roughneck CZ multi-pin connectors with a 24-shell format and #16 AWG contacts. It uses crimp termination on a female socket, suitable for standard control panels and data/power applications in ordinary locations. It integrates with other CZ inserts to support modular, scalable connector assemblies in industrial environments.
Key specs include an amperage rating of 18 A, shell size 24, and contact size #16 AWG. The connector gender is Female and the contact type is Socket with Crimp termination. These parameters support reliable power and signal transfer in medium-duty industrial applications, while maintaining compatibility with Roughneck 24-shell systems.
Yes. The CZP-24-371-SN is suited for data, signal, and control circuits in ordinary/non-hazardous locations, as indicated by its area classification. Its 18 A rating and 24-shell configuration provide a robust interface for intermediate loads, making it suitable for panel assemblies, machine control, and remote I/O networks in non-hazardous environments.
The CZP-24-371-SN is associated with UL certification for the CZ Series, reflecting compliance for industrial connectors used in data, signal, control, and power applications. It carries an Ordinary/Non-Hazardous location classification, helping ensure regulatory alignment for standard plant installations and OEM applications.
The kit supports quick, reliable crimp terminations and a consistent interface, reducing field troubleshooting and rework. This translates to faster commissioning, lower labor costs during maintenance, and improved uptime. The UL CZ Series certification also reduces compliance-related delays, contributing to a favorable total cost of ownership over the product lifecycle.
