Eaton CZP-28-339-PN Roughneck CZ insert kit - 30A
Part Number: CZP-28-339-PN
Quick Summary
CZP-28-339-PN insert kit provides reliable 30A pin-and-crimp connections for Roughneck CZ multi-pin connectors in rugged industrial environments. Field assemblies often suffer from loose terminations and corrosion, leading to downtime and costly repairs. This insert kit aligns with Ordinary/Non-Hazardous Locations area classification and is supported by Canadian certification documentation for CZ series. Designed for compatibility with #12 AWG conductors and 28-shell inserts, it offers a robust, quick-replace solution that reduces maintenance time and extends service life.
Product Information
Extended Description

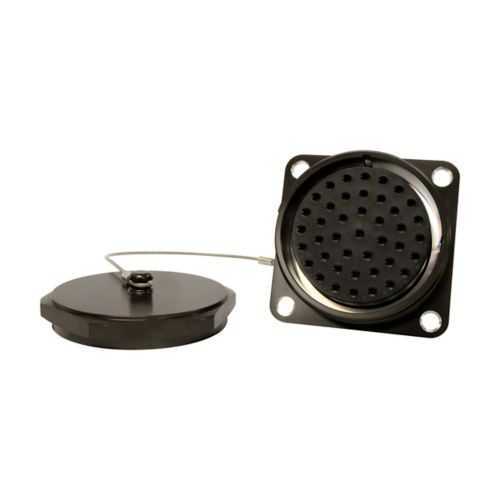

CZP-28-339-PN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 30A, Male, #12 AWG, Crimp, Pin, 28 shell
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-28-339-PN
Product Length/Depth
2.42 in
Product Height
2 in
Product Width
2 in
Product Weight
0.85 lb
UPC
662275353351
Area classification
Ordinary/Non-Hazardous Locations
Shell size
28
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Male
Contact type
Pin
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Multi-pin Connectors
Multi-pin Connectors
Feature: High current capability at 30A for rugged industrial wiring. Business impact: Enables reliable power and control circuits without overheating, reducing unplanned downtime. Application: Heavy machinery, conveyors, and packaging lines that demand dependable load handling. Feature: Crimp termination for #12 AWG conductors. Business impact: Delivers consistent crimp quality, minimizes rework, and improves field reliability. Application: Power and signal wiring in harsh environments where vibration can loosen connections. Feature: Compact footprint with 2.42 in length and 2 in by 2 in profile, weight 0.85 lb. Business impact: Easier installation in tight panels and space-constrained equipment, reducing panel size and service complexity. Application: Enclosures with limited mounting depth in industrial automation. Feature: Shell size 28, connector gender Male with Pin contact. Business impact: Standardized components improve part availability and trainer familiarity, cutting repair time. Application: Multi-pin Roughneck CZ assemblies in control cabinets and outdoor facilities. Feature: Area classification Ordinary/Non-Hazardous Locations and Canadian CZ series certification support. Business impact: Streamlines compliance and supplier audits, lowering regulatory risk. Application: Industrial facilities relying on non-hazardous area installations and cross-border sourcing. Feature: Rich documentation and installation resources. Business impact: Speeds procurement and technician onboarding, reduces misinterpretation. Application: Field installs and maintenance programs in mining, manufacturing, and processing plants.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-28-339-PN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-28-339-PN?
Enquire Now
FAQs
The CZP-28-339-PN insert kit fits Roughneck CZ multi-pin connectors with a 28-shell insert and is designed for #12 AWG conductors terminated by crimp. For installation, prepare conductors, crimp the #12 AWG pins with a proper crimp tool, insert the pins into the 28-shell housing, and verify continuity and secure fit. Refer to IF 1688 instruction sheets and the Roughneck multipin catalog for step-by-step guidance.
Yes. The CZP-28-339-PN insert kit is specified for Ordinary/Non-Hazardous Locations, aligning with area classification requirements. This makes it appropriate for standard industrial environments, manufacturing floors, and non-explosive settings. Always confirm site-specific regulations and cross-check with the CZ series Canadian certification documents when auditing compliance.
Key specs are a 30A amperage rating, shell size 28, contact size #12 AWG, connector gender Male, contact type Pin, and contact termination Crimp. The product footprint is 2.42 inches in length with a 2x2 inch horizontal/vertical profile, and the unit weighs 0.85 lb. These specs guide current capability, wiring compatibility, and space planning in control panels.
Technical documentation is available through Eaton’s Roughneck resources, including brochures for Roughneck multi-pin and single-pole connectors, the Roughneck heavy industrial catalog page, Canadian certification listings for the CZ Series, IF 1688 instruction sheets, and the multipin connectors data sheet. These assets support redesigns, training, and procurement decisions.
Using the CZP-28-339-PN insert kit delivers measurable benefits: robust 30A performance supports high-load circuitry, standardized 12 AWG crimp terminations reduce installation errors, and the compact 28-shell footprint eases panel design. Compliance with ordinary location classifications and Canadian certification reduces audit risk, while readily available installation docs shorten deployment time and improve field uptime.
