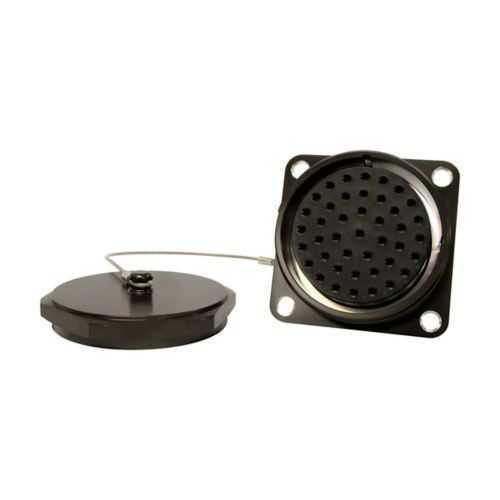

Eaton CZP-28-339-SN Roughneck Insert Kit - Non-Hazardous
Part Number: CZP-28-339-SN
Quick Summary
CZP-28-339-SN Roughneck insert kit provides rugged 30A power connectivity for industrial multi-pin connectors used in heavy electrical distribution. Users often struggle with reliable terminations in harsh environments, and this insert kit delivers stable crimped connections that resist vibration and moisture. Roughneck Canadian certification (CZ Series) supports compliance in data, signal, control, and power applications, with area classification for Ordinary/Non-Hazardous Locations. This solution complements existing CZ series hardware while streamlining procurement and field installation; its compact form factor and 28 shell size support efficient, space-conscious wiring in manufacturing plants and utility sites. For engineers and maintenance teams, it translates to fewer field re-terminations and more predictable uptime across demanding applications.
Product Information
Extended Description
CZP-28-339-SN Eaton Crouse-Hinds: Eaton Crouse-Hinds series Roughneck CZ insert kit, 30A, Female, #12 AWG, Crimp, Socket, 28 shell
Product Name
Eaton Crouse-Hinds series Roughneck CZ insert kit
Catalog Number
CZP-28-339-SN
Product Length/Depth
2.5 in
Product Height
0.1 in
Product Width
0.1 in
Product Weight
1 lb
UPC
662275353368
Area classification
Ordinary/Non-Hazardous Locations
Shell size
28
Contact size
#12 AWG
Amperage Rating
30A
Connector gender
Female
Contact type
Socket
Contact termination
Crimp
Roughneck Multi-pin and Single Pole Connectors brochure
Roughneck Heavy Industrial Multi-pin and Single Pole Connectors catalog page
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
Roughneck Heavy Industrial Multi-pin Connectors Canadian certification (CZ Series)
IF 1688 - Roughneck Non-hazardous Multi-pin Connector
Eaton Specification Sheet - CZP-28-339-SN
Eaton Specification Sheet - CZP-28-339-SN
Feature: 30A amperage rating paired with a 28 shell and #12 AWG contact size ensures a robust, high-current connection suitable for demanding power distribution tasks. Business Impact: Supports reliable operation under load with minimized risk of overheating or contact fatigue, reducing unplanned downtime. Application: Heavy industrial motors, control panels, and machine builds where consistent performance is critical. Feature: Socket contact terminated by crimp provides strong, vibration-resistant connections that resist loosening in dynamic environments. Business Impact: Improves long-term integrity and reduces maintenance cycles, lowering total cost of ownership. Application: On-site panel assemblies and field terminations exposed to movement or vibration. Feature: Compact 2.5 in length and 0.1 in height/width footprint enables installation in tight enclosures and crowded control panels. Business Impact: Facilitates faster wiring, reduces cabinet footprint, and simplifies retrofits. Application: Retrofit projects and space-constrained electrical rooms. Feature: Area classification Ordinary/Non-Hazardous Locations ensures suitability for typical plant and office-adjacent environments. Business Impact: streamlines compliance and approval processes, expediting project timelines. Application: Data centers, manufacturing floors, and facilities with non-hazardous classifications. Feature: Compatibility with Roughneck CZ series components and standard crimp tooling supports easy integration and repeatable quality. Business Impact: minimizes learning curves for technicians and ensures consistent mating performance. Application: New installations and spare-part kits for ongoing maintenance programs. Feature: Canadian certification lineage (CZ Series) supports regulatory alignment for cross-border projects and multinational deployments. Business Impact: reduces certification delays and procurement risk, enabling smoother supply-chain operations. Application: Global projects with Canadian compliance requirements and multi-site rollouts.
Get a Quick Quote for a Eaton Crouse-Hinds CZP-28-339-SN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds CZP-28-339-SN?
Enquire Now
FAQs
To install CZP-28-339-SN, select a compatible Roughneck CZ housing, prepare the #12 AWG conductors with the appropriate strip length, apply the recommended crimp terminal, and use a supported crimping tool to achieve full engagement. Verify the crimp joint for insulation grip and conductor retention, then mate the socket to the corresponding CZ insert, ensuring proper alignment for reliable operation.
Yes. The CZP-28-339-SN is designed as a Roughneck CZ insert kit with a 28 shell and #12 AWG socket intended for ordinary/non-hazardous locations, matching standard CZ-series hardware for seamless compatibility and reliable performance in typical manufacturing and processing facilities.
Key specs include a 30A amperage rating, shell size 28, contact size #12 AWG, connector gender Female, contact type Socket, and crimp termination. This combination supports robust high-current connections in compact form factors suitable for industrial power distribution.
The kit aligns with Roughneck CZ series Canadian certification for data, signal, control and power applications, and is rated for Ordinary/Non-Hazardous Locations. This helps with regulatory compliance in cross-border projects and standard plant environments.
Using the CZP-28-339-SN with crimped socket contacts provides stable, vibration-resistant terminations that reduce re-work and field failures. This translates to lower maintenance costs, shorter downtime, and faster panel assembly, delivering measurable ROI in ongoing production and capital projects.
