Eaton DL101 JG OF AU Legend Plate - Hazardous Locations

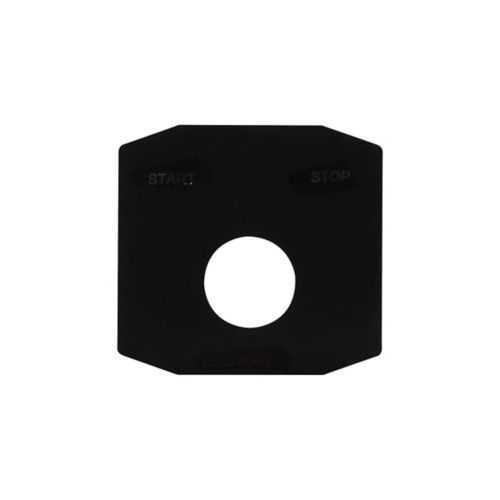

Part Number: DL101 JG OF AU
Quick Summary
The DL101 JG OF AU Legend Plate is a rugged label interface for FlexStation DL control in hazardous locations. Engineers often contend with fading labels and downtime when labeling in harsh environments. This plate's NEC/CEC compliance and NEMA ratings help ensure safety and uptime. It aligns with NEC/CEC standards and NEMA 7/12, 3R, 9 ratings for hazardous service. Used with single-hole covers, it streamlines installation and sustains legibility. In business terms, this means reduced maintenance cost and faster corrective action. The legend plate provides essential visibility for operators and technicians performing Jog-Off-Auto sequencing. With dimensions tuned to FlexStation hooks, it supports durable, clean labeling in space-constrained panels. Administratively, choosing a UL-listed, class-rated label solution helps meet internal QA and external audits.
Product Information
Extended Description
DL101 JG OF AU Eaton Crouse-Hinds: Eaton Crouse-Hinds series FlexStation DL legend plate, Jog-Off-Auto, Used with single-hole covers
Product Name
Eaton Crouse-Hinds series FlexStation DL legend plate
Catalog Number
DL101 JG OF AU
Product Length/Depth
2.25 in
Product Height
1.5 in
Product Width
0.01 in
Product Weight
0.19 lb
UPC
662276289581
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class III Class I, Zone 2 Class II, Division 2 Class II, Division 1 Class I, Division 1 Class I, Division 2 Class I, Zone 1
NEMA Rating
7 12 3R 9
Legend plate inscription
Jog-Off-Auto
Type
Used with single-hole covers
FlexStation Explosionproof Control Station Components catalog page
FlexStation Explosionproof Control Station Components UL certification
FlexStation Explosionproof Control Station Components UL certification
FlexStation Explosionproof Control Station Components UL certification
IF 1418 - FlexStation Series Control Stations
IF 1418 - FlexStation Series Control Stations
IF 1418 - FlexStation Series Control Stations
Eaton Specification Sheet - DL101 JG OF AU
Rugged legend plate construction with the Jog-Off-Auto inscription provides clear operator cues inside harsh environments. This feature reduces mis-operation and downtime by delivering legible, unambiguous labeling even in dusty, oily, or vibration-prone panels. The plate is designed to fit Eaton Crouse-Hinds FlexStation DL control stations, ensuring a seamless integration with existing hardware. In practice, maintenance teams report faster sequence changes and fewer labeling errors during jog-off-auto transitions, which translates to safer starts and quicker troubleshooting.Compact and purpose-built dimensions—2.25 in depth, 1.5 in height, and 0.01 in width—simplify retrofits and keep panel layouts tidy. Weighing 0.19 lb, it adds minimal load and enables quick field replacement without overhauling surrounding hardware. The plate’s use with single-hole covers reduces the diversity of parts required for Legacy FlexStation installations.Regulatory compliance drives safer operation and audit readiness. The legend plate aligns with NEC/CEC standards and carries NEMA ratings such as 7, 12, 3R, and 9, confirming suitability for hazardous and classified locations. This reduces risk and accelerates approvals in industries including oil and gas, chemical processing, and mining, where consistent labeling is essential for operator training and maintenance.Procurement and documentation benefits stem from UL certification references and direct catalog integration. The DL101 JG OF AU is supported by official Eaton and UL materials, enabling straightforward verification during vendor qualification and change control. Access to the product page, installation sheets, and datasheets simplifies training for technicians and speeds stocking decisions.Designed to work with single-hole covers, the plate supports straightforward installation and asset management across FlexStation DL series. Operators gain consistent labeling across machines, while maintenance teams appreciate predictable replacement cycles and reduced panel downtime during routine label updates.
