Eaton Crouse-Hinds DL101 ST Legend Plate - Hazardous Locs
Part Number: DL101 ST
Quick Summary
DL101 ST legend plate for FlexStation DL control stations provides clear labeling in hazardous environments. Engineers often struggle with faded or unreadable labels that withstand dust, moisture, and vibration, leading to mis-wiring risks. This plate carries NEC/CEC compliance and hazardous-location ratings, plus compatible NEMA configurations, ensuring safe operation across Class I and II installations. Its compact 2.25 in length, 1.5 in height, and minimal 0.01 in plate thickness support quick field retrofits and tidy panel aesthetics. Designed to partner with single-hole covers, it streamlines inventory and procurement while supporting fast, compliant upgrades for automation projects.
Product Information
Extended Description

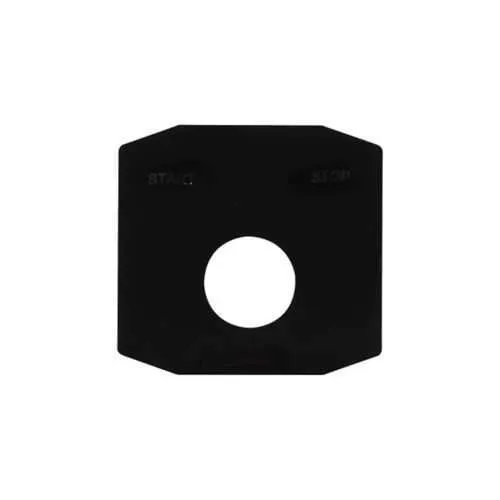

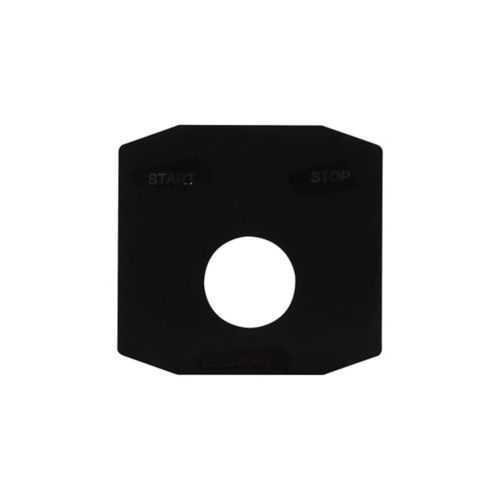

DL101 ST Eaton Crouse-Hinds: Eaton Crouse-Hinds series FlexStation DL legend plate, Start, Used with single-hole covers
Product Name
Eaton Crouse-Hinds series FlexStation DL legend plate
Catalog Number
DL101 ST
Product Length/Depth
2.25 in
Product Height
1.5 in
Product Width
0.01 in
Product Weight
0.19 lb
UPC
662276699502
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Zone 2 Class II, Division 1 Class III Class I, Division 2 Class I, Zone 1 Class I, Division 1 Class II, Division 2
NEMA Rating
9 12 7 3R
Legend plate inscription
Start
Type
Used with single-hole covers
FlexStation Explosionproof Control Station Components catalog page
FlexStation Explosionproof Control Station Components UL certification
FlexStation Explosionproof Control Station Components UL certification
FlexStation Explosionproof Control Station Components UL certification
IF 1418 - FlexStation Series Control Stations
IF 1418 - FlexStation Series Control Stations
IF 1418 - FlexStation Series Control Stations
Eaton Specification Sheet - DL101 ST
Feature: Compact footprint fits FlexStation DL panels without crowding or interference. Business Impact: Reduces panel side clearance requirements and simplifies field upgrades, saving installation time and labor costs. Application: Ideal for new builds and retrofits in limited-space control enclosures. Feature: Durable legend plate inscription with Start labeling. Business Impact: Improves readability under dust, oil mist, and vibration conditions, lowering mislabeling risk and maintenance errors. Application: Critical in explosion-protected environments and high-duty automation lines. Feature: Hazardous/Classified area certification and NEC/CEC compliance. Business Impact: Keeps systems compliant with industry standards, reducing regulatory exposure and audit findings. Application: Suitable for Class I/Zone 2, Class II/Division 1, and related installations. Feature: NEMA ratings compatibility (9, 12, 7, 3R). Business Impact: Ensures robustness against weather, corrosion, and impact in harsh locations, extending panel life. Application: Explosion-proof control stations and outdoor or harsh indoor environments. Feature: Compatibility with single-hole covers and FlexStation DL components. Business Impact: Enables quick swaps and standardized parts usage, lowering stocking costs and downtime. Application: Maintains consistent labeling across the system and simplifies maintenance.
