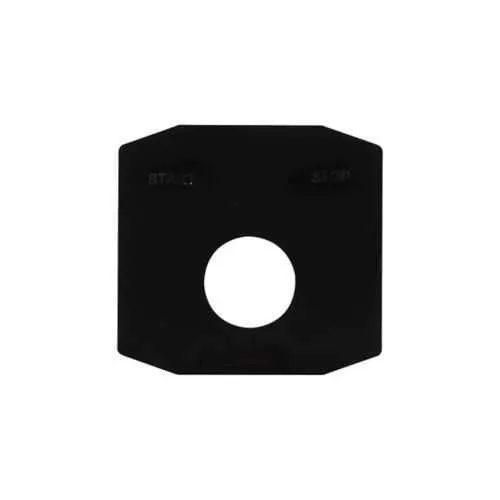

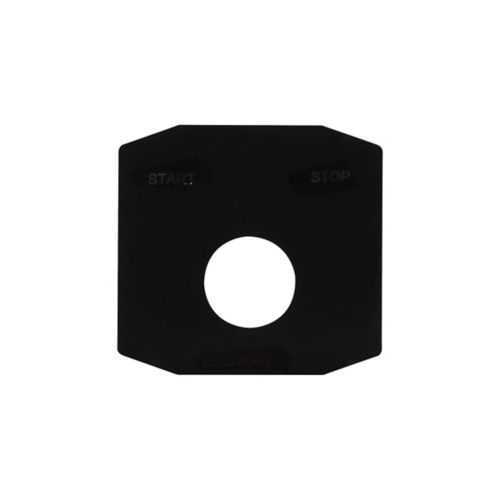

Eaton DL130 FlexStation Legend Plate - Hazardous Locations
Part Number: DL130
Quick Summary
DL130 legend plate for FlexStation is designed to label control stations in hazardous locations with crisp, durable inscriptions. Manufacturers often struggle with illegible labels that wear in harsh environments, leading to operator errors and downtime. This DL130 delivers NEC/CEC compliance and hazardous location ratings, including Class I Division 1 and 2, Zone 1 and 2, plus NEMA 9/3R/12/7 suitability, ensuring safe, standards-aligned labeling. Its compact footprint and single-hole cover compatibility simplify installation, enabling faster commissioning and reduced maintenance overhead while improving process traceability and asset management in industrial environments.
Product Information
Extended Description
DL130 Eaton Crouse-Hinds: Eaton Crouse-Hinds series FlexStation DL legend plate, Forward-Reverse, Used with single-hole covers
Product Name
Eaton Crouse-Hinds series FlexStation DL legend plate
Catalog Number
DL130
Product Length/Depth
2.25 in
Product Height
1.5 in
Product Width
0.01 in
Product Weight
0.01 lb
UPC
662276095045
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class I, Division 1 Class I, Zone 2 Class I, Zone 1 Class II, Division 1 Class III
NEMA Rating
9 3R 12 7
Legend plate inscription
Forward-Reverse
Type
Used with single-hole covers
FlexStation Explosionproof Control Station Components catalog page
FlexStation Explosionproof Control Station Components UL certification
FlexStation Explosionproof Control Station Components UL certification
FlexStation Explosionproof Control Station Components UL certification
IF 1418 - FlexStation Series Control Stations
IF 1418 - FlexStation Series Control Stations
IF 1418 - FlexStation Series Control Stations
Eaton Specification Sheet - DL130
Feature → Business Impact → Application: The DL130 legend plate provides a durable, clearly legible inscription for Forward-Reverse labeling on FlexStation control stations, reducing miscommunication during start/stop operations. This directly lowers maintenance time and improves safety compliance in hazardous locations. Feature‑rich compatibility with single-hole covers offers fast retrofits and streamlined panel upgrades in existing systems. Application: use in any hazardous or classified location where NEC/CEC compliance and reliable visibility are required, such as chemical processing, oil & gas, and offshore facilities. Feature → Reduced downtime → Operational efficiency: The plate’s compact dimensions (2.25 in length, 1.5 in height, 0.01 in width) and light weight (0.01 lb) simplify retrofits in tight panels, cutting installation time and downtime costs. Feature → Compliance assurance → Risk management: With NEC hazardous ratings spanning Class I Divisions 1/2 and Zones 1/2, plus Class II/III allowances and NEMA 9/3R/12/7, the DL130 helps ensure labeling meets rigorous regulatory standards, reducing audit findings. Feature → Easy documentation → OEM support: The included UPC 662276095045 and catalog reference DL130 streamline procurement and asset tracking, improving supply chain reliability and after-sales service for explosion‑proof control stations.
Get a Quick Quote for a Eaton Crouse-Hinds DL130
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DL130?
Enquire Now
FAQs
To install the DL130, detach the existing pressure plate or cover, align the legend inscription to face the operator, and secure it to the single-hole cover mounting point used by FlexStation. Confirm the inscription Forward-Reverse is clearly visible, then reattach the cover. The DL130 is designed for quick retrofits, reducing commissioning time in tight control panels and hazardous areas.
DL130 supports NEC/CEC standards and hazardous location ratings including Class I, Division 1 and Division 2; Class I, Zone 1 and Zone 2; Class II, Division 1 and 2; and Class III. It carries NEMA ratings 9, 3R, 12, and 7, enabling safe operation and compliance in hazardous environments commonly found in oil, gas, chemical, and mining applications.
The DL130 measures 2.25 inches in length (depth), 1.5 inches in height, and 0.01 inches in width, weighing 0.01 pounds. It is catalog number DL130 and is designed to be used with single-hole covers within the FlexStation series, enabling straightforward integration and minimal panel disruption during upgrades.
DL130 provides a durable, legible label for Forward-Reverse control actions, which reduces operator errors during routine maintenance and testing. Its NEC/CEC compliance and multiple NEMA ratings ensure regulatory alignment for hazardous locations, while single-hole cover compatibility accelerates replacements and panel labeling without extensive downtime or rewiring.
You can access the FlexStation DL130 datasheet and installation resources from Eaton’s catalog pages and instruction sheets: the FlexStation catalog page, UL certification references, and IF 1418 instruction sheets are available alongside the Eaton specification sheet for DL130, providing installation guidance, compliance details, and certification evidence for hazardous locations.
