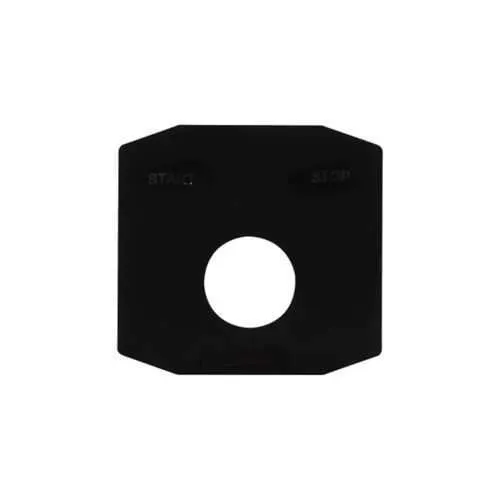

Eaton Crouse-Hinds DL133 FlexStation legend plate - HazLoc
Part Number: DL133
Quick Summary
Eaton Crouse-Hinds DL133 legend plate is a compact labeling accessory for FlexStation explosionproof control stations used in hazardous locations. Labeling panels in harsh industrial environments often sag, peel, or become illegible, causing maintenance delays and safety risks. It is certified for NEC/CEC compliance and hazardous locations, including Class I, Zone 1 and Class II, Division 1 ratings, with a robust NEMA 12/3R/7/9 protection profile. The DL133 supports reliable, long-lasting labeling within explosionproof enclosures, helping maintenance teams avoid mislabeling and downtime. Built for the FlexStation family, this legend plate delivers durable, up-down inscriptions that speed identification and support compliant, cost-effective panel labeling.
Product Information
Extended Description
DL133 Eaton Crouse-Hinds: Eaton Crouse-Hinds series FlexStation DL legend plate, Up-Down, Used with single-hole covers
Product Name
Eaton Crouse-Hinds series FlexStation DL legend plate
Catalog Number
DL133
Product Length/Depth
2.25 in
Product Height
1.5 in
Product Width
0.01 in
Product Weight
0.01 lb
UPC
662276095069
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Zone 1 Class II, Division 1 Class III Class I, Zone 2 Class I, Division 2 Class II, Division 2 Class I, Division 1
NEMA Rating
12 3R 7 9
Legend plate inscription
Up-Down
Type
Used with single-hole covers
FlexStation Explosionproof Control Station Components catalog page
FlexStation Explosionproof Control Station Components UL certification
FlexStation Explosionproof Control Station Components UL certification
FlexStation Explosionproof Control Station Components UL certification
IF 1418 - FlexStation Series Control Stations
IF 1418 - FlexStation Series Control Stations
IF 1418 - FlexStation Series Control Stations
Eaton Specification Sheet - DL133
Feature: Hazardous-location rated design with NEC/CEC compliance and explicit Class I, Zone 1 and Class II, Division 1 ratings. Business Impact: Ensures regulatory alignment and safer operations, reducing compliance risk and downtime. Application: Ideal for FlexStation explosionproof control stations in chemical processing, oil and gas, and mining environments. Feature: Up-Down legend inscription. Business Impact: Improves readability and orientation, minimizing mislabeling during startup and maintenance. Application: Used with single-hole covers on DL133 installations for clear, durable labeling. Feature: NEMA ratings 12, 3R, 7, 9 and rugged construction. Business Impact: Delivers weather, dust, and impact protection that extends service life and lowers replacement costs. Application: Suitable for outdoor enclosures and harsh indoor locations where reliability matters. Feature: Compact 2.25 in length, 1.5 in height, 0.01 in width. Business Impact: Space-efficient labeling that fits tight panel cavities and standard FlexStation backplanes. Application: Easy integration with single-hole cover configurations in compact control stations. Feature: Single-hole cover compatibility. Business Impact: Streamlines installation and future labeling upgrades, reducing field labor. Application: Specifically designed for use with FlexStation DL133 legend plates in explosionproof control stations. Industry context: Comprehensive documentation and installation guidance are available, including UL certification references and installation sheets such as IF 1418 and the DL133 specification sheet to support fast commissioning.
Get a Quick Quote for a Eaton Crouse-Hinds DL133
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DL133?
Enquire Now
FAQs
DL133 installs with standard FlexStation single-hole covers as a direct labeling upgrade. Start by removing the cover, align the legend plate over the opening, and secure with the existing hardware. The Up-Down inscription provides orientation cues for smooth operation. Ensure the plate is firmly seated to maintain NEMA-rated protection and legible labeling in hazardous locations.
It carries NEC/CEC compliance and hazardous location ratings including Class I, Zone 1, Class II, Division 1, Class III, and Zone 2, with NEMA ratings 12, 3R, 7, 9. These certifications support compliance in chemical, oil & gas, and mining environments and align with UL listings documented in the FlexStation catalog and installation sheets.
Yes, the DL133 legend plate is designed for explosion-proof FlexStation control stations in hazardous areas, including oil and gas facilities. Its Up-Down inscription and single-hole cover compatibility streamline labeling during commissioning and maintenance, while its rugged NEMA protection reduces wear from dust, moisture, and mechanical impact. For projects requiring NEC/CEC and UL referenced documentation, this plate provides verified alignment.
UL certification references for FlexStation components are provided in the DL133 documentation package, including published UL reports and installation instructions. Check the UL pages linked in the downloads for control panels and components used in hazardous locations. Always verify the current version on the manufacturer site to ensure ongoing compliance.
Using the DL133 reduces downtime by improving visibility and orientation, minimzing mislabeling during startup and maintenance. Its durable construction withstands hazardous environments, lowering replacement costs compared with generic plates. Access to specification sheets and installation instructions also accelerates commissioning and minimizes field labor, delivering faster return on investment on large-scale FlexStation deployments.
