Eaton DL137 Legend Plate - FlexStation Hazardous Locations
Part Number: DL137
Quick Summary
The Eaton Crouse-Hinds DL137 legend plate identifies FlexStation Start-Stop controls in hazardous locations. Engineers often struggle with durable, readable labeling inside tight control panels exposed to dust, moisture, and vibration. Certified for NEC/CEC standards and UL-listed for Hazardous Locations, with NEMA ratings 9, 12, 3R and 7, this plate combines safety with reliability. This labeling solution supports explosion-proof FlexStation installations while delivering cost-effective, long-term labeling that reduces maintenance time and human error in harsh environments.
Product Information
Extended Description

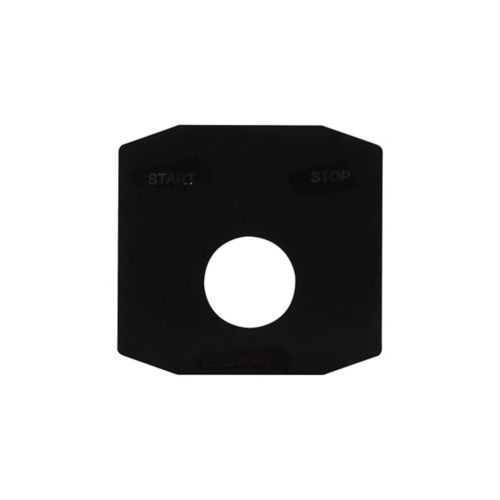

DL137 Eaton Crouse-Hinds: Eaton Crouse-Hinds series FlexStation DL legend plate, Start-Stop, Used with single-hole covers
Product Name
Eaton Crouse-Hinds series FlexStation DL legend plate
Catalog Number
DL137
Product Length/Depth
2.25 in
Product Height
1.5 in
Product Width
0.01 in
Product Weight
0.01 lb
UPC
782274245324
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class III Class II, Division 1 Class II, Division 2 Class I, Zone 2 Class I, Division 1 Class I, Division 2 Class I, Zone 1
NEMA Rating
9 12 3R 7
Legend plate inscription
Start-Stop
Type
Used with single-hole covers
FlexStation Explosionproof Control Station Components catalog page
FlexStation Explosionproof Control Station Components UL certification (Components)
FlexStation Explosionproof Control Station Components UL certification (Components)
FlexStation Explosionproof Control Station Components UL certification (Components)
IF 1358 - Replacing Plastic Buttons on EDS Series
IF 1358 - Replacing Plastic Buttons on EDS Series
IF 1358 - Replacing Plastic Buttons on EDS Series
Eaton Specification Sheet - DL137
Feature: Compact footprint and precise dimensions (2.25 in length, 1.5 in height, 0.01 in width) with a Start-Stop inscription. Business impact: Enables clear, unobtrusive labeling within tight control panel real estate, reducing misoperation and panel clutter. Application: Ideal for FlexStation control stations using single-hole covers in hazardous locations. Feature: Robust compliance profile (NEC/CEC, UL components, NEMA ratings 9, 12, 3R, 7). Business impact: Accelerates pass-through approvals and lowers regulatory risk while supporting maintenance planning. Application: Suitable for facilities requiring strict hazardous-location labeling and certification traceability. Feature: Durable construction for harsh environments. Business impact: Improves uptime by withstanding dust, moisture, and vibration; reduces replacement costs. Application: Explosion-proof installations and outdoor or rugged indoor panels. Feature: Clear legend options with Start-Stop inscription. Business impact: Enhances operator clarity, lowering error rates during Start/Stop operations. Application: Start-Stop control labeling on FlexStation DL legend plates. Feature: Easy compatibility with single-hole covers and FlexStation catalog pages. Business impact: Streamlines procurement and field installation; reduces install time. Application: Retrofit and new builds using FlexStation explosionproof components and related installation guides.
Get a Quick Quote for a Eaton Crouse-Hinds DL137
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DL137?
Enquire Now
FAQs
The DL137 is designed for use with FlexStation single-hole covers and measures 2.25 in long, 1.5 in high, and 0.01 in thick. When installing, ensure the panel location meets hazardous-location requirements and follow Eaton installation instructions. Use appropriate mounting hardware and verify compliance with NEC/CEC standards during setup.
DL137 supports NEC/CEC standards and NEC hazardous ratings including Class I, II; Division 1 and 2; and Zone 1/2. It is UL-listed for components and carries NEMA ratings 9, 12, 3R, and 7. This combination provides regulatory confidence for installations in hazardous environments.
Yes. The DL137 legend plate is specifically designed for FlexStation DL systems and is used with single-hole covers. It complements explosion-proof control station components, streamlining labeling and improving readability in harsh settings.
The plate provides durable Start-Stop labeling with a compact footprint, reducing panel clutter and misoperation. Its certified hazardous-location ratings support safer maintenance practices, while its UL/NEMA compliance helps minimize regulatory follow-up, lowering total cost of ownership over time.
Official Eaton resources include the FlexStation catalog page and the DL137 specification sheet. You can also access UL certification pages and installation sheets such as IF 1358 for component replacement guidance and compliance documentation to support procurement and field installation.
