Eaton DL196 Legend Plate - Hazardous Locations (NEC/CEC)
Part Number: DL196
Quick Summary
The Eaton DL196 legend plate provides compact labeling for FlexStation DL control stations in hazardous locations. Keeping clear, durable operator labels in tough environments is a common reliability bottleneck that drives downtime and maintenance costs. It carries NEC/CEC-compliant hazardous location ratings, including Class I zones and divisions, Class II and Class III considerations, and NEMA ratings such as 12, 3R, 9, and 7. With its single-hole cover compatibility and Start-Emer Stop inscription, it supports fast installation and consistent, auditable labeling, helping you meet regulatory demands while reducing lifecycle costs. This makes it an essential component for safer, more efficient automation in energy, chemical, and manufacturing environments.
Product Information
Extended Description
DL196 Eaton Crouse-Hinds: Eaton Crouse-Hinds series FlexStation DL legend plate, Start-Emer Stop, Used with single-hole covers
Product Name

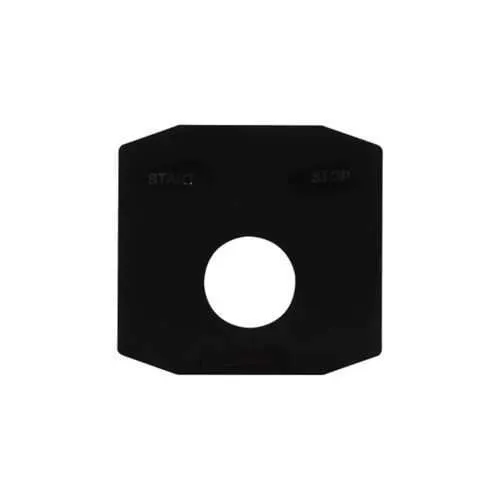

Eaton Crouse-Hinds series FlexStation DL legend plate
Catalog Number
DL196
Product Length/Depth
2.25 in
Product Height
1.5 in
Product Width
0.01 in
Product Weight
0.01 lb
UPC
662276095298
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class III Class II, Division 1 Class I, Zone 1 Class I, Division 1 Class I, Zone 2 Class II, Division 2
NEMA Rating
12 3R 9 7
Legend plate inscription
Start-Emer Stop
Type
Used with single-hole covers
FlexStation Explosionproof Control Station Components catalog page
FlexStation Explosionproof Control Station Components Canadian certification
FlexStation Explosionproof Control Station Components Canadian certification
FlexStation Explosionproof Control Station Components Canadian certification
IF 1358 - Replacing Plastic Buttons on EDS Series
IF 1358 - Replacing Plastic Buttons on EDS Series
IF 1358 - Replacing Plastic Buttons on EDS Series
Eaton Specification Sheet - DL196
Feature: Start-Emer Stop inscription on the legend plate provides immediate operator guidance. Benefit: Reduces misoperation and training time, improving first-time startup reliability. Application: Ideal for FlexStation DL control stations in hazardous locations where clear start/stop labeling is critical. Feature: Designed for use with single-hole covers. Benefit: Simplifies retrofits and field installation, cutting commissioning time and minimizing panel alterations. Application: Quick upgrades on existing explosionproof panels without extensive wiring changes. Feature: Broad compliance footprint with NEC/CEC standards and hazardous location ratings. Benefit: Ensures regulatory compliance and audit readiness, reducing risk and potential downtime. Application: Suitable for oil/gas, chemical, and mining facilities requiring robust hazardous location labeling. Feature: Compact dimensions (2.25 in length, 1.5 in height, 0.01 in width) and light weight (0.01 lb). Benefit: Fits tight panel spaces and lightweight assemblies, enabling dense control layouts. Application: Space-constrained control stations and explosionproof enclosures. Feature: Supports documentation and official resources (spec sheet, installation sheets, and certification reports). Benefit: Accelerates commissioning, standardizes labeling practices, and simplifies maintenance. Application: Field technicians referencing IF1358 and Eaton specification sheets for consistent button and legend updates.
