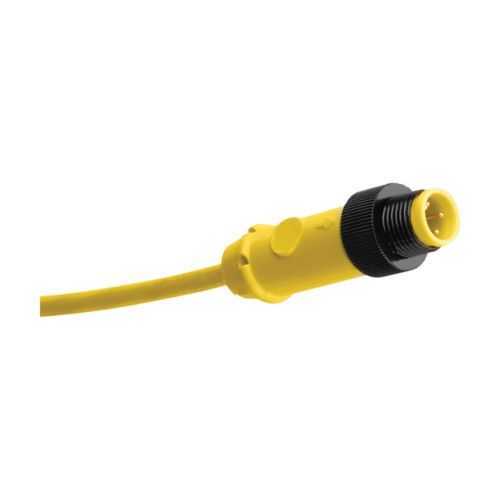

Eaton Crouse-Hinds DM3B2ME010M LynxPOWER Micro-Mini Cordset - IP68
Part Number: DM3B2ME010M
Quick Summary
The DM3B2ME010M LynxPOWER Micro-Mini cordset is a compact DC power and signal connector designed for rugged automation equipment. In harsh facilities, wiring often battles vibration, moisture, and tight spaces, leading to downtime and rework. This cordset delivers IP68 protection and NEC/CEC IEC compliance, backed by NEMA ratings 3, 4, 6P, 13, to support safe operation in ordinary/non-hazardous locations. With a 1 m cable length, #22 AWG conductors, and a single-key, male straight-plug configuration, it enables straightforward installation and reliable field connections. Designed for industrial connectivity solutions, it reduces maintenance needs while improving system uptime and operation predictability for control panels and remote devices.
Product Information
Extended Description
DM3B2ME010M Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset, 4A, #22 AWG, Male, straight plug, external thread, pigtail, Passive, Single key, Zinc, Three-pole, DC, 300 Vdc, 1 m cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset
Catalog Number
DM3B2ME010M
Product Length/Depth
2.44 in
Product Height
0.64 in
Product Width
0.64 in
Product Weight
1 lb
UPC
662275958167
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
3 1 4 6P 13
Ingress protection (IP) ratings
IP68
Connector type
Passive
Type
DC
Number Of Poles
Three-pole
Configuration
Male, straight plug, external thread, pigtail
Gender
Male
Cable/wire size
#22 AWG
Cable length
1 m
Key type
Single key
Amperage Rating
4 A
Voltage rating
300 Vdc
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - DM3B2ME010M
Feature → Business Impact → Application: The LynxPOWER Micro-Mini cordset uses a three-pole DC configuration with a male, straight plug and external thread, pigtail assembly, and 1 m cable length. This delivers a compact footprint and robust mating alignment, reducing installation time and misconnection risk in tight control panels and equipment racks. Business impact: faster commissioning, lower field service costs, and improved system reliability in automation lines; Application: control circuits and power feeds in conveyors, packaging lines, and processing equipment. Feature → IP68 ingress protection paired with zinc housing and passively rated connectors. Business impact: extended outdoor and washdown suitability, lower seal maintenance, and reduced ingress-related faults. Application: washdown areas, outdoor machinery, and damp environments. Feature → 4 A at 300 Vdc with #22 AWG conductors and 1 m length. Business impact: supports compact, high-quality DC control and sensing circuits without oversizing wiring. Application: sensor/actuator interconnects and low-current power distribution in compact panels. Feature → Keyed, external-thread mating and single-key design. Business impact: ensures proper orientation and secure connection, minimizing mis-mating and loosening under vibration. Application: modular automation architectures where quick, reliable field assembly is critical. Feature → Material: zinc housing with passive connector design. Business impact: corrosion resistance and durable mating interfaces, reducing life-cycle replacement costs. Application: harsh industrial environments and equipment that endure exposure to dust, fluids, and temperature variations. Feature → Certifications and standards: NEC/CEC IEC compliance, NEMA ratings 3, 4, 6P, 13, area classification Ordinary/Non-Hazardous Locations. Business impact: simplifies compliance during design validation and regulatory audits, supporting safer installations. Application: general industrial machinery, processing lines, and OEM assemblies requiring certified connectivity.
Get a Quick Quote for a Eaton Crouse-Hinds DM3B2ME010M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DM3B2ME010M?
Enquire Now
FAQs
The DM3B2ME010M uses a three-pole DC configuration with a male, straight plug, external thread, and a 1 m cable. It is designed for the LynxPOWER ecosystem, aligning with standard 22 AWG conductors and a single-key orientation to ensure straightforward, plug-and-play compatibility in compatible panels and devices.
This cordset is rated for 4 A at 300 Vdc, using #22 AWG conductors over a 1 m length. For safe operation, ensure the connected equipment does not exceed these ratings and that the wiring is terminated per manufacturer guidelines to maintain IP68 sealing and performance.
Yes. The cordset carries IP68 ingress protection and is certified for Ordinary/Non-Hazardous Locations, with suitable NEMA ratings (3, 4, 6P, 13) and IEC/NEC/CEC standards. This combination supports reliable operation in washdown areas, damp environments, and exposed industrial settings when properly installed.
Key certifications include IP68 ingress protection, NEMA ratings 3, 4, 6P, 13, and NEC/CEC IEC standards. These ensure dust and water resistance, structural durability, and compliance with electrical codes, facilitating safer designs, regulatory approvals, and smoother supplier audits for industrial machinery and OEM assemblies.
The DM3B2ME010M reduces downtime through robust sealing against dust and moisture, supports faster installation with a compact 1 m cable, and provides reliable DC connectivity at 4 A/300 Vdc. Over time, this translates to lower maintenance costs, fewer field failures, and improved overall equipment effectiveness (OEE) in automated lines.
