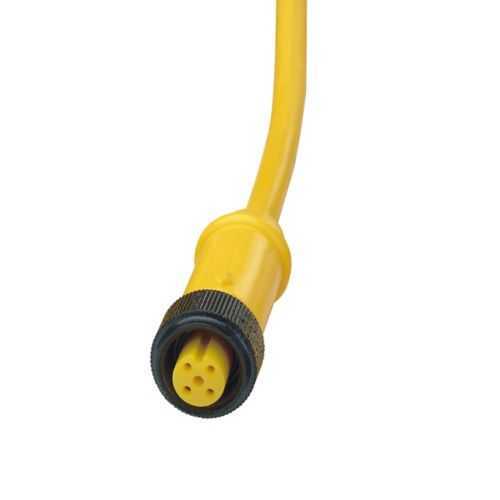

Eaton Crouse-Hinds DM3C2ME020M LynxPOWER Cordset - IP68
Part Number: DM3C2ME020M
Quick Summary
DM3C2ME020M is a LynxPOWER Micro-Mini cordset that provides DC power connections for rugged industrial automation panels. Engineers often grapple with exposed terminations, limited cable lengths, and compatibility gaps between connectors. This unit carries IP68 ingress protection, NEC/CEC IEC compliance, and broad NEMA ratings (1, 3, 4, 6P, 13) for dependable performance. By aligning with LynxPOWER and standard 22 AWG DC cable, it streamlines procurement and reduces maintenance downtime, while supporting scalable control architectures in harsh environments and washdown-ready applications.
Product Information
Extended Description
DM3C2ME020M Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset, 4A, #22 AWG, Female, straight plug, internal thread, pigtail, Passive, Single key, Zinc, Three-pole, DC, 300 Vdc, 2 m cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset
Catalog Number
DM3C2ME020M
Product Length/Depth
80.99 in
Product Height
0.64 in
Product Width
0.64 in
Product Weight
0.18 lb
UPC
662275943552
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
1 3 4 6P 13
Ingress protection (IP) ratings
IP68
Connector type
Passive
Type
DC
Number Of Poles
Three-pole
Configuration
Female, straight plug, internal thread, pigtail
Gender
Female
Cable/wire size
#22 AWG
Cable length
2 m
Key type
Single key
Amperage Rating
4 A
Voltage rating
300 Vdc
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - DM3C2ME020M
Feature: Three-pole, DC power configuration with a passive connector and internal thread. Benefit: Ensures a secure, reliable power path while simplifying installation and reducing mis-wiring risk in busy panels. Application: Control panels and robot interfaces using LynxPOWER ecosystems. Feature: Cable size of #22 AWG with a 2 m length. Benefit: Sufficient flexibility and reach for typical automation layouts, minimizing splices and extra connectors. Application: Machine tool cabinets and distributed I/O zones. Feature: Zinc housing with IP68 protection. Benefit: Superior resistance to dust, moisture, and washdown, translating to higher uptime and lower maintenance costs. Application: Food processing, pharmaceuticals, and outdoor enclosures. Feature: Female, straight plug with internal thread and pigtail; Single key; Three-pole configuration. Benefit: Fast, error-free mating and repeatable connections in tight spaces. Application: Compact automation enclosures and equipment closets. Feature: Compliance and ratings including NEC/CEC IEC, NEMA 1/3/4/6P/13. Benefit: Streamlined regulatory alignment and safer integration with standard industrial equipment. Application: Any non-hazardous environment requiring robust DC power connections within LynxPOWER networks.
Get a Quick Quote for a Eaton Crouse-Hinds DM3C2ME020M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DM3C2ME020M?
Enquire Now
FAQs
Installation begins with verifying the mating orientation of the female, straight-plug connector and ensuring the internal thread is clean. Route the 2 m cable to the controller or device, secure the pigtail where required, and tighten the internal-thread coupling to form a sealed, IP68-rated connection. Test for continuity and insulation resistance after installation.
Yes. The cordset is designed for DC use with a 300 Vdc rating and a 4 A amperage rating, wired as a three-pole passive connector with #22 AWG conductors. It is compatible with LynxPOWER Micro-Mini components and is intended for reliable DC power delivery in standard industrial environments.
The DM3C2ME020M features NEC/CEC IEC standards compliance and broad NEMA ratings of 1, 3, 4, 6P, and 13. It also carries IP68 ingress protection and is intended for Ordinary/Non-Hazardous Locations, making it suitable for non-hazardous industrial applications requiring rugged, compliant connectivity.
The cordset uses a passive three-pole design with a female, straight plug, internal thread, and pigtail, engineered to mate with other LynxPOWER Micro-Mini receptacles and accessories. The single-key design helps prevent misalignment, while the internal thread provides a secure, weather-resistant connection suitable for modular automation systems.
By delivering a robust 4 A, 300 Vdc DC power path in a compact, IP68-rated package, the cordset reduces downtime from failed connections and minimizes maintenance intervals. Its zinc housing and sealed design improve longevity in washdown environments, enabling more reliable automated operation and lower total cost of ownership.
