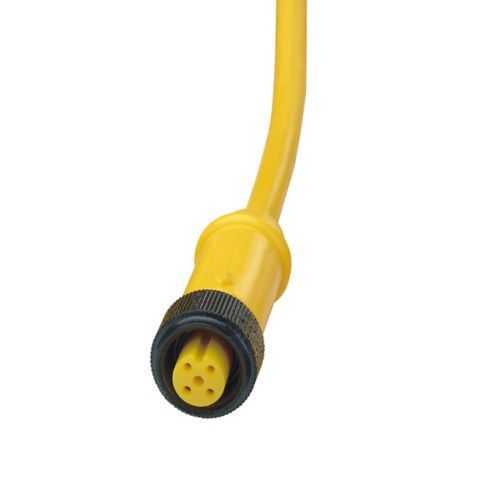

Eaton Crouse-Hinds DM3C2ME050M Micro-Mini Cordset - IP68
Part Number: DM3C2ME050M
Quick Summary
DM3C2ME050M is a LynxPOWER Micro-Mini cordset that provides reliable DC power connections for industrial automation panels and compact machines. Engineers often struggle with small-form connectors that fail under dust, moisture, or miswiring in tight spaces. This cordset is designed to withstand harsh environments while meeting NEC/CEC IEC standards and IP68 protection, delivering durable service life. With a 5 m cable, #22 AWG conductors, and a zinc, three-pole housing, it offers a balanced mix of performance and ease of installation. By harmonizing standard compliance with compact form factor, it helps equipment builders reduce assembly time, simplify regulatory approvals, and improve overall uptime for control cabinets and panel wiring.
Product Information
Extended Description
DM3C2ME050M Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset, 4A, #22 AWG, Female, straight plug, internal thread, pigtail, Passive, Single key, Zinc, Three-pole, DC, 300 Vdc, 5 m cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset
Catalog Number
DM3C2ME050M
Product Length/Depth
199.1 in
Product Height
0.64 in
Product Width
0.64 in
Product Weight
0.44 lb
UPC
662275943576
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
1 3 4 6P 13
Ingress protection (IP) ratings
IP68
Connector type
Passive
Type
DC
Number Of Poles
Three-pole
Configuration
Female, straight plug, internal thread, pigtail
Gender
Female
Cable/wire size
#22 AWG
Cable length
5 m
Key type
Single key
Amperage Rating
4 A
Voltage rating
300 Vdc
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - DM3C2ME050M
Feature: 4 A, 300 Vdc rating delivers reliable power for DC control circuits. Benefit: Ensures safe operation with ample headroom, reducing nuisance trips and voltage drop; Application: control panels and machine logic wiring in non-hazardous environments. Feature: 5 m cable length with #22 AWG conductors provides flexible routing in tight spaces. Benefit: Minimizes junctions, lowers installation time, and supports neater cable management in compact enclosures; Application: panel wiring where distance to processors or sensors is a consideration. Feature: IP68 ingress protection and zinc housing offer rugged sealing and corrosion resistance. Benefit: Extends service life in washdown or dusty facilities, lowering maintenance costs; Application: harsh industrial floors and outdoor-equipped machinery. Feature: Three-pole, passive, female straight plug with internal thread and pigtail configuration plus single-key design. Benefit: Simplifies mating, reduces misconnection risk, and speeds field assembly; Application: field connections to LynxPOWER receptacles in modular automation setups. Feature: NEC/CEC IEC compliance with NEMA ratings 1, 3, 4, 6P, 13. Benefit: Streamlines regulatory approvals across North American and international sites; Application: equipment across varied enclosures and standards profiles. Feature: 199.1 in length specification and 0.64 in width/height with a 0.44 lb weight. Benefit: Provides concrete dimensional references for panel fit and serviceability; Application: plan installations in space-constrained control cabinets.
Get a Quick Quote for a Eaton Crouse-Hinds DM3C2ME050M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DM3C2ME050M?
Enquire Now
FAQs
The DM3C2ME050M uses a female, straight-plug configuration with internal thread and a 5 m #22 AWG cable. To install, route the cable into the enclosure, mate with the corresponding LynxPOWER receptacle, align the keying, and tighten the internal-thread collar to seal against dust and moisture. This minimizes misalignment and ensures a secure, vibration-resistant connection suitable for DC control circuits.
Key specs include a 4 A amperage rating, 300 Vdc voltage rating, three-pole configuration, and #22 AWG conductors with a 5 m length. It is best used for DC control circuits in ordinary/non-hazardous locations, where IP68 protection and a compact zinc housing support reliable operation in washdown or dusty environments.
Yes, the cordset carries IP68 ingress protection, making it suitable for washdown and damp environments. It complies with NEC/CEC IEC standards and NEMA ratings (1, 3, 4, 6P, 13), with area classification of Ordinary/Non-Hazardous Locations, helping you meet regulatory requirements across multiple regions.
Consider the 5 m length to minimize splices and maintain signal integrity, ensure correct polarity on DC circuits, and use the single-key feature to prevent misconnection. Plan for the 199.1 in implied length in some configurations, confirm enclosure space, and secure the internal-thread mating to preserve IP68 sealing during panel mounting.
The cordset reduces wiring time with a robust, pre-wired DC connection solution, minimizes misconnection risk through a single-key design, and supports compliant installations across NEC/CEC IEC standards. Its IP68 rating and zinc housing translate to lower maintenance costs and longer service life, improving uptime in control cabinets and panel wiring over the product lifecycle.
