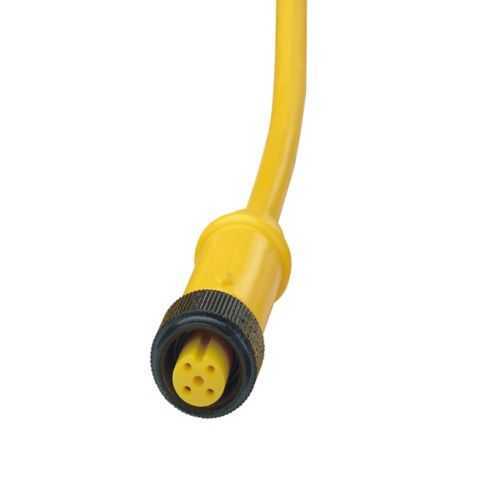

Eaton Crouse-Hinds DM3F2ME020M Cordset - IP68
Part Number: DM3F2ME020M
Quick Summary
Cordset DM3F2ME020M provides compact, reliable DC power connections for industrial automation panels. Engineers often struggle with limited space, mis-mating, and exposure to washdown environments in control cabinets. This LynxPOWER Micro-Mini cordset meets IP68 protection and NEC/CEC IEC standards, with NEMA ratings 1, 3, 4, 6P, 13 for versatile installations. By combining a 2 m cable, a 90° female plug with internal thread, and a single-key alignment in a robust zinc housing, it delivers fast installation, long-term durability, and reduced maintenance costs in real-world applications. The result is safer, more efficient wiring that supports leaner panel designs and quicker project timelines.
Product Information
Extended Description
DM3F2ME020M Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset, 4A, #22 AWG, Female, 90° plug, internal thread, pigtail, Passive, Single key, Zinc, Three-pole, DC, 300 Vdc, 2 m cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset
Catalog Number
DM3F2ME020M
Product Length/Depth
80.44 in
Product Height
1.24 in
Product Width
0.64 in
Product Weight
0.2 lb
UPC
662275943606
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
1 3 4 6P 13
Ingress protection (IP) ratings
IP68
Connector type
Passive
Type
DC
Number Of Poles
Three-pole
Configuration
Female, 90° plug, internal thread, pigtail
Gender
Female
Cable/wire size
#22 AWG
Cable length
2 m
Key type
Single key
Amperage Rating
4 A
Voltage rating
300 Vdc
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - DM3F2ME020M
Feature — Three-pole DC Passive connector with a 90° plug and internal thread enhances mating reliability and vibration resistance, reducing rework and field faults. Business Impact — Minimizes downtime and warranty costs while simplifying installation in compact control panels. Application — Ideal for DC control circuits in automation equipment where space is at a premium. Long-tail keywords embedded: three-pole DC connector, passive cordset, 90° plug, internal thread. Feature — #22 AWG conductors with a 2 m cable length offers a compact, flexible wiring solution without sacrificing signal integrity. Business Impact — Frees up cabinet space, lowers conductor weight, and reduces material costs in high-density panels. Application — Suitable for sensors, signaling, and low-power controls in LynxPOWER networks. Long-tail keywords embedded: #22 AWG, 2 m cable, compact wiring solution. Feature — IP68 ingress protection provides washdown-ready performance in harsh environments. Business Impact — Extends service life in food & beverage, chemical, and heavy manufacturing settings, lowering maintenance cycles. Application — Connectors exposed to moisture, dust, or cleaning cycles. Long-tail keywords embedded: IP68 protection, washdown-ready, rugged DC cordset. Feature — 2 m cable length with pigtail option and single-key alignment speeds field assembly and reduces misalignment risk. Business Impact — Improves installation speed and accuracy, cutting labor time on panel builds. Application — Quick swaps and reliable mating in repetitive assembly lines. Long-tail keywords embedded: pigtail, single-key alignment, quick installation. Feature — 4 A amperage rating and 300 Vdc voltage rating support compact DC control networks while maintaining safety margins. Business Impact — Enables cost-effective powering of relays, sensors, and small drives with compliance to industry standards. Application — DC power distribution in compact automation modules. Long-tail keywords embedded: 4 A, 300 Vdc, DC power distribution. Feature — Zinc housing and robust construction deliver durability in industrial environments. Business Impact — Improves impact resistance and long-term reliability, reducing spare-part requirements. Application — Harsh environment installations requiring rugged housings and durable connectors. Long-tail keywords embedded: zinc housing, rugged construction, industrial durability.
Get a Quick Quote for a Eaton Crouse-Hinds DM3F2ME020M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DM3F2ME020M?
Enquire Now
FAQs
The DM3F2ME020M uses a female, 90° plug with internal thread and a single-key alignment in a zinc housing. It is a three-pole DC passive cordset rated for 4 A and 300 Vdc with #22 AWG conductors, suitable for LynxPOWER receptacles in ordinary/non-hazardous locations. Ensure panel cutouts and mounting hardware accommodate the 0.64 in width and 1.24 in height, with space for the 2 m cable length.
Key specs include a 4 A amperage rating, 300 Vdc voltage rating, #22 AWG conductors, three-pole configuration, and DC type with a passive connector. The 2 m cable length provides flexible routing, while the 90° plug and internal thread support secure, orientation-controlled mating in panel assemblies.
Yes. The DM3F2ME020M offers IP68 ingress protection, making it well-suited for washdown-ready environments. It is designed for ordinary/non-hazardous locations and aligns with NEC/CEC IEC standards and NEMA ratings, providing reliable operation in challenging industrial settings such as food, beverage, and chemical processing facilities.
This cordset complies with NEC/CEC IEC standards and carries NEMA ratings 1, 3, 4, 6P, and 13. Its IP68 rating ensures robust protection against dust and water ingress, and the Ordinary/Non-Hazardous location classification helps determine appropriate installation environments. These certifications support regulatory compliance and safe integration into industrial automation projects.
The DM3F2ME020M reduces downtime through secure mating and vibration resistance, shortens installation time with a 2 m cable and quick alignment, and lowers maintenance costs due to durable zinc housing and IP68 protection. Its compact form factor and standardized NEC/CEC IEC compliance also minimize rework and facilitate faster approvals in controlled environments.
