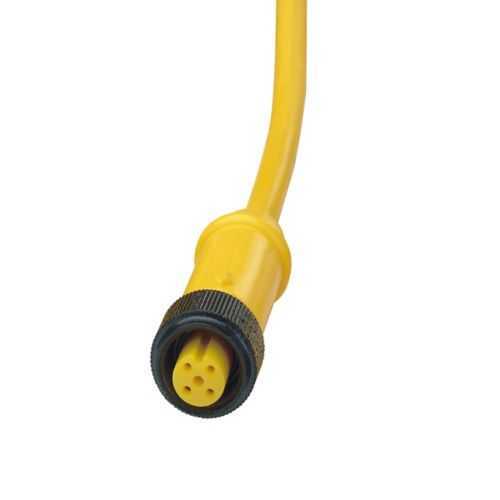

Eaton Crouse-Hinds DM3F2ME050MP LynxPOWER Micro-Mini - IP68
Part Number: DM3F2ME050MP
Quick Summary
DM3F2ME050MP LynxPOWER Micro-Mini cordset is a compact DC power connection designed for industrial automation and control panels. Installers often face limited space and moisture challenges that compromise reliability; this cordset addresses that with a rugged, sealed design. It carries IP68 protection, NEMA ratings 1, 3, 4, 6P and 13, and NEC/CEC IEC compliance, making it suitable for washdown environments. The 5 m cable length, 4 A rating at 300 Vdc, and a 90° female plug with internal thread streamline panel integration, delivering consistent performance in tough conditions. This combination supports efficiency and uptime in modern factories while aligning with Wiring & Connectivity optimization and durable DC signaling requirements.
Product Information
Extended Description
DM3F2ME050MP Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset, 4A, #22 AWG, Female, 90° plug, internal thread, pigtail, Passive, Single key, Zinc, Three-pole, DC, 300 Vdc, PNP LED plug, 5 m cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset
Catalog Number
DM3F2ME050MP
Product Length/Depth
1.7 in
Product Height
1.24 in
Product Width
0.64 in
Product Weight
0.2 lb
UPC
662275943675
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
1 3 4 6P 13
Ingress protection (IP) ratings
IP68
Connector type
Passive
Type
DC
Number Of Poles
Three-pole
Configuration
Female, 90° plug, internal thread, pigtail
Gender
Female
Cable/wire size
#22 AWG
Cable length
5 m
Key type
Single key
Amperage Rating
4 A
Voltage rating
300 Vdc
Material
Zinc
Special features
PNP LED plug
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - DM3F2ME050MP
Feature → Business Impact → Application: The DM3F2ME050MP uses a 5 m cord with #22 AWG conductors rated at 4 A and 300 Vdc, delivering compact, low-current DC power to sensors and actuators. This enables smaller panels and reduced wiring complexity, improving installation speed and minimizing heat load in control cabinets. Application: ideal for tight-space robotics, sensor networks, and DC-powered I/O blocks where space and reliability matter. Feature → Business Impact → Application: A 90° plug and internal-thread, pigtail configuration simplifies mounting in recessed enclosures and supports reliable mating in constrained layouts, reducing field rework and warranty claims. Application: convenient for panel-mounted controllers and safety interlocks where space is at a premium. Feature → Business Impact → Application: IP68 rated zinc housing with a Passive connector type and PNP LED plug provides washdown resistance and clear status indicators, lowering maintenance costs and enabling rapid fault diagnosis. Application: harsh environments like manufacturing floors, food and beverage processing, and chemical plants. Feature → Business Impact → Application: Three-pole, DC configuration with a single key minimizes incorrect connections, boosting installation accuracy and reducing downtime. Application: critical DC signaling and control loops in automation systems. Feature → Business Impact → Application: NEC/CEC IEC compliance and NEMA ratings (1, 3, 4, 6P, 13) provide regulatory confidence and cross-site compatibility, easing procurement and reducing rework. Application: multi-site deployments and compliance-driven projects in industrial facilities. Feature → Business Impact → Application: 5 m length supports flexible cabling strategies and future layout changes without rework, improving lifecycle ROI. Application: scalable automation architectures and modular panel designs.
