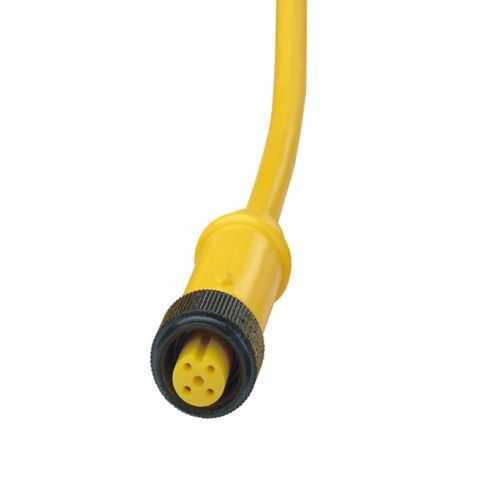

Eaton Crouse-Hinds DM3F3ME040M LynxPOWER Micro-Mini cordset - IP68
Part Number: DM3F3ME040M
Quick Summary
LynxPOWER Micro-Mini cordset is a compact DC power and signal connector designed for harsh industrial environments. Engineers often face cramped control panels, frequent washdowns, and fragile terminations that slow changeovers. It carries IP68 ingress protection, plus NEMA ratings 1, 3, 4, 6P, 13 and IEC/NEC/CEC compliance to help with safety, reliability, and regulatory alignment. Designed for automation panels and machinery, this cordset delivers robust performance with a 4 A, 300 Vdc rating on a 4 m #18 AWG cable, reducing wiring complexity and downtime while enabling faster installs and more predictable maintenance. In short, it supports safer, cleaner connections in demanding environments and scales with growing automation needs.
Product Information
Extended Description
DM3F3ME040M Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset, 4A, #18 AWG, Female, 90° plug, internal thread, pigtail, Passive, Single key, Zinc, Three-pole, DC, 300 Vdc, 4 m cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset
Catalog Number
DM3F3ME040M
Product Length/Depth
1.7 in
Product Height
1.24 in
Product Width
0.64 in
Product Weight
0.29 lb
UPC
662275359421
Area classification
Ordinary/Non-Hazardous Locations
Standards type
IEC NEC/CEC
NEMA Rating
1 3 4 6P 13
Ingress protection (IP) ratings
IP68
Connector type
Passive
Type
DC
Number Of Poles
Three-pole
Configuration
Female, 90° plug, internal thread, pigtail
Gender
Female
Cable/wire size
#18 AWG
Cable length
4 m
Key type
Single key
Amperage Rating
4 A
Voltage rating
300 Vdc
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - DM3F3ME040M
Feature: Three-pole DC configuration. Business Impact: Ensures a stable, low-impedance DC path for control and power signals, reducing voltage drop and improving machine response. Application: Servo drives and DC-controlled equipment in compact panels. Feature: 4 A, 300 Vdc rating. Business Impact: Handles common automation loads with a safety margin, supporting reliable operation and simpler compliance documentation. Application: Industrial motors, sensors, and controllers in non-hazardous locations. Feature: 4 m cable length with #18 AWG conductors. Business Impact: Flexible routing in tight enclosures, fewer junctions, and easier field routing. Application: Panel wiring harnesses and field-installed connections in conveyors and packaging lines. Feature: 90° plug, internal thread, pigtail. Business Impact: Secures mating connections, simplifies mounting, and speeds field terminations. Application: Panel penetrations where space is limited and service may require quick disconnection. Feature: Zinc housing with IP68 rating. Business Impact: Delivers enhanced protection against dust and immersion, enabling washdown readiness and longer service life. Application: Harsh manufacturing environments such as food and beverage or chemical processing. Feature: Single key, female configuration, three-pole design. Business Impact: Reduces mis-mating risk and eliminates common installation errors, cutting maintenance time. Application: Standardized installations across multiple machines in an automation line. Feature: Compliance with IEC/NEC/CEC and NEMA ratings. Business Impact: Eases regulatory approval, supplier qualification, and documentation for audits. Application: Industrial facilities requiring certified, dependable connectivity in ordinary/non-hazardous locations.
Get a Quick Quote for a Eaton Crouse-Hinds DM3F3ME040M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DM3F3ME040M?
Enquire Now
FAQs
Install by mating the female, 90° plug with the mating partner, then secure via the internal thread and pigtail. Use the 4 m length to reach the panel edge and connect #18 AWG conductors. Ensure the housing remains sealed to maintain IP68 protection and verify the three-pole configuration for proper DC operation.
The cordset is rated for 4 A at 300 Vdc, with #18 AWG conductors and a 4 m cable length. It uses a three-pole configuration, DC type, passive connector, and provides a 1.7 in length, 1.24 in height, and 0.64 in width housing with a zinc body.
Yes. The cordset carries IP68 ingress protection, indicating resistance to dust and immersion in water up to specified limits, making it suitable for washdown environments in ordinary/non-hazardous locations.
Certifications include IEC NEC/CEC standards and NEMA ratings 1, 3, 4, 6P, 13, plus an IP68 rating and ordinary/non-hazardous area classification. These ensure safety, compatibility with industrial controls, and regulatory compliance across North American and international installations.
The robust zinc housing and IP68 seal reduce maintenance frequency by resisting washdowns and dust ingress. The 90° plug and single-key design streamline installation and service, cutting downtime, while the compact 4 m cable length minimizes wiring complexity and supports scalable, long-term cost savings in automated production lines.
