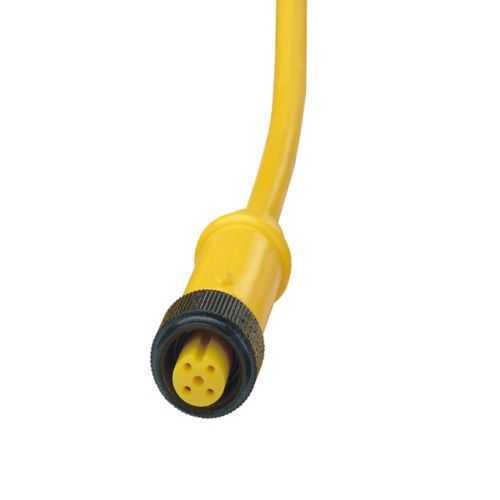

Eaton DM4C2ME012M LynxPOWER Micro-Mini Cordset - IP68
Part Number: DM4C2ME012M
Quick Summary
Eaton Crouse-Hinds LynxPOWER Micro-Mini cordset is a compact DC power and signal link designed for space-constrained automation panels. When field wiring must fit into tight enclosures or high-vibration environments, unreliable connections slow projects and raise maintenance costs. The design meets IP68, ordinary/non-hazardous area classifications, and IEC/NEC standards, supporting safer, compliant installations. By leveraging a 1.2 m pigtail and #22 AWG conductors in a four-pole DC configuration, this cordset delivers dependable, space-efficient connectivity with minimal assembly time, reducing downtime and installation labor. It also offers a robust zinc housing with internal thread, ensuring secure mating and long service life in harsh factory settings.
Product Information
Extended Description
DM4C2ME012M Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset, 4A, #22 AWG, Female, straight plug, internal thread, pigtail, Passive, Single key, Zinc, Four-pole, DC, 300 Vdc, 1.2 m cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset
Catalog Number
DM4C2ME012M
Product Length/Depth
2.25 in
Product Height
0.64 in
Product Width
0.64 in
Product Weight
1 lb
UPC
662275348272
Area classification
Ordinary/Non-Hazardous Locations
Standards type
IEC NEC/CEC
NEMA Rating
3 13 6P 4 1
Ingress protection (IP) ratings
IP68
Connector type
Passive
Type
DC
Number Of Poles
Four-pole
Configuration
Female, straight plug, internal thread, pigtail
Gender
Female
Cable/wire size
#22 AWG
Cable length
1.2 m
Key type
Single key
Amperage Rating
4 A
Voltage rating
300 Vdc
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - DM4C2ME012M
Feature ā Business Impact ā Application: The DM4C2ME012M uses a four-pole DC configuration with a female, straight plug and internal thread, plus a 1.2 m pigtail. This delivers modular, space-efficient connectivity that reduces field wiring complexity in control cabinets and sensor networks, accelerating panel assembly and simplifying future maintenance in harsh environments. Feature ā Business Impact ā Application: The use of #22 AWG conductors rated at 4 A and 300 Vdc provides reliable power and signaling for small automation devices without overdesign, lowering cost while maintaining robust performance in machine automation and remote I/O applications. Feature ā Business Impact ā Application: IP68 protection and a zinc housing protect against dust, moisture, and immersion in ordinary locations, enabling longer service life and lower replacement costs for conveyors and packaging lines. Feature ā Business Impact ā Application: Internal thread mating and passive connectors in the LynxPOWER ecosystem simplify installation, reduce misalignment risk, and improve repeatability across multiple machines on a line. Feature ā Business Impact ā Application: The compact form factor and compatibility with standard LynxPOWER components support scalable, future-proof wiring schemes, enabling straightforward upgrades and easier spares management in OEM and end-user facilities.
Get a Quick Quote for a Eaton Crouse-Hinds DM4C2ME012M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DM4C2ME012M?
Enquire Now
FAQs
Yes. The DM4C2ME012M is a passive four-pole DC cordset with a female straight plug and internal thread, designed to integrate with other LynxPOWER components. Its 1.2 m pigtail length and #22 AWG conductors support straightforward field wiring, while the zinc housing ensures secure mating and vibration resistance in typical control cabinet environments.
This cordset is rated for 4 A and 300 Vdc, with #22 AWG conductors and a four-pole configuration. It uses a female, straight plug with internal thread and pigtail, enabling reliable DC power and signal transmission in compact automation setups. The 1.2 m cable length provides practical reach while maintaining a compact footprint.
Yes. The DM4C2ME012M features IP68 protection and a zinc housing, delivering strong resistance to dust and immersion in moist environments. This makes it suitable for vibration-prone machinery and outdoor or semi-exposed production lines where robust, maintenance-friendly connectivity is essential.
The cordset aligns with IEC and NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations. It is designed to meet common industrial requirements, with IP68 protection and a NEMA-compatible housing, supporting safe, compliant installation across many manufacturing environments.
The four-pole DC design with internal threading enables reliable, repeatable connections that resist loosening in vibration. The 1.2 m length reduces field wiring complexity, while the rugged zinc housing lowers replacement costs. Over time, this translates to reduced downtime, easier servicing, and lower total cost of ownership for automation lines.
