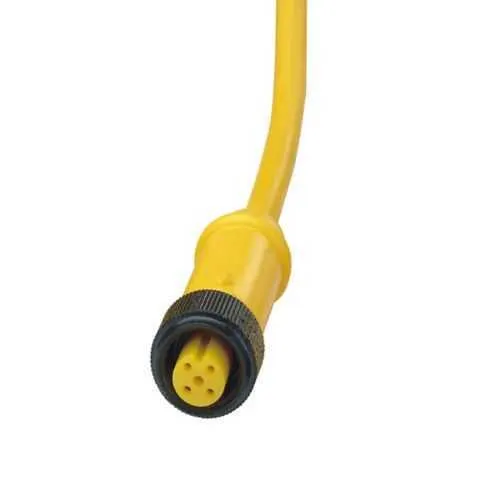

Eaton DM4C2ME020M LynxPOWER Micro-Mini Cordset - IP68
Part Number: DM4C2ME020M
Quick Summary
DM4C2ME020M is a LynxPOWER Micro-Mini cordset for reliable, compact control cabinet connections. Engineers often face crowded panel spaces, frequent vibration, and the need for dependable DC wiring in harsh environments. With IP68 ingress protection and compliance to NEC/CEC IEC standards plus compatible NEMA ratings, this cordset supports safe, compliant operation in ordinary/non-hazardous locations. The 2 m length, #22 AWG conductors, and four-pole configuration deliver a streamlined, cost-effective solution for industrial automation cabling while improving maintenance intervals and reducing field wiring errors.
Product Information
Extended Description
DM4C2ME020M Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset, 4A, #22 AWG, Female, straight plug, internal thread, pigtail, Passive, Single key, Zinc, Four-pole, DC, 300 Vdc, 2 m cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset
Catalog Number
DM4C2ME020M
Product Length/Depth
80.99 in
Product Height
0.64 in
Product Width
0.64 in
Product Weight
0.12 lb
UPC
662275943828
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
1 3 4 6P 13
Ingress protection (IP) ratings
IP68
Connector type
Passive
Type
DC
Number Of Poles
Four-pole
Configuration
Female, straight plug, internal thread, pigtail
Gender
Female
Cable/wire size
#22 AWG
Cable length
2 m
Key type
Single key
Amperage Rating
4 A
Voltage rating
300 Vdc
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - DM4C2ME020M
Four-pole DC configuration reduces wiring complexity and minimizes cross-talk, delivering cleaner terminations for distributed control networks. This translates to shorter commissioning times, fewer wiring errors, and improved reliability in space-constrained panels. It’s well suited for PLCs, sensors, and motor-control circuits in demanding manufacturing lines. With a 2 m cable length and #22 AWG conductors, the cordset offers flexible routing in tight cabinets and simplifies field replacements. The pigtail and internal-threaded female straight plug minimize installation steps, reduce misconnections, and lower maintenance intervals across automation installations. IP68 protection and a zinc housing provide ruggedness against dust, water exposure, and washdown environments common in food & beverage, chemical processing, and heavy machinery applications. This level of durability helps maintain uptime without additional enclosure upgrades, delivering meaningful total-cost-of-ownership benefits. Compliance is reinforced by NEC/CEC IEC standards and broad NEMA ratings (1, 3, 4, 6P, 13), giving engineers confidence in cross-vendor integration and regulatory adherence. This compatibility streamlines multi-machine architectures and reduces risk during audits and installation. Delivered as part of the LynxPOWER ecosystem, the module supports quick field service, easy replacement, and scalable panel designs. The compact footprint, corrosion-resistant zinc housing, and passive DC configuration lower life-cycle costs while supporting future upgrades in industrial automation and machine building.
Get a Quick Quote for a Eaton Crouse-Hinds DM4C2ME020M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DM4C2ME020M?
Enquire Now
FAQs
To install, route the 2 m cable with #22 AWG conductors through the backplane or gland entry, connect the female straight plug to the mating receptacle, and secure the internal thread with the pigtail integrated into the housing. Ensure correct alignment of the four poles and verify IP68 seals after assembly to maintain protection in washdown environments.
Verify a 4 A amperage rating, 300 Vdc maximum voltage, and #22 AWG conductor size. The device is a four-pole, passive DC cordset with a 2 m cable length, featuring a female, straight plug and internal thread for secure mating and reliable, low-resistance connections in automation circuits.
Yes. The cordset carries IP68 protection and uses a zinc housing, which provides rugged resistance to dust, water exposure, and washdown processes common in manufacturing environments. This makes it suitable for ordinary/non-hazardous locations without needing additional enclosures.
The product aligns with NEC/CEC IEC standards and supports NEMA ratings 1, 3, 4, 6P, and 13, ensuring regulatory compliance across diverse automation systems. These certifications reduce risk during integration with multi-vendor equipment and help with supplier audits and safety documentation.
The four-pole DC design simplifies wiring, reducing commissioning time and field errors. Its IP68 protection and durable zinc housing extend service life in challenging environments, lowering maintenance costs and unwanted downtime while enabling scalable installations within the LynxPOWER ecosystem.
