Eaton Crouse-Hinds DM4C2ME040M Cordset - IP68, 4A
Part Number: DM4C2ME040M
Quick Summary
DM4C2ME040M LynxPOWER Micro-Mini cordset delivers DC power connections for compact industrial automation enclosures. In tight panels and harsh environments, finding a durable, IP-rated cordset that fits four-pole DC needs can be challenging. This cordset meets IEC NEC/CEC standards, carries IP68 ingress protection, and aligns with NEMA ratings for ordinary/non-hazardous locations. Built for reliability and ease of integration, it features #22 AWG conductors, a 4 m cable, and a female straight plug with internal thread and pigtail to streamline installation and maintenance. Additionally, the compact form factor reduces panel footprint while maintaining robust mating and environmental sealing. Therefore it is well-suited for machine builders deploying LynxPOWER connectivity in conveyors, robotics, and process automation.
Product Information
Extended Description

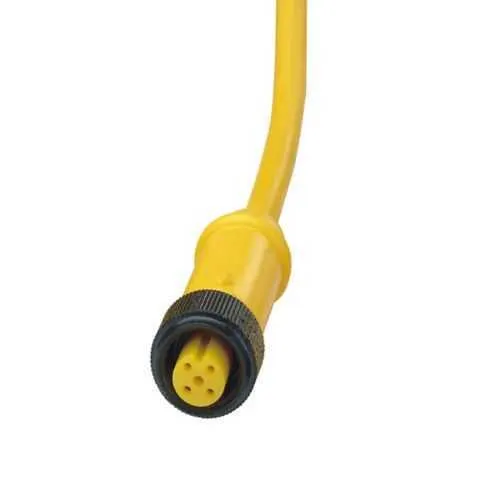

DM4C2ME040M Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset, 4A, #22 AWG, Female, straight plug, internal thread, pigtail, Passive, Single key, Zinc, Four-pole, DC, 300 Vdc, 4 m cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset
Catalog Number
DM4C2ME040M
Product Length/Depth
2.25 in
Product Height
0.64 in
Product Width
0.64 in
Product Weight
1 lb
UPC
662275359452
Area classification
Ordinary/Non-Hazardous Locations
Standards type
IEC NEC/CEC
NEMA Rating
1 3 4 13 6P
Ingress protection (IP) ratings
IP68
Connector type
Passive
Type
DC
Number Of Poles
Four-pole
Configuration
Female, straight plug, internal thread, pigtail
Gender
Female
Cable/wire size
#22 AWG
Cable length
4 m
Key type
Single key
Amperage Rating
4 A
Voltage rating
300 Vdc
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - DM4C2ME040M
Feature: Four-pole DC configuration with a 4 A rating and 300 Vdc capability. Business Impact: Enables reliable power distribution in compact panels, reducing the need for junctions and potential fault points. Application: Ideal for control panels and automated equipment where four-pole DC distribution is required. Feature: IP68 ingress protection and zinc housing with an internal thread, pigtail, and passive connector. Business Impact: Provides washdown resistance and long-term durability in harsh manufacturing environments. Application: Suitable for food & beverage lines or general industry where moisture and dust are concerns. Feature: Cable/wire size #22 AWG and 4 m length. Business Impact: Supports compact routing and reduces cable clutter while ensuring consistent conductivity. Application: Best for feeder connections in small enclosures and tight control cabinets. Feature: Female, straight plug, internal thread, single key. Business Impact: Minimizes mis-mating and simplifies field assembly; supports quick, secure mating under time-sensitive conditions. Application: Common in LynxPOWER Micro-Mini cordsets across panels and multi-port boxes. Feature: IEC NEC/CEC compliance, NEMA ratings 1, 3, 4, 13, 6P, and Ordinary/Non-Hazardous locations. Business Impact: Reduces regulatory risk and broadens use cases across regions. Application: Suitable for general industrial environments requiring reliable, compliant DC connections. Feature: Compact footprint with 2.25 in length, 0.64 in width, 0.64 in height, and 1 lb weight. Business Impact: Fewer enclosure adjustments and easier routing in dense automation layouts. Application: Ideal for space-constrained control panels and modular automation architectures.
Get a Quick Quote for a Eaton Crouse-Hinds DM4C2ME040M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DM4C2ME040M?
Enquire Now
FAQs
To install DM4C2ME040M, ensure the panel is within ordinary/non-hazardous locations and meets IP68 ingress protection requirements. Mount the cordset so the female straight plug aligns with the mating connector, tighten the internal-thread collar, and route the 4 m #22 AWG cable to the power distribution points. Verify four-pole alignment and secure pigtail connections to minimize vibration-induced wear. This keeps the system compact and maintains reliable DC power delivery.
The DM4C2ME040M is rated for 4 A and 300 Vdc across four poles. This supports direct DC power distribution to compact automation devices without intermediate splices, reducing fault points and improving uptime. The 4 m cable length provides flexibility in panel layouts while maintaining conductor integrity for consistent performance in typical industrial environments.
Yes. The product is designed for Ordinary/Non-Hazardous Locations and carries IP68 ingress protection, supporting washdown and dust resistance. It also complies with IEC NEC/CEC standards and NEMA ratings suitable for Grade 1–6P scenarios. This makes it a versatile choice for general manufacturing, packaging lines, and routine automation equipment without special hazardous-location requirements.
The DM4C2ME040M adheres to IEC NEC/CEC standards and carries IP68 protection. It also aligns with NEMA ratings of 1, 3, 4, 13, and 6P, and is intended for Ordinary/Non-Hazardous Locations. These certifications support regulatory compliance across multiple regions and simplify procurement for global automation projects.
The four-pole, passive connection with a zinc housing exposes fewer field components prone to wear, reducing maintenance frequency. The IP68 seal and compact 4 m cable length lower splice count and installation time, delivering quicker commissioning and longer mean time between outages. Overall, the DM4C2ME040M lowers total cost of ownership for LynxPOWER-based automation lines.
