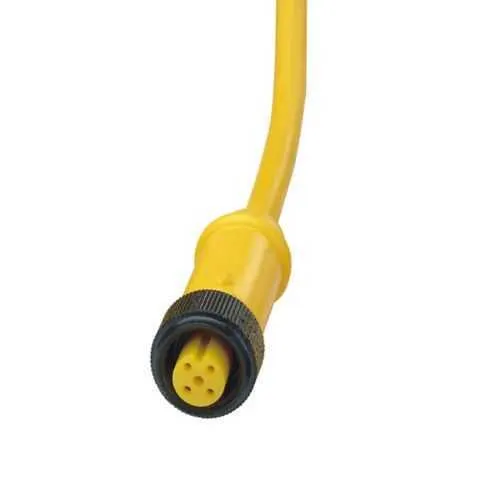

Eaton DM4F2ME020M LynxPOWER Micro-Mini Cordset - IP68
Part Number: DM4F2ME020M
Quick Summary
LynxPOWER Micro-Mini cordset enables reliable, compact DC power connections for industrial automation equipment. In tight installations, space constraints and frequent disconnects slow start-ups and increase maintenance costs. This cordset delivers robust, space-efficient performance with IP68 protection, NEC/CEC IEC compliance, and multiple NEMA ratings to address harsh plant conditions. By combining a 2 m cable, #22 AWG conductors, and a four-pole passive connector, it simplifies wiring, reduces panel clutter, and speeds commissioning. For manufacturers targeting uptime and predictable maintenance budgets, this solution offers improved reliability and lower total cost of ownership, especially in washdown-ready, ordinary-location facilities.
Product Information
Extended Description
DM4F2ME020M Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset, 4A, #22 AWG, Female, 90° plug, internal thread, pigtail, Passive, Single key, Zinc, Four-pole, DC, 300 Vdc, 2 m cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset
Catalog Number
DM4F2ME020M
Product Length/Depth
80.44 in
Product Height
1.24 in
Product Width
0.64 in
Product Weight
0.2 lb
UPC
662275951717
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
1 3 4 6P 13
Ingress protection (IP) ratings
IP68
Connector type
Passive
Type
DC
Number Of Poles
Four-pole
Configuration
Female, 90° plug, internal thread, pigtail
Gender
Female
Cable/wire size
#22 AWG
Cable length
2 m
Key type
Single key
Amperage Rating
4 A
Voltage rating
300 Vdc
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - DM4F2ME020M
Feature to business impact to application: The 2 m cable length with a 90° plug and internal thread saves panel space and simplifies routing in compact control panels, reducing installation time and risk of wiring mistakes, which translates to faster time-to-production in robotics and machine automation. The four-pole DC configuration rated at 4 A and 300 Vdc enables clean power and control signal distribution for servo drives and PLC I/O without needing larger, bulkier connectors, delivering energy efficiency and lower wiring costs in motor control applications. The use of #22 AWG conductors supports flexible harnessing and cost-effective cabling while maintaining reliable current handling for small servo motors and sensors, reducing material costs. IP68 protection provides washdown compatibility and resistance to dust ingress, extending equipment life in food & beverage lines and outdoor industrial setups, which lowers maintenance frequency and downtime. The passive, zinc housing and internal thread/pigtail configuration offer a rugged, maintenance-friendly connection that installers trust for quick field terminations and repeatable performance, improving upgradeability and site-wide reliability in legacy systems. Compatibility with LynxPOWER components ensures scalable connectivity across the plant, enabling phased modernization without disrupting existing equipment.
Get a Quick Quote for a Eaton Crouse-Hinds DM4F2ME020M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DM4F2ME020M?
Enquire Now
FAQs
The DM4F2ME020M uses a female connector with a 90° plug, internal thread, and a built-in pigtail. Installers should ensure proper panel clearance, align the connector with the mating receptacle, and torque to the specified level to maintain IP68 integrity. The 2 m cable length provides flexibility for routing in tight spaces, reducing strain on the connection and minimizing field termination errors.
Yes. This cordset is a four-pole DC connector rated for 4 A and 300 Vdc, using #22 AWG conductors. It is designed for DC power distribution to servo drives, sensors, and control modules, enabling compact wiring harnesses while maintaining safe operating margins in standard industrial environments.
The DM4F2ME020M is IP68 rated for dust and water ingress protection and complies with NEC/CEC IEC standards, with multiple NEMA ratings (1, 3, 4, 6P, 13). It is intended for ordinary/non-hazardous locations, making it suitable for washdown areas and general automation installations in compliant facilities.
Yes, it is a passive four-pole connector featuring a female interface, 90° plug, internal thread, and pigtail. Its design aligns with the LynxPOWER Micro-Mini family, enabling straightforward compatibility and scalable integration with other passive LynxPOWER cords, receptacles, and multi-port boxes for phased plant-wide connectivity upgrades.
The cordset delivers reliable DC power connectivity with a compact form factor, reducing wiring complexity and installation time. IP68 washdown protection minimizes maintenance events, while the high-reliability zinc housing endures harsh environments. Together, these factors help lower downtime, extend mean time between failures, and improve overall equipment effectiveness (OEE) in automation lines.
