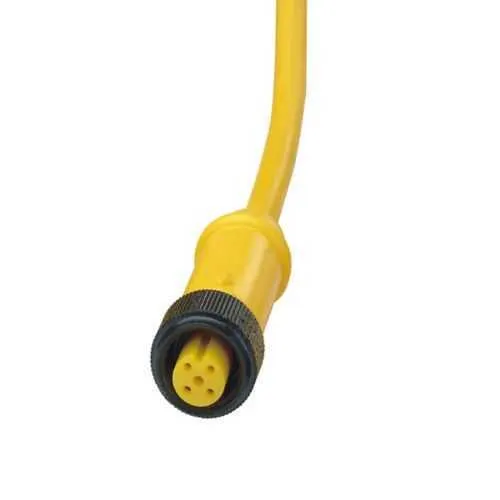

Eaton Crouse-Hinds DM4F2ME030M Cordset - IP68
Part Number: DM4F2ME030M
Quick Summary
The DM4F2ME030M cordset delivers a rugged four-pole DC connection for LynxPOWER networks. This design addresses common installation challenges by combining IP68 sealing with a 90° plug and internal thread to reduce moisture ingress and misalignment. It carries NEC/CEC/IEC standards and a NEMA 6P rating, suitable for Ordinary/Non-Hazardous locations in demanding industrial environments. With a compact zinc housing and a 3 m cable, this cordset enables streamlined installs, lower wiring labor, and improved field reliability for automated systems and sensors.
Product Information
Extended Description
DM4F2ME030M Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset, 4A, #22 AWG, Female, 90° plug, internal thread, pigtail, Passive, Single key, Zinc, Four-pole, DC, 300 Vdc, 3 m cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset
Catalog Number
DM4F2ME030M
Product Length/Depth
1.7 in
Product Height
1.24 in
Product Width
0.64 in
Product Weight
0.28 lb
UPC
662275359476
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
6P 1 13 3 4
Ingress protection (IP) ratings
IP68
Connector type
Passive
Type
DC
Number Of Poles
Four-pole
Configuration
Female, 90° plug, internal thread, pigtail
Gender
Female
Cable/wire size
#22 AWG
Cable length
3 m
Key type
Single key
Amperage Rating
4 A
Voltage rating
300 Vdc
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - DM4F2ME030M
Feature → Business Impact → Application: The four-pole Passive DC cordset with #22 AWG conductors delivers reliable, low-loss power delivery for LynxPOWER ecosystems, enabling stable operation of sensors and actuators while supporting a compact footprint in control panels. Application: Suitable for space-constrained machines and enclosure-mounted electronics in process and factory automation where dependable power is required. Feature → Business Impact → Application: IP68 sealing and NEMA 6P rating protect the connector from dust and water exposure, reducing maintenance downtime and extending service life in washdown areas and outdoor installations. Application: Food processing lines, packaging machines, and outdoor control centers needing rugged connectivity. Feature → Business Impact → Application: 90° plug with internal thread and pigtail simplifies installation in tight spaces, minimizes miswiring risk, and speeds field assembly. Application: Panels with tight clearances and modular LynxPOWER configurations. Feature → Business Impact → Application: Zinc housing, compact dimensions (1.7 in L, 1.24 in H, 0.64 in W) and 0.28 lb weight support durable, corrosion-resistant performance without adding bulk. Application: Portable or handheld junctions near conveyors and robotics. Feature → Business Impact → Application: 3 m cable length, 4 A, 300 Vdc ratings deliver dependable DC power to mid-range loads with clear compatibility to #22 AWG wiring standards. Application: Sensor arrays and actuator drives across high-density automation zones. Feature → Business Impact → Application: NEC/CEC IEC compliance and ordinary location classification provide regulatory confidence and simplified certification for system integrations. Application: Industrial control panels and machine builds requiring standard-compliant, non-hazardous connectivity.
Get a Quick Quote for a Eaton Crouse-Hinds DM4F2ME030M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DM4F2ME030M?
Enquire Now
FAQs
This cordset features a 90° plug, internal thread, and a pigtail configuration that simplifies mounting in tight enclosures. With a 3 m cable length and a zinc housing, plan for routing that minimizes bending radii and ensures the connector remains protected from washdown or moisture exposure in Ordinary/Non-Hazardous locations.
The DM4F2ME030M is a four-pole DC cordset rated for 4 A and 300 Vdc with #22 AWG conductors. The 3 m cable length supports mid-range power delivery to sensors and actuators, while the passive connector design simplifies field maintenance and replacement.
This model is rated for Ordinary/Non-Hazardous Locations and features IP68 sealing along with a NEMA 6P rating, making it appropriate for washdown environments and wet industrial areas but not certified for hazardous-location service.
The product adheres to NEC/CEC IEC standards and carries a NEMA 6P rating, with IP68 ingress protection. These certifications validate safe operation in non-hazardous industrial settings and simplify design validation, compliance checks, and regulatory acceptance for panel integrations.
The four-pole passive DC design with a compact footprint reduces wiring complexity and installation time. The IP68/NEMA 6P protection lowers maintenance in harsh environments, while the 3 m cable length minimizes the need for intermediate power junctions, delivering reduced downtime and lower total cost of ownership over the life of LynxPOWER-enabled systems.
