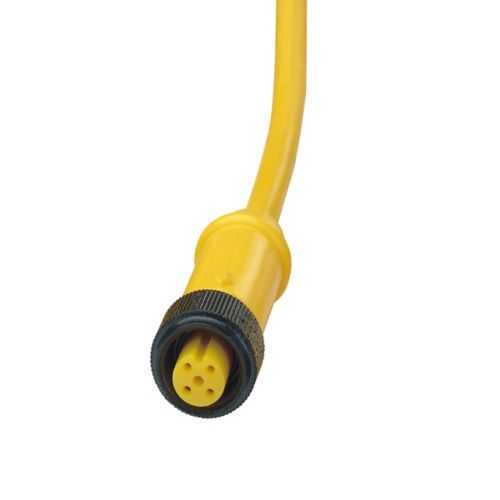

Eaton DM4F2ME040M LynxPOWER Micro-Mini Cordset - IP68
Part Number: DM4F2ME040M
Quick Summary
LynxPOWER Micro-Mini cordset provides reliable four-pole DC power connections for industrial automation panels and motor control centers. Engineers often struggle with tight spaces, hostile washdown zones, and the need for safe, IP-rated connectors that won’t fail in production. This cordset meets IP68 sealing and NEC/CEC IEC standards, offering rugged performance in ordinary/non-hazardous locations. By combining compact geometry with a four-pole DC configuration and a single-key polarization, it enables faster installations and predictable maintenance while reducing downtime and wiring errors. Whether upgrading legacy panels or deploying new lines, the DM4F2ME040M supports fast field replacements and scalable connectivity across LynxPOWER ecosystems, helping procurement improve lead times and maintenance teams minimize downtime.
Product Information
Extended Description
DM4F2ME040M Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset, 4A, #22 AWG, Female, 90° plug, internal thread, pigtail, Passive, Single key, Zinc, Four-pole, DC, 300 Vdc, 4 m cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset
Catalog Number
DM4F2ME040M
Product Length/Depth
1.7 in
Product Height
1.24 in
Product Width
0.64 in
Product Weight
1 lb
UPC
662275955555
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
4 6P 13 3 1
Ingress protection (IP) ratings
IP68
Connector type
Passive
Type
DC
Number Of Poles
Four-pole
Configuration
Female, 90° plug, internal thread, pigtail
Gender
Female
Cable/wire size
#22 AWG
Cable length
4 m
Key type
Single key
Amperage Rating
4 A
Voltage rating
300 Vdc
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - DM4F2ME040M
Feature → Business Impact → Application: The DM4F2ME040M utilizes a four-pole DC power configuration rated at 4 A and 300 Vdc with #22 AWG conductors and a 4 m cable. This combination minimizes wiring complexity while controlling voltage drop on short-distance runs, enabling reliable power delivery to sensors, controllers, and actuators inside compact panels. In practice, engineers deploy this cordset in machine enclosures and control cabinets where space is at a premium and performance matters. Feature → Business Impact → Application: The IP68-rated sealing and zinc housing protect against washdown and corrosive environments, extending component life and reducing maintenance cycles. For OEMs and integrators, this means fewer field failures and lower service costs over the equipment lifecycle. Applications include outdoor equipment, food and beverage lines, and robotics cells where moisture and dust ingress are critical concerns. Feature → Business Impact → Application: The cordset's passive connector, 90° plug, internal thread, and pigtail support polarized, secure mating without tools. This design accelerates installation, reduces the risk of incorrect connections, and improves repeatability when upgrades or maintenance are performed. It is particularly advantageous in confined spaces inside control panels and remote devices in automated lines. Feature → Business Impact → Application: Compatibility and compliance are built in through NEC/CEC IEC standards and NEMA ratings. The product is suitable for Ordinary/Non-Hazardous Locations, helping teams meet regulatory requirements and streamline documentation. The four-pole DC configuration also supports consistent power distribution across multi-axis drives and sensor networks within automated cells. Feature → Business Impact → Application: Weight and dimensions support easy handling and integration with existing LynxPOWER ecosystems, reducing installation time and inventory complexity. As a result, maintenance planning and procurement can optimize lead times and total cost of ownership for factory automation projects.
Get a Quick Quote for a Eaton Crouse-Hinds DM4F2ME040M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DM4F2ME040M?
Enquire Now
FAQs
The DM4F2ME040M is a four-pole DC cordset with a female, 90° plug, internal thread, and pigtail designed to mate with standard LynxPOWER micro-mini receptacles. The #22 AWG, 4 m cable, and passive connector support seamless integration with existing LynxPOWER assemblies, reducing rework and enabling quick replacements.
This cordset carries IP68 ingress protection and complies with NEC/CEC IEC standards, with NEMA ratings including 4, 6P, 13, 3, and 1. It is intended for Ordinary/Non-Hazardous Locations, simplifying safety documentation and ensuring suitability for standard industrial environments.
The cordset uses a 4 m length with #22 AWG conductors, rated for 4 A at 300 Vdc. This combination supports compact routing in control panels while maintaining acceptable voltage drop for short-distance DC power to sensors and controllers.
The single-key polarization and 90° plug ease mating and alignment, while IP68 sealing protects against contaminants. The zinc housing provides rugged durability, enabling faster field replacements and less rework when servicing machines in busy production lines.
With IP68 ingress protection and suitability for Ordinary/Non-Hazardous Locations, the DM4F2ME040M is ideal for automated machinery, control panels, and sensor networks in clean rooms, manufacturing floors, and washdown areas where reliable, sealed DC connections are required.
