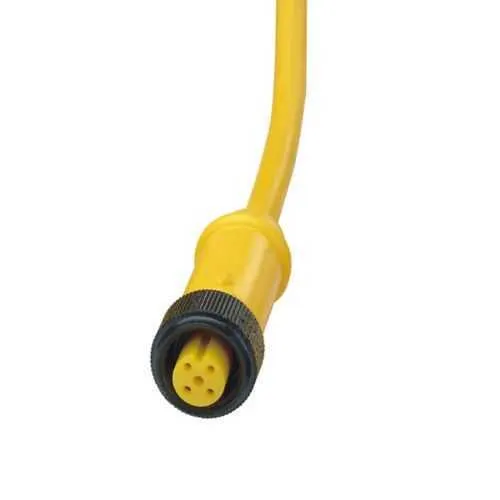

Eaton DM4F2ME050M LynxPOWER Micro-Mini Cordset - IP68
Part Number: DM4F2ME050M
Quick Summary
LynxPOWER Micro-Mini cordset provides reliable DC power and signal connections for compact automation panels. By integrating this cordset, engineers can address space constraints, reduce wiring complexity, and minimize downtime caused by field terminations. It meets NEC/CEC IEC standards and carries IP68 ingress protection, along with favorable NEMA ratings for Ordinary/Non-Hazardous locations, giving confidence in harsh environments. With a 5 m pigtail, #22 AWG conductors, and a 4 A, 300 Vdc rating, this solution streamlines installation, lowers wiring tasks, and supports long-life operation in demanding manufacturing settings. Durable zinc housing, a 90° female plug, internal thread, and a single-key configuration help prevent misalignment during mating and speed up service tasks.
Product Information
Extended Description
DM4F2ME050M Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset, 4A, #22 AWG, Female, 90° plug, internal thread, pigtail, Passive, Single key, Zinc, Four-pole, DC, 300 Vdc, 5 m cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset
Catalog Number
DM4F2ME050M
Product Length/Depth
198.55 in
Product Height
1.24 in
Product Width
0.64 in
Product Weight
0.5 lb
UPC
662275943873
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
1 3 4 6P 13
Ingress protection (IP) ratings
IP68
Connector type
Passive
Type
DC
Number Of Poles
Four-pole
Configuration
Female, 90° plug, internal thread, pigtail
Gender
Female
Cable/wire size
#22 AWG
Cable length
5 m
Key type
Single key
Amperage Rating
4 A
Voltage rating
300 Vdc
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - DM4F2ME050M
Feature: Four-pole DC configuration enabling simultaneous power and signal transmission for compact controls. Benefit: Improves reliability and reduces the need for additional adapters, lowering assembly time in panel builds. Application: Sensor clusters and small actuators in automated lines. Feature: 5 m cable length with #22 AWG conductors. Benefit: Flexible routing and reduced need for field splices, cutting labor costs and installation time. Application: Panel-to-device connections across modest distances in machines. Feature: 90° plug with internal thread and pigtail. Benefit: Easier mating in tight spaces and secure, vibration-resistant connections, improving uptime. Application: Mounted enclosures and equipment with restricted backplanes. Feature: 4 A, 300 Vdc ratings. Benefit: Supports common automation loads with headroom for short DC runs, enabling safer and more efficient wiring. Application: DC power and signaling to sensors and small actuators. Feature: IP68 protection and zinc housing. Benefit: Washdown-ready durability and long service life in harsh environments, reducing maintenance cost. Application: Industrial environments with exposure to moisture and dust. Feature: Passive four-pole configuration with a female, 90° plug and internal thread. Benefit: Simple integration into existing LynxPOWER systems with robust, repeatable mating. Application: System upgrades and modular automation installations.
Get a Quick Quote for a Eaton Crouse-Hinds DM4F2ME050M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DM4F2ME050M?
Enquire Now
FAQs
The DM4F2ME050M uses a female, 90° plug with an internal thread and a 5 m cable length, allowing secure mating and flexible routing in tight spaces. The compact zinc housing and single-key design reduce misalignment and simplify field installation.
It is rated for 4 A at 300 Vdc, with a four-pole configuration and #22 AWG conductors. The 5 m cable length supports typical control and sensing loads without excessive splices.
Yes. It features IP68 ingress protection and is intended for Ordinary/Non-Hazardous locations, offering reliable performance in washdown-prone manufacturing areas.
The cordset complies with NEC/CEC IEC standards and offers NEMA ratings of 1, 3, 4, 6P, and 13, ensuring broad regulatory compatibility for industrial applications.
It reduces wiring complexity, saves space with a compact form factor, lowers maintenance through rugged IP68 protection and durable zinc housing, and accelerates commissioning in automation projects thanks to a straightforward, reliable connection.
