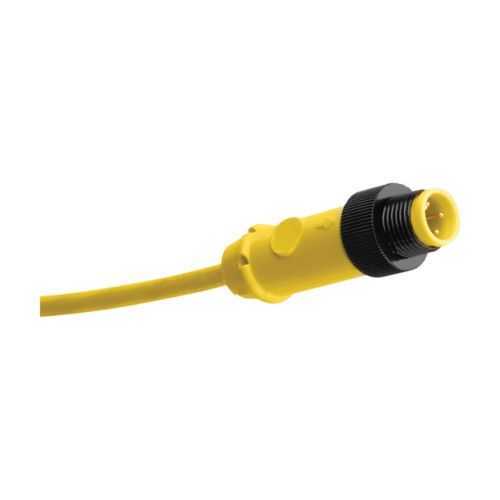

Eaton Crouse-Hinds DM4H2ME006M LynxPOWER Cordset - IP68
Part Number: DM4H2ME006M
Quick Summary
Eaton Crouse-Hinds LynxPOWER Micro-Mini cordset provides compact DC power and signal connectivity for industrial automation. In tight control panels and mobile equipment, space constraints and unreliable wiring choices slow project timelines. This cordset features IP68 protection and CE compliance, with IEC/NEC/CEC standards and broad NEMA compatibility to support diverse global installations. By standardizing on LynxPOWER, you gain predictable installation, reduced maintenance, and scalable connectivity for sensors, controllers, and actuators. Key attributes include 0.6 m length, #22 AWG conductors, 4 A current rating, and 300 Vdc rating, which improve wiring density and safety margins. Its passive, single-key, four-pole design simplifies field installation and reduces mis-wiring risk in dusty, washdown environments.
Product Information
Extended Description
DM4H2ME006M Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset, 4A, #22 AWG, Male, 90° plug to female, straight plug, Passive, Single key, Zinc, Four-pole, DC, 300 Vdc, 0.6 m cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset
Catalog Number
DM4H2ME006M
Product Length/Depth
1.7 in
Product Height
1.43 in
Product Width
0.64 in
Product Weight
1 lb
UPC
662275375308
Area classification
Ordinary/Non-Hazardous Locations
Standards type
IEC NEC/CEC
NEMA Rating
1 6P 13 3 4
Ingress protection (IP) ratings
IP68
Connector type
Passive
Type
DC
Number Of Poles
Four-pole
Configuration
Male, 90° plug to female, straight plug
Gender
Male and female
Cable/wire size
#22 AWG
Cable length
0.6 m
Key type
Single key
Amperage Rating
4 A
Voltage rating
300 Vdc
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - DM4H2ME006M
Feature: Four-pole DC design with #22 AWG conductors and 0.6 m cable length. Business Impact: Enables compact power and signal routing in small control cabinets, reducing panel depth and cable clutter. Application: Control panels for PLCs, sensors, and actuators in automotive manufacturing and process automation. Feature: IP68 housing with zinc construction. Business Impact: Delivers rugged, corrosion-resistant performance in washdown and harsh environments, lowering maintenance costs and downtime. Application: Outdoor enclosures, food & beverage processing, and chemical plants where moisture exposure is a concern. Feature: Male 90° plug to female straight plug with a single key. Business Impact: Simplifies assembly and minimizes mis-wiring, accelerating installation and improving commissioning accuracy. Application: Field wiring in compact switchgear and distributed I/O networks. Feature: DC 300 Vdc rating and 4 A amperage. Business Impact: Supports reliable power and signal transfer for low-voltage automation circuits, enhancing device compatibility and safety margins. Application: Sensors, actuators, and logic controllers in machine centers. Feature: IEC NEC/CEC compliance and ordinary location rating. Business Impact: Assures regulatory alignment across global facilities, easing procurement and reducing compliance risk. Application: Machinery panels and panel-to-device connections in industrial environments. These attributes collectively provide a robust, space-efficient, and standards-aligned cordset option for engineers optimizing automation wiring.
Get a Quick Quote for a Eaton Crouse-Hinds DM4H2ME006M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DM4H2ME006M?
Enquire Now
FAQs
Plan for a 0.6 m cable length to optimize space, avoid sharp bends, and maintain minimum bend radii to protect the #22 AWG conductors. Use the single-key, four-pole configuration to prevent mis-wiring, and position the IP68-sealed connector where it remains protected from direct washdown spray. Ensure correct polarity and secure mounting to minimize strain on the cable.
DM4H2ME006M is rated for 4 A with a 300 Vdc voltage specification, making it suitable for low-voltage DC control circuits, sensors, and actuators. Its four-pole configuration supports combined power and signal paths, while the passive design reduces potential failure points. Always verify compatible device ratings and the enclosure environment to maintain reliability.
Yes. The DM4H2ME006M features IP68 ingress protection and zinc housing, which provide robust resistance to water and dust in washdown areas. It is designed for ordinary/non-hazardous locations, offering reliable performance in factory floors, outdoor facilities, and sanitation-critical zones when properly installed with compatible panels and enclosures.
This cordset aligns with CE and IEC/NEC/CEC standards, with NEMA ratings supporting broad regulatory coverage. Its IP68 rating further confirms environmental protection, while the ordinary location classification ensures suitability for standard manufacturing environments. These certifications help streamline procurement, installation, and regulatory audits across multinational sites.
The four-pole DC cordset reduces wiring complexity and commissioning time, while IP68 zinc housing minimizes maintenance and downtime in harsh environments. Standardizing on this model enables easier parts management, faster replacements, and consistent performance across machines, contributing to lower total cost of ownership and improved project predictability in automation initiatives.
