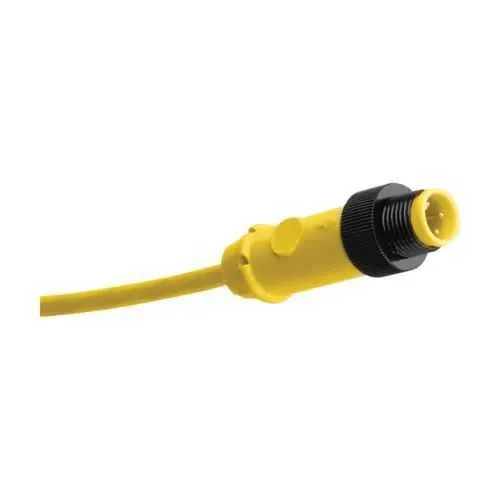

Eaton Crouse-Hinds DM4R2ME020M LynxPOWER Micro-Mini cordset - IP68
Part Number: DM4R2ME020M
Quick Summary
Eaton Crouse-Hinds LynxPOWER Micro-Mini cordset delivers reliable DC power connectivity for machinery and control panels. When integrating compact power cords into tight enclosures, field reliability and corrosion resistance are common pain points. This cordset meets NEC/CEC IEC standards, offers IP68 ingress protection, and supports rugged NEMA configurations for harsh industrial environments. Designed as a passive, four-pole DC connector with a 2 m cable and #22 AWG conductors, it enables fast installations, reduces downtime, and eases maintenance across automation and motion control applications.
Product Information
Extended Description
DM4R2ME020M Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset, 4A, #22 AWG, Male, straight plug to female, straight plug, Passive, Single key, Zinc, Four-pole, DC, 300 Vdc, 2 m cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset
Catalog Number
DM4R2ME020M
Product Length/Depth
2.44 in
Product Height
0.64 in
Product Width
0.64 in
Product Weight
1 lb
UPC
662275944252
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
1 3 13 6P 4
Ingress protection (IP) ratings
IP68
Connector type
Passive
Type
DC
Number Of Poles
Four-pole
Configuration
Male, straight plug to female, straight plug
Gender
Male and female
Cable/wire size
#22 AWG
Cable length
2 m
Key type
Single key
Amperage Rating
4 A
Voltage rating
300 Vdc
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - DM4R2ME020M
Feature: Four-pole DC, passive connector with #22 AWG conductors and a 2 m length → Business Impact: Delivers stable power with compact routing, minimizing wiring complexity and potential mis-wiring in control cabinets → Application: Robotics, CNC machines, and conveyor systems where space is at a premium. Feature: IP68 protection and rugged zinc housing → Business Impact: Protects against dust and water ingress in washdown environments, extending service life and lowering repair costs → Application: Food-and-beverage lines, packaging, and outdoor equipment exposed to moisture. Feature: 300 Vdc rating and 4 A amperage → Business Impact: Supports common automation loads with safe, standards-compliant power delivery, reducing overdesign and cost → Application: Sensor arrays, drive interfaces, and panel power distribution. Feature: Four-pole configuration with male straight to female straight connectors and single key → Business Impact: Simplifies mating, ensures correct orientation, lowers installation time, and reduces restart risk after maintenance → Application: Plug-and-play solutions in machine tooling and automated lines. Feature: EMI-robust, NEC/CEC IEC compliant design and standard NEMA ratings → Business Impact: Eases cross-region compliance, speeds project approvals, and supports scalable deployment across multiple sites → Application: Global manufacturing facilities seeking uniform electrical standards. Insight: The LynxPOWER ecosystem is designed for quick-connect reliability, enabling technicians to field-install or replace cordsets with confidence during preventive maintenance or upgrades.
Get a Quick Quote for a Eaton Crouse-Hinds DM4R2ME020M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DM4R2ME020M?
Enquire Now
FAQs
The DM4R2ME020M is designed as a passive, four-pole DC cordset with a male straight plug to a female straight plug, matched to the LynxPOWER family. Its #22 AWG conductors and 2 m length provide straightforward field replacement and compatibility with standard LynxPOWER receptacles and modular enclosures, simplifying panel integration and reducing rework during machine upgrades.
Key specs are a 4 A amperage rating, 300 Vdc voltage rating, and #22 AWG wire. The 2 m cable length supports flexible routing in compact control panels, while the four-pole configuration ensures reliable DC power delivery to sensors, drives, and interconnects. These figures help you calculate heat dissipation, wire gauge adequacy, and safety margins in your design.
Yes. The DM4R2ME020M carries IP68 ingress protection, indicating excellent resistance to dust and water ingress. It is intended for ordinary/non-hazardous locations per the area classification and adheres to NEC/CEC IEC standards, making it suitable for washdown zones and exposure to moisture in many industrial settings.
This cordset aligns with NEC/CEC and IEC standards and is design-verified for appropriate NEMA ratings (including configurations like 1, 3, 13, 6P, 4). Such certifications streamline multi-region deployments, reduce engineering review time, and help ensure safe, compliant integration in global manufacturing environments.
The rugged IP68-rated housing, robust four-pole design, and standard 2 m cord length minimize maintenance cycles by resisting corrosion and ingress, while offering quick-connect mating that reduces downtime during replacements or upgrades. The result is improved uptime, lower labor costs for servicing, and a faster return on investment in high-availability automation lines.
