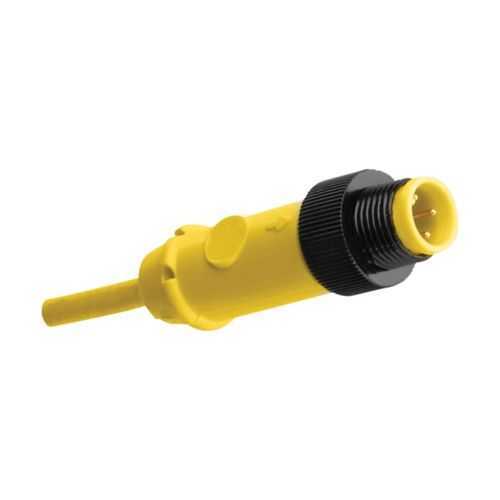

Eaton Crouse-Hinds DM4R2ME050M LynxPOWER Micro-Mini Cordset - IP68
Part Number: DM4R2ME050M
Quick Summary
LynxPOWER Micro-Mini cordset is a compact DC power and signal connector for automation equipment in harsh environments. Engineers often struggle with tight spaces and moisture exposure inside control panels. It meets NEC/CEC IEC standards, NEMA ratings up to 13, and IP68 protection, supporting safe, continuous operation. With a 5 m cable, #22 AWG conductors, and a four-pole, single-key design, this cordset delivers reliable power and signal while simplifying installation and maintenance.
Product Information
Extended Description
DM4R2ME050M Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset, 4A, #22 AWG, Male, straight plug to female, straight plug, Passive, Single key, Zinc, Four-pole, DC, 300 Vdc, 5 m cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset
Catalog Number
DM4R2ME050M
Product Length/Depth
2.44 in
Product Height
0.64 in
Product Width
0.64 in
Product Weight
0.48 lb
UPC
662275951731
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
1 3 4 6P 13
Ingress protection (IP) ratings
IP68
Connector type
Passive
Type
DC
Number Of Poles
Four-pole
Configuration
Male, straight plug to female, straight plug
Gender
Male and female
Cable/wire size
#22 AWG
Cable length
5 m
Key type
Single key
Amperage Rating
4 A
Voltage rating
300 Vdc
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - DM4R2ME050M
Feature is a compact four-pole DC cordset with a zinc housing and IP68 protection. Business impact is improved environmental resilience and reduced downtime in damp or dusty locations. Application includes control panels, conveyors, and robotics where space is limited. Feature delivers 4 A, 300 Vdc capability with a 5 m cable length, enabling longer runs without additional junctions and lowering installation costs. Application-specific benefit is faster commissioning and fewer field failures due to rugged mating and clear keying. Feature offers a male straight plug to female straight plug configuration with a single key for correct orientation, improving reliability in high-vibration settings. Application note: suitable for ordinary/non-hazardous locations, meeting NEC/CEC IEC standards for industrial connectivity. Industry context: dependable DC power and signal paths reduce maintenance cycles and extend equipment life.
Get a Quick Quote for a Eaton Crouse-Hinds DM4R2ME050M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DM4R2ME050M?
Enquire Now
FAQs
Installers should mate the male straight plug to the female straight plug, ensuring the single key aligns with the mating connector. Use the 5 m cable to reach the device, preserving a tidy panel layout. Respect the four-pole configuration and keep #22 AWG conductors within the rated 300 Vdc and 4 A to prevent overheating. Secure the zinc housing to a suitable panel cutout and confirm IP68 sealing during final enclosure assembly.
Yes. The cordset complies with NEC/CEC IEC standards and is rated IP68 for ingress protection, enabling operation in ordinary locations with exposure to moisture or dust. This compatibility supports safe use in automated equipment, control panels, and industrial enclosures, reducing regulatory risk and ensuring consistent performance across diverse installations.
The DM4R2ME050M is a four-pole, DC-rated cordset designed to carry power and signals in a single, compact cable assembly. With a 300 Vdc rating and 4 A current capacity, it supports powering sensors and actuators while transmitting control signals. The single-key orientation and robust zinc housing simplify installation and mating in dynamic machinery environments.
This cordset supports Ordinary/Non-Hazardous Locations classifications and meets NEC/CEC IEC standards, with IP68 protection and NEMA ratings up to 13. It is suitable for non-hazardous industrial spaces such as manufacturing floors, control cabinets, and assembly lines, providing safe use under typical machine enclosure conditions.
Adopting the DM4R2ME050M improves uptime through IP68-rated protection and ruggedized zinc housing, reducing water ingress and corrosion-related failures. The 5 m length and #22 AWG wiring streamline wiring layouts, lowering installation time and spare part needs. Its four-pole DC configuration minimizes connectors, cuts weight, and simplifies maintenance with a reliable, plug-and-play mating system.
