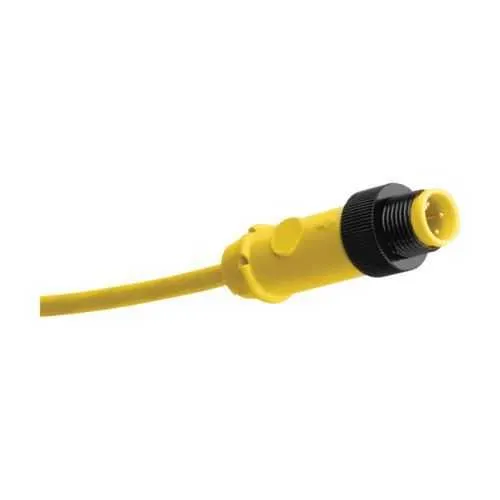

Eaton DM4T3ME006M Micro-Mini Cordset - IP68 Rated
Part Number: DM4T3ME006M
Quick Summary
DM4T3ME006M LynxPOWER Micro-Mini cordset provides durable DC power connectivity for automation panels. In compact installations, space constraints and moisture exposure can undermine reliability. IP68 ingress protection, Ordinary/Non-Hazardous area classification, and IEC NEC/CEC compliance ensure safe, compliant operation in demanding environments. This solution supports faster wiring, easier maintenance, and longer service life for panel builders and OEMs. With its rugged zinc housing, single-key design, and compact four-pole DC configuration, you gain reliable power paths that minimize downtime and total cost of ownership while maintaining robust industrial connectivity.
Product Information
Extended Description
DM4T3ME006M Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset, 4A, #18 AWG, Male, straight plug to female, 90° plug, Passive, Single key, Zinc, Four-pole, DC, 300 Vdc, 0.6 m cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset
Catalog Number
DM4T3ME006M
Product Length/Depth
2.44 in
Product Height
0.64 in
Product Width
0.64 in
Product Weight
1 lb
UPC
662275967893
Area classification
Ordinary/Non-Hazardous Locations
Standards type
IEC NEC/CEC
NEMA Rating
1 4 6P 3 13
Ingress protection (IP) ratings
IP68
Connector type
Passive
Type
DC
Number Of Poles
Four-pole
Configuration
Male, straight plug to female, 90° plug
Gender
Male and female
Cable/wire size
#18 AWG
Cable length
0.6 m
Key type
Single key
Amperage Rating
4 A
Voltage rating
300 Vdc
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - DM4T3ME006M
Feature: Four-pole DC connector with #18 AWG cable and 0.6 m length delivers a compact, high-integrity power path. Business Impact: Reduces voltage drop, simplifies routing, and lowers assembly time in control panels. Application: Industrial automation, conveyors, and robotics where space is at a premium. Feature: Passive connector with male straight plug to female 90° plug configuration enables versatile mounting angles. Business Impact: Improves install flexibility and speeds field wiring while minimizing mating errors. Application: Enclosures with restricted access or tight panel envelopes. Feature: IP68 ingress protection and zinc body provide rugged durability. Business Impact: Withstands washdowns, dust, and moisture, lowering maintenance costs and unplanned downtime. Application: Harsh environments in manufacturing (non-hazardous locations). Feature: Four-pole DC design and 300 Vdc rating support safe, reliable power delivery for small devices and sensors. Business Impact: Ensures consistent performance under load, reducing nuisance trips and rework. Application: Sensor networks, actuators, and low-voltage DC control loops. Feature: 4 A amperage rating with #18 AWG conductors and 0.6 m length balance flexibility and capacity. Business Impact: Enables compact, feature-rich cabling without oversizing; improves routing in dense panels. Application: Short-run device-to-controller connections in automation systems.
Get a Quick Quote for a Eaton Crouse-Hinds DM4T3ME006M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DM4T3ME006M?
Enquire Now
FAQs
Ensure the enclosure provides enough clearance for the 0.6 m cable and allows proper mating of the Male straight plug to Female 90° plug. Verify IP68 seals are intact after installation and follow the single-key alignment to prevent mis-mating. Use appropriate strain relief and secure mounting to maintain ingress protection and prevent cable damage in washdown environments.
Yes. The cordset is designed for IEC NEC/CEC compliance and is suitable for Ordinary/Non-Hazardous Locations. It also aligns with NEMA ratings for robust industrial use, ensuring reliable performance within permitted environmental classifications.
The connector is four-pole, DC type, rated for 4 A at up to 300 Vdc, with #18 AWG conductors and a cable length of 0.6 m. These specs support compact DC power delivery to sensors, actuators, and control devices in typical automation applications.
Ideal for control panels, robotics, conveyors, and other automation equipment where space is limited and reliability is critical. Its IP68 sealing and zinc housing make it well suited for non-hazardous environments with washdown or dusty conditions.
The IP68 rating and zinc construction provide excellent dust and moisture resistance, reducing corrosion risk. The single-key, four-pole design simplifies mating, speeds field replacements, and helps minimize downtime in ongoing production lines.
