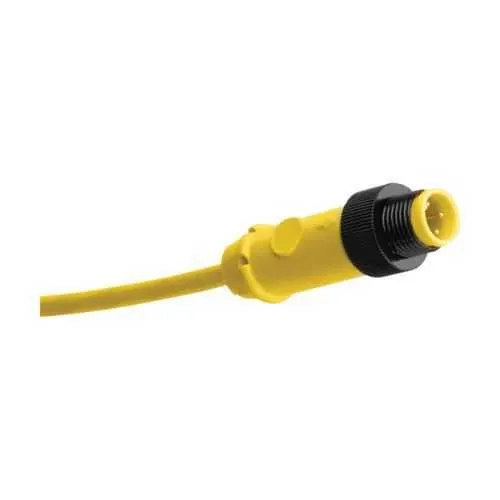

Eaton DM4T3ME010M LynxPOWER Micro-Mini Cordset - IP68
Part Number: DM4T3ME010M
Quick Summary
DM4T3ME010M is a LynxPOWER Micro-Mini cordset designed for reliable DC power and signal connections in compact automation panels. Engineers often struggle with space constraints and the need for sealed, robust connectors in control racks. It carries IP68 protection, a NEMA 6P rating, and IEC NEC/CEC standards, supporting safety and reliability in harsh environments. The 1 m cable length and zinc housing enable easy routing, reducing installation time and field wiring costs. With four-pole, #18 AWG conductors and a single-key, straight-to-90° configuration, it suits compact machine cabinets and conveyors while staying economical and easy to source for ongoing maintenance.
Product Information
Extended Description
DM4T3ME010M Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset, 4A, #18 AWG, Male, straight plug to female, 90° plug, Passive, Single key, Zinc, Four-pole, DC, 300 Vdc, 1 m cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset
Catalog Number
DM4T3ME010M
Product Length/Depth
2.44 in
Product Height
0.64 in
Product Width
0.64 in
Product Weight
1 lb
UPC
662275379603
Area classification
Ordinary/Non-Hazardous Locations
Standards type
IEC NEC/CEC
NEMA Rating
6P 3 1 13 4
Ingress protection (IP) ratings
IP68
Connector type
Passive
Type
DC
Number Of Poles
Four-pole
Configuration
Male, straight plug to female, 90° plug
Gender
Male and female
Cable/wire size
#18 AWG
Cable length
1 m
Key type
Single key
Amperage Rating
4 A
Voltage rating
300 Vdc
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - DM4T3ME010M
Feature: Four-pole, 4 A, 300 Vdc DC power and signal capability with a 1 m cable. Business Impact: Delivers reliable power to sensors and controllers with minimal voltage drop in compact layouts, minimizing rework and downtime. Application: Ideal for control panels and automation racks where space is tight and reliability matters. Feature: IP68 sealing and NEMA 6P compatibility. Business Impact: Shields sensitive DC connections from dust and water, reducing maintenance, corrosion, and unexpected failures in harsh environments. Application: Outdoor or wash-down areas, wet workshops, and enclosed control cabinets. Feature: #18 AWG conductors and a 1 m cable length. Business Impact: Supports flexible routing and reduced weight, enabling cleaner harnesses and lower harness costs. Application: Short-run DC power distribution to sensors, actuators, and controllers. Feature: Configuration with male straight plug to female, 90° plug and single key. Business Impact: Ensures correct orientation, minimizes mis-wiring, and speeds field terminations. Application: Quick installation in confined spaces and retrofit projects. Feature: Zinc housing and passive four-pole connector with IEC NEC/CEC compliance. Business Impact: Delivers rugged durability and regulatory confidence, lowering spare-part and warranty costs. Application: Machinery and automation environments requiring durable, rule-compliant connectivity.
Get a Quick Quote for a Eaton Crouse-Hinds DM4T3ME010M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DM4T3ME010M?
Enquire Now
FAQs
What to check: confirm connector compatibility with existing LynxPOWER components, ensure the 1 m cable length fits your panel depth, and verify correct orientation using the single-key configuration. The 90° plug option aids tight spaces, while IP68 sealing protects against dust and moisture during panel mounting and wash-down cycles.
Four-pole, passive DC connector rated at 4 A and 300 Vdc with #18 AWG conductors. 1 m cable length, zinc housing, and IP68 protection. It uses a male straight plug to female, 90° plug configuration, designed for reliable DC power distribution in automation equipment.
Yes. The cordset offers NEMA 6P compatibility and IP68 sealing, making it suitable for environments that require resistance to dust, water ingress, and rugged service in ordinary/non-hazardous locations.
The product aligns with IEC NEC/CEC standards and supports ordinary/non-hazardous area classifications. This simplifies regulatory approvals for industrial automation projects and ensures compatibility with common electrical codes in many regions.
The DM4T3ME010M reduces field wiring time with a plug-and-play, single-key interface, lowers spares and maintenance costs due to IP68 sealing, and minimizes downtime from environmental exposure. Its compact, durable design improves panel density and extends service life for sensors, actuators, and controllers.
