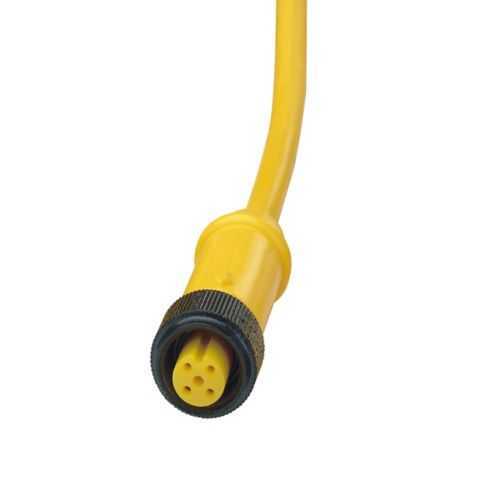

Eaton Crouse-Hinds DM5C2ME050M LynxPOWER Micro-Mini cordset - IP68
Part Number: DM5C2ME050M
Quick Summary
LynxPOWER Micro-Mini cordset DM5C2ME050M provides robust DC connectivity for industrial automation and control panels. When panel space is tight, you need a compact, rugged cordset that doesn’t compromise on reliability or safety. It offers IP68 protection and NEC/CEC IEC compliance, with NEMA ratings compatible with ordinary locations, supporting many non-hazardous environments. With a 5 m cable length and a 4 A, 300 Vdc rating, this cordset enables scalable machine designs while reducing wiring complexity and installation time for panel builders and system integrators.
Product Information
Extended Description
DM5C2ME050M Eaton Crouse-Hinds: Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset, 4A, #22 AWG, Female, straight plug, internal thread, pigtail, Passive, Single key, Zinc, Five-pole, DC, 300 Vdc, 5 m cable length
Product Name
Eaton Crouse-Hinds series LynxPOWER Micro-Mini cordset
Catalog Number
DM5C2ME050M
Product Length/Depth
2.25 in
Product Height
0.64 in
Product Width
0.64 in
Product Weight
1 lb
UPC
662275376206
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC IEC
NEMA Rating
13 3 6P 4 1
Ingress protection (IP) ratings
IP68
Connector type
Passive
Type
DC
Number Of Poles
Five-pole
Configuration
Female, straight plug, internal thread, pigtail
Gender
Female
Cable/wire size
#22 AWG
Cable length
5 m
Key type
Single key
Amperage Rating
4 A
Voltage rating
300 Vdc
Material
Zinc
LynxPower industrial connectivity solutions
Mini-Line and Micro-Mini Cordsets, Receptacles and Multi-port Boxes catalog page
Eaton Specification Sheet - DM5C2ME050M
Feature: Five-pole DC configuration delivers dedicated control power with clear signal separation. Business Impact: Reduces cross-talk and simplifies wiring harnesses, improving panel reliability. Application: Ideal for servo drives and I/O modules in compact cabinets. Feature → Business Impact → Application: 5 m cable length minimizes intermediate junctions, speeding installation and enabling remote sensing and actuation. Feature → Business Impact → Application: Zinc housing with passive, single-key, internal-thread connector improves ruggedness and ease of mating, lowering maintenance costs. Feature → Business Impact → Application: #22 AWG conductors rated 4 A at 300 Vdc balances compact wiring with reliable power delivery for small- to mid-size automation subsystems. Feature → Business Impact → Application: IP68 protection and non-hazardous area classification reduce enclosure ingress risk, supporting long-term uptime in harsh environments. Feature → Business Impact → Application: Internal pigtail and straight plug simplify harness integration within LynxPOWER ecosystems and OEM assemblies.
Get a Quick Quote for a Eaton Crouse-Hinds DM5C2ME050M
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DM5C2ME050M?
Enquire Now
FAQs
The DM5C2ME050M uses a female, straight plug with internal threading and a pigtail, plus a single-key alignment to ensure correct mating. It features a 5 meter cable length and #22 AWG conductors rated at 4 A and 300 Vdc, designed for straightforward integration into LynxPOWER solutions and standard panel wiring harnesses.
Electrical specs include a five-pole DC configuration, 4 A amperage rating, 300 Vdc voltage rating, #22 AWG conductors, and a 5 m cable length. The connector is passive with a female, straight plug and internal thread, suitable for clean, low-loss DC power delivery in control systems.
Yes. The five-pole DC design supports control power and signals for servo drives, sensors, and I/O panels. The 5 m length provides flexible routing, while the IP68 rating and zinc housing deliver rugged reliability in ordinary/non-hazardous locations, fitting typical industrial automation installations.
The DM5C2ME050M is compatible with NEC/CEC IEC standards and has IP68 ingress protection. It is listed for Ordinary/Non-Hazardous Locations with NEMA ratings including 13, 3, 6P, 4, and 1, aligning with common industrial enclosure requirements and reducing regulatory concerns for panel builders.
The rugged zinc housing and IP68 protection minimize ingress-related maintenance, while the 5 m cable reduces the need for additional jumpers and connectors, lowering installation time and total cost of ownership. The durable five-pole design also supports long service life in LynxPOWER ecosystems, aiding predictable ROI for OEMs and integrators.
