Eaton Crouse-Hinds DS513 J3 J3 LED SA - NEC/CEC

Part Number: DS513 J3 J3 LED SA
DS513 J3 J3 LED SA
Manufacturer
Eaton Crouse-Hinds
Part number
DS513 J3 J3 LED SA
Category

Quick Summary

DS513 J3 J3 LED SA is a pilot light cover and device sub-assembly designed for hazardous-area control stations. Engineers often struggle to secure a reliable, factory-sealed lighting interface that withstands vibration and corrosive atmospheres in explosive environments. This unit carries NEC/CEC compliance with Hazardous/Classified Locations designation and a robust NEMA rating, delivering predictable performance and safer operation. By pairing Eaton Crouse-Hinds DSD components with copper-free aluminum and LED illumination, you gain maintenance savings and faster, risk-reducing installations. Its green color and single-button interface simplify panel layouts and spare part inventories for industrial automation projects. This translates to reduced downtime, improved safety, and predictable procurement cycles for maintenance teams.

Product Information

Extended Description

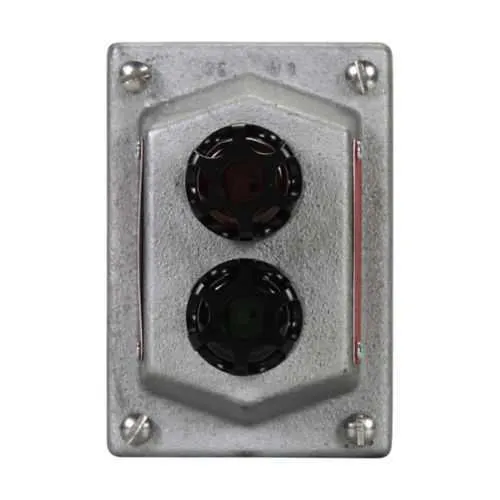

DS513 J3 J3 LED SA Eaton Crouse-Hinds: Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly, Green/green, Copper-free aluminum, 1 button, LED, factory sealed, Double pilot light, single pushbutton combo
Product Name
Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly
Catalog Number
DS513 J3 J3 LED SA
Product Weight
3 lb
UPC
662276706309
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class II, Division 1 Class I, Division 2 Class II, Division 2 Class I, Division 1 Class III
NEMA Rating
9 3 7
Number of cover buttons
1
Color
Green/Green
Material
Copper-free aluminum
Special features
LED, factory sealed
Type
Double pilot light, single pushbutton combo
DSD and DSDX Cover and Device Sub-assemblies catalog page DSD Explosionproof Cover and Device Sub-assemblies Canadian certification DSD Explosionproof Cover and Device Sub-assemblies Canadian certification IF 1424 - DSD, GFS, CPS and ENR Series Replacement Covers IF 1424 - DSD, GFS, CPS and ENR Series Replacement Covers IF 1424 - DSD, GFS, CPS and ENR Series Replacement Covers Eaton Specification Sheet - DS513 J3 J3 LED SA
Copper-free aluminum construction delivers corrosion resistance and lightweight durability, reducing enclosure wear in washdown zones and humid plant floors. Business impact: longer service life and lower maintenance costs. Application: fits DSD cover and device sub-assemblies in hazardous-area panels, easing retrofit projects and OEM integrations. LED illumination with a factory-sealed design minimizes moisture ingress and ensures consistent visibility in low-light or vibration-prone environments. Business impact: fewer field failures and longer LED life, lowering replacement cycles. Application: ideal for control stations, indicator panels, and instrument enclosures in chemical plants and offshore facilities. Single pushbutton with double pilot light delivers a simple operator interface while freeing space in crowded panels. Business impact: faster commissioning and reduced training time for operators. Application: control panels in hazardous areas, where quick status checks improve process safety. 1-button configuration and green/green color help standardize panel aesthetics and reduce wiring errors during installation. Business impact: consistent wiring diagrams and faster repair or expansion. Application: electrical panels across process industries. NEC/CEC compliance, Area classification ratings, and NEMA 9 3 7 offer regulatory peace of mind for hazardous locations; installation instructions IF1424 provide quick replacement cover guidance. Business impact: lower compliance risk and faster maintenance workflows. Application: explosion-protected machinery, chemical processing, and offshore platforms.

Get a Quick Quote for a Eaton Crouse-Hinds DS513 J3 J3 LED SA

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds DS513 J3 J3 LED SA? Enquire Now

FAQs

DS513 J3 J3 LED SA is designed as a DSD-compatible pilot light cover and device sub-assembly. Compatibility is confirmed through Eaton’s DSD series guidelines and IF1424 replacement cover instructions, ensuring the module drops into standard hazardous-area enclosures without modification. When planning a retrofit, verify enclosure rating, conductor sizing, and available space for the 1-button, double-pilot configuration to maintain clear status indication and reliable operation in corrosive environments.
The DS513 J3 J3 LED SA carries NEC/CEC compliance for hazardous locations with classifications for Class I, II, and III, including Division 1 and Division 2 ratings. It also aligns with hazardous-area area classifications and a NEMA rating of 9 3 7. The UPC 662276706309 supports traceability for procurement. Always cross-check local code requirements and installation manuals for your specific site conditions.
Yes. The DS513 J3 J3 LED SA is designed for Hazardous/Classified Locations with NEC hazardous ratings that cover Class I, Division 1 environments, among others. Its copper-free aluminum construction and factory-sealed LED design help resist moisture and vibration, enabling safer operation and longer service life in chemical processing facilities. Always confirm enclosure compatibility and follow IF1424 installation guidance during replacement or retrofit.
Reduce downtime by using the DSD cover and device sub-assembly approach with the DS513 J3 J3 LED SA. Follow the IF1424 replacement covers instruction sheets to match the replacement hardware, wiring diagrams, and seal integrity. Maintain spare DSD kits, verify color coding (Green/Green), and ensure your control panel space supports the 1-button, double-pilot interface to minimize re-wiring and re-testing time.
The DS513 J3 J3 LED SA delivers measurable value by reducing maintenance frequency due to its LED reliability and factory sealing, lowering field failures in hazardous environments. Its standardized 1-button interface simplifies operator training and reduces wiring mistakes, while NEC/CEC and NEMA ratings mitigate compliance risk. Overall, you gain faster deployments, easier replacements, and lower total cost of ownership in process and safety-critical systems.
