Eaton DS513 J3 J6 SA DSD pilot light cover - NEC/CEC
Part Number: DS513 J3 J6 SA
Manufacturer
Eaton Crouse-Hinds
Part number
DS513 J3 J6 SA
Category
Quick Summary
DSD pilot light cover for hazardous locations provides reliable status indication in control panels and control stations. Developers and maintenance teams struggle to source enclosures that survive harsh environments without sacrificing accessibility or serviceability. It meets NEC/CEC hazardous location classifications including Class I, II, III with Division 1 and 2, plus a NEMA 9 rating. Factory-sealed copper-free aluminum construction minimizes corrosion and field maintenance, while the 1-button double pilot light design streamlines installation and diagnostics. These traits support reliable operation in hazardous-area automation projects, reducing downtime and total cost of ownership. Plus, compatibility with standard DSD control-station configurations helps streamline procurement and field retrofit.
Product Information
Extended Description

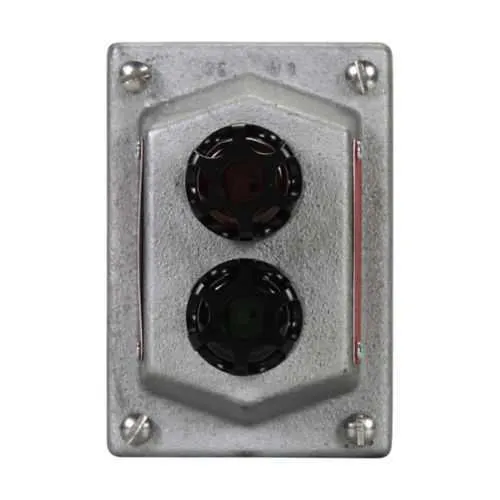

DS513 J3 J6 SA Eaton Crouse-Hinds: Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly, Green/amber, Copper-free aluminum, 1 button, Factory sealed, Double pilot light, single pushbutton combo
Product Name
Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly
Catalog Number
DS513 J3 J6 SA
Product Weight
3 lb
UPC
662276058507
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class II, Division 1 Class I, Division 2 Class III Class II, Division 2 Class I, Division 1
NEMA Rating
9 3 7
Number of cover buttons
1
Color
Green/Amber
Material
Copper-free aluminum
Special features
Factory sealed
Type
Double pilot light, single pushbutton combo
DSD and DSDX Cover and Device Sub-assemblies catalog page
DSD Explosionproof Cover and Device Sub-assemblies UL certification
DSD Explosionproof Cover and Device Sub-assemblies UL certification
IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations
IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations
IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations
Eaton Specification Sheet - DS513 J3 J6 SA
Copper-free aluminum housing provides long-term corrosion resistance and lighter weight for easier installation, reducing mounting wear and downtime in maritime or chemical plants. In a factory-sealed design, moisture and dust ingress are minimized, lowering field repair frequency and preserving control reliability. The 1-button, double pilot light with a green/amber indication delivers clear, at-a-glance status in noisy or high-vibration environments, improving operator response times and safety. The compact cover footprint simplifies panel layouts and accelerates commissioning in crowded control panels. Compliance with NEC/CEC hazardous location ratings and NEMA protections translates to regulatory confidence, smoother procurement, and fewer late changes during retrofits. The product’s DSD lineage means compatible with Eaton Crouse-Hinds catalog pages, IF 899 installation sheets, and other control-station accessories, helping engineers standardize parts across facilities.
Get a Quick Quote for a Eaton Crouse-Hinds DS513 J3 J6 SA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DS513 J3 J6 SA?
Enquire Now
FAQs
DS513 J3 J6 SA is designed to integrate with Eaton Crouse-Hinds DSD family, supporting standard DSD cover variants and control-station assemblies. It accepts a single pushbutton with a double pilot light and comes in a factory-sealed copper-free aluminum enclosure, ensuring straightforward wiring and consistent fit with existing EDS/IF899 documentation and guidance.
Copper-free aluminum reduces corrosion risk in aggressive environments, extending service life and lowering maintenance requirements. The material also enables a lighter-weight, easier-to-handle assembly for installation in tight panels, while maintaining structural integrity and qualifying for hazardous-area ratings. This combination supports longer operation between service cycles and reduces spare-part inventories.
The DS513 J3 J6 SA meets NEC/CEC hazardous location classifications including Class I, Division 1 and Class II, Division 1/2, Class III, plus a NEMA rating of 9, 3, and 7. These approvals support regulatory compliance and simplify procurement by aligning with common industrial safety specifications.
Yes. The unit is designed for hazardous-area applications typical of offshore platforms, marine facilities, and chemical processing sites, combining sealed construction, corrosion resistance, and NEC/CEC compliance to ensure reliable operation and minimal maintenance in demanding environments.
Installation resources include the DSD catalog page and IF 899 instruction sheets, plus UL-related certification references. The factory-sealed design and simple 1-button operation reduce wiring time, commissioning effort, and field downtime, delivering lower total cost of ownership through quicker upgrades and easier retrofits across facilities.
