Eaton DS514 J1 SA ST SP - Hazardous Location, Class I Div 1
Part Number: DS514 J1 SA ST SP
Manufacturer
Eaton Crouse-Hinds
Part number
DS514 J1 SA ST SP
Category
Quick Summary
DS514 J1 SA ST SP is a hazardous-location pilot light cover and device sub-assembly for START/STOP control in industrial panels. In tough environments, technicians struggle with visibility, ingress protection, and maintenance costs. This unit carries NEC/CEC compliance and hazardous-area ratings, including Class I Division 1, Class II Division 1/2, Class III, and NEMA 3, 7, 9, signaling robust protection. Configured for copper-free aluminum construction and a factory-sealed design, it lowers maintenance costs and supports safe, compliant installations in hazardous enclosures. With two pushbuttons, a clearly marked START/STOP indicator, and a single pilot light, it blends reliability with operator clarity for demanding industrial applications.
Product Information
Extended Description

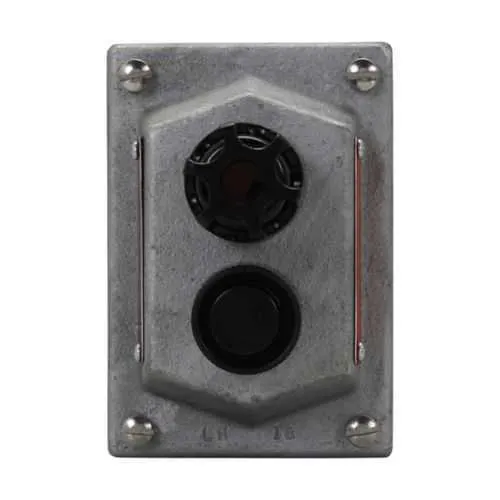

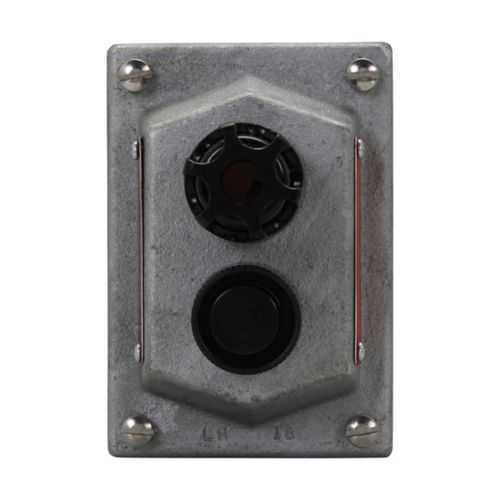

DS514 J1 SA ST SP Eaton Crouse-Hinds: Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly, Red, START/STOP, Copper-free aluminum, 2 buttons, Factory sealed, Double pushbutton, single pilot light
Product Name
Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly
Catalog Number
DS514 J1 SA ST SP
Product Length/Depth
9.38 in
Product Height
4.25 in
Product Width
6 in
Product Weight
3.72 lb
UPC
782274163130
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 1 Class II, Division 1 Class II, Division 2 Class III Class I, Division 2
NEMA Rating
3 7 9
Number of cover buttons
2
Indicating plate markings
START/STOP
Color
Red
Material
Copper-free aluminum
Special features
Factory sealed
Type
Double pushbutton, single pilot light
DSD and DSDX Cover and Device Sub-assemblies catalog page
DSD Explosionproof Cover and Device Sub-assemblies UL certification
DSD Explosionproof Cover and Device Sub-assemblies UL certification
IF 1424 - DSD, GFS, CPS and ENR Series Replacement Covers
IF 1424 - DSD, GFS, CPS and ENR Series Replacement Covers
IF 1424 - DSD, GFS, CPS and ENR Series Replacement Covers
Eaton Specification Sheet - DS514 J1 SA ST SP
Copper-free aluminum housing delivers corrosion resistance while reducing weight. This lowers wear on mounting hardware and extends enclosure life in salt spray or chemical environments, making it ideal for hazardous-area control panels in oil, gas, chemical, and marine facilities. The factory-sealed design protects sensitive components from dust, moisture, and explosive atmospheres, reducing ingress and extending service intervals while lowering maintenance costs in refineries and process plants. The two-button START/STOP configuration with a dedicated indicating plate provides clear operator feedback, helping reduce startup errors and improve process control in high-risk environments. NEC/CEC compliance and Class I, Division 1 (along with Class II/III and NEMA ratings 3/7/9) simplify procurement and regulatory assurance for North American installations. Documentation and compatibility with the DSD cover family shorten commissioning time and support retrofit projects with IF 1424 replacement covers and Eaton spec sheets.
Get a Quick Quote for a Eaton Crouse-Hinds DS514 J1 SA ST SP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DS514 J1 SA ST SP?
Enquire Now
FAQs
The DS514 J1 SA ST SP is designed for Eaton Crouse-Hinds DSD cover and device sub-assemblies and mates with standard 2-button motor control panels. It fits hazardous-area control applications and leverages the IF 1424 replacement covers for retrofit projects, ensuring a straightforward upgrade path in existing panels.
This unit carries NEC/CEC compliance with hazardous-location ratings including Class I Division 1, Class II Division 1/2, Class III, and NEMA 3, 7, 9. It is rated for Hazardous/Classified Locations and is UL-listed for use in demanding industrial environments.
Key specs include a length of 9.38 in, height of 4.25 in, width of 6 in, and weight of 3.72 lb. The device uses copper-free aluminum, features two cover buttons, and provides a START/STOP indication with a single pilot light in red.
By delivering a factory-sealed, corrosion-resistant enclosure with a clear START/STOP signaling path, it reduces ingress-related maintenance and startup errors. The dual-button design supports safer motor control in hazardous locations while meeting stringent NEC/CEC and NEMA requirements.
Relevant materials include the DSD catalog page, UL certification reports, IF 1424 installation sheets, and the Eaton specification sheet for DS514 J1 SA ST SP. These resources aid installation planning, qualification, and audit readiness.
