Part Number: DS514 J3 SA ST SP
Manufacturer
Eaton Crouse-Hinds
Part number
DS514 J3 SA ST SP
Category
Quick Summary
DS514 J3 SA ST SP is a pilot light cover and device sub-assembly designed for hazardous locations. Many engineers struggle with sealed, corrosion-resistant components that fail in Class I/Division environments. This unit carries NEC/CEC certifications and robust NEMA ratings to ensure safe operation and compliance. Designed for retrofit with EDS/DSD hardware, it reduces downtime and maintenance costs while improving safety. Its Green indicating plate marks START/STOP for quick status checks in busy control rooms. Copper-free aluminum and factory sealing resist dust, moisture, and chemical exposure common in hazardous facilities. The compact form supports straightforward installation in existing enclosures. When uptime matters, DS514 J3 SA ST SP delivers dependable performance.
Product Information
Extended Description

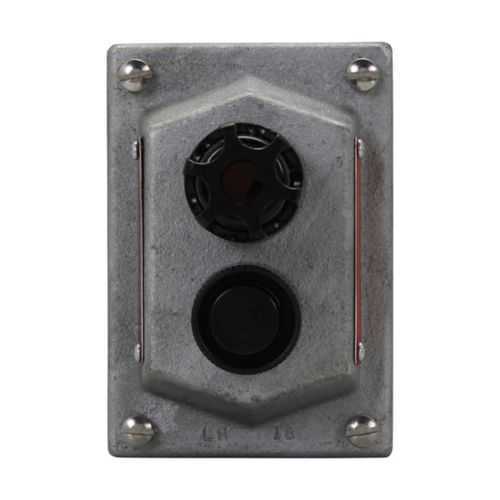

DS514 J3 SA ST SP Eaton Crouse-Hinds: Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly, Green, START/STOP, Copper-free aluminum, 2 buttons, Factory sealed, Double pushbutton, single pilot light
Product Name
Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly
Catalog Number
DS514 J3 SA ST SP
Product Weight
3.5 lb
UPC
782274204352
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class III Class I, Division 1 Class II, Division 1 Class II, Division 2
NEMA Rating
3 9 7
Number of cover buttons
2
Indicating plate markings
START/STOP
Color
Green
Material
Copper-free aluminum
Special features
Factory sealed
Type
Double pushbutton, single pilot light
DSD and DSDX Cover and Device Sub-assemblies catalog page
DSD Explosionproof Cover and Device Sub-assemblies UL certification
DSD Explosionproof Cover and Device Sub-assemblies UL certification
IF 1929 - Toggle Operator for EDS, EDSX, EFD, DSD and DSDX Series
IF 1929 - Toggle Operator for EDS, EDSX, EFD, DSD and DSDX Series
IF 1929 - Toggle Operator for EDS, EDSX, EFD, DSD and DSDX Series
Eaton Specification Sheet - DS514 J3 SA ST SP
Copper-free aluminum body with factory sealing provides corrosion resistance and long-term reliability in hazardous environments, reducing maintenance frequency and replacement costs while ensuring regulatory compliance across Class I, II, and III locations. This construct translates into measurable downtime reductions and safer field operation as panels endure dust, moisture, and chemical exposure. The dual-button interface with a single pilot light delivers intuitive local control, accelerating start/stop sequences and minimizing operator errors in high-pressure situations. Green indicating plate markings START/STOP offer immediate status visibility, supporting faster troubleshooting and improved process control in busy facilities. The unit is compatible with Eaton EDS/DSD control ecosystems, enabling straightforward retrofits and minimizing field engineering time. Its smaller footprint and lightweight copper-free aluminum design simplify installation in constrained enclosures while maintaining rugged performance. This combination of features aligns with industry best practices for hazardous-area equipment and reduces total cost of ownership over the asset lifecycle.
