Eaton Crouse-Hinds DSD947 J1 J11 - NEMA 7 9 3
Part Number: DSD947 J1 J11
Manufacturer
Eaton Crouse-Hinds
Part number
DSD947 J1 J11
Category
Quick Summary
DSD947 J1 J11 is a pilot light cover and device sub-assembly for hazardous-area control panels. Engineers often struggle with maintaining sealed enclosures, reliable visibility, and regulatory compliance in explosive atmospheres. This unit meets NEC/CEC standards, carries a NEMA rating of 7 9 3, and is suitable for Hazardous/Classified Locations. Designed for industrial automation and control panels, it delivers two pilot lights for clear status signaling while offering factory sealing. The feraloy iron alloy housing resists harsh environments, reducing maintenance, while standardization with the DSD family streamlines procurement and installation.
Product Information
Extended Description

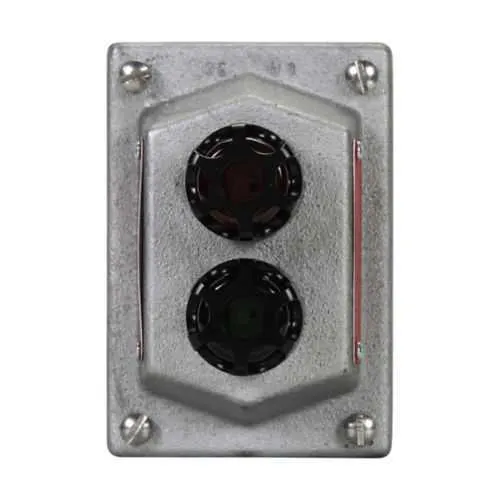

DSD947 J1 J11 Eaton Crouse-Hinds: Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly, Red/blue, Feraloy iron alloy, Factory sealed, Two pilot lights
Product Name
Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly
Catalog Number
DSD947 J1 J11
Product Length/Depth
5.1 in
Product Height
4.2 in
Product Width
6.5 in
Product Weight
4.13 lb
UPC
782274419138
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class II, Division 1 Class II, Division 2 Class I, Division 1 Class III Class I, Division 2
NEMA Rating
7 9 3
Color
Red/Blue
Material
Feraloy iron alloy
Special features
Factory sealed
Type
Two pilot lights
DSD and DSDX Cover and Device Sub-assemblies catalog page
DSD Explosionproof Cover and Device Sub-assemblies UL certification
DSD Explosionproof Cover and Device Sub-assemblies UL certification
IF 1929 - Toggle Operator for EDS, EDSX, EFD, DSD and DSDX Series
IF 1929 - Toggle Operator for EDS, EDSX, EFD, DSD and DSDX Series
IF 1929 - Toggle Operator for EDS, EDSX, EFD, DSD and DSDX Series
Eaton Specification Sheet - DSD947 J1 J11
Feature: Two pilot lights with red/blue color for immediate status indication → Business Impact: Reduces operator errors and improves response times in critical processes → Application: Control panels in hazardous areas and marine equipment. Feature: Factory sealed construction → Business Impact: Minimizes ingress, lowers maintenance costs, extends service life → Application: Explosion-proof enclosures in chemical plants and offshore facilities. Feature: Feraloy iron alloy housing → Business Impact: Exceptional ruggedness and corrosion resistance → Application: Harsh industrial environments. Feature: Compact dimensions 5.1 in L × 6.5 in W × 4.2 in H and 4.13 lb weight → Business Impact: Easier fitment and reduced mounting footprint → Application: Retrofit and new installations in standard panels. Feature: Certifications and ratings NEC/CEC, NEMA 7 9 3, area classification Hazardous/Classified Locations → Business Impact: Full compliance with industry standards, enabling safe operation → Application: Compliance-driven projects in oil, gas, and chemical sectors. Feature: Compatibility with DSD series → Business Impact: Simplified procurement and faster installation → Application: Eaton Crouse-Hinds panel design and maintenance programs.
Get a Quick Quote for a Eaton Crouse-Hinds DSD947 J1 J11
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DSD947 J1 J11?
Enquire Now
FAQs
Yes. The DSD947 J1 J11 is designed for Eaton Crouse-Hinds DSD family, enabling straightforward mounting in standard hazardous-location panels. It aligns with DSD cover and device sub-assemblies, supporting two pilot lights and factory sealing to meet Class II Division 1 and Division 2 requirements.
The unit features two pilot lights in Red/Blue, designed for clear status indication in hazardous environments. It uses a Feraloy iron alloy body, factory sealed construction, and supports two independent indicators, improving visibility without compromising enclosure integrity or safety ratings.
Ideal for oil and gas, chemical processing, offshore platforms, and other hazardous/classified locations. The assembly carries NEC/CEC compliance and a NEMA 7 9 3 rating, making it suitable for areas with explosive atmospheres and demanding environmental conditions where reliable signaling is critical.
The DSD947 J1 J11 meets NEC/CEC standards, is rated for Hazardous/Classified Locations, and carries a NEMA rating of 7 9 3. Certification documents and UL reports are available in the downloads section to support regulatory audits and installation verification.
Standard installation instructions and catalogs are provided, including IF 1929 toggle operator references and the DSD cover catalog page. Factory sealing minimizes maintenance, while compatibility with the DSD series simplifies spare parts management and lifecycle costs in ongoing automation projects.
