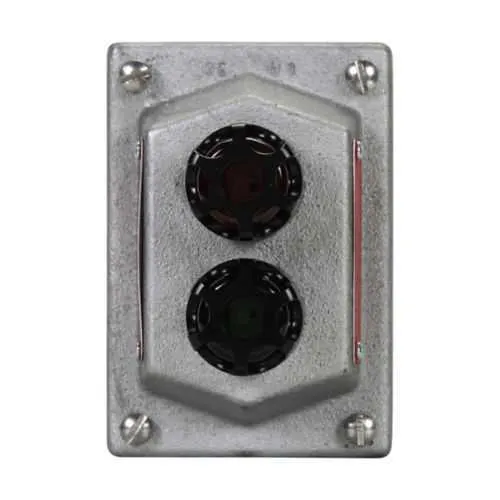

Eaton DSD947 J6 J3 Pilot Light Cover - NEC/CEC
Part Number: DSD947 J6 J3
Quick Summary
The Eaton Crouse-Hinds DSD947 J6 J3 pilot light cover provides reliable signaling in hazardous locations. Installers often confront moisture ingress, dust, and unreliable indicators that fail in harsh enclosures, leading to costly downtime. This unit carries NEC/CEC certification for hazardous locations, including Class I and II (Div 1 and 2) and Class III, with a NEMA rating of 3, 9, 7, ensuring compliance across demanding environments. Factory sealed and color-coded Amber/green, it supports two pilot lights for clear status indication. Designed for use with Eaton DSD covers and device sub-assemblies, it reduces maintenance cycles and helps standardize signaling across control panels. The combination of rugged construction and certified performance adds value to industrial control systems and marina/hazardous-area installations.
Product Information
Extended Description
DSD947 J6 J3 Eaton Crouse-Hinds: Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly, Amber/green, Feraloy iron alloy, Factory sealed, Two pilot lights
Product Name
Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly
Catalog Number
DSD947 J6 J3
Product Length/Depth
5.1 in
Product Height
4.2 in
Product Width
6.5 in
Product Weight
3.3 lb
UPC
782274680842
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class I, Division 2 Class II, Division 2 Class II, Division 1 Class I, Division 1 Class III
NEMA Rating
3 9 7
Color
Amber/green
Material
Feraloy iron alloy
Special features
Factory sealed
Type
Two pilot lights
DSD and DSDX Cover and Device Sub-assemblies catalog page
DSD Explosionproof Cover and Device Sub-assemblies UL certification
DSD Explosionproof Cover and Device Sub-assemblies UL certification
IF 1424 - DSD, GFS, CPS and ENR Series Replacement Covers
IF 1424 - DSD, GFS, CPS and ENR Series Replacement Covers
IF 1424 - DSD, GFS, CPS and ENR Series Replacement Covers
Eaton Specification Sheet - DSD947 J6 J3
Amber/green dual pilot lights provide immediate status visibility, reducing operator error and helping maintenance teams pinpoint faults faster. This translates into shorter downtime and safer startup of hazardous-area control panels, ideal for oil and gas, chemical processing, or marine applications where clear signaling is critical. Factory-sealed construction protects the illumination circuitry from moisture ingress, dust, and corrosive vapors, delivering dependable operation in tough environments. For plants with frequent washdowns or humid atmospheres, this design minimizes maintenance and replacement costs while maintaining signaling integrity. Feraloy iron alloy housing delivers enhanced mechanical strength and corrosion resistance, extending service life in aggressive environments and supporting long-term reliability. The unit’s dimensions and weight (5.1 in L, 4.2 in H, 6.5 in W, 3.3 lb) enable straightforward mounting on standard DSD covers and device sub-assemblies, reducing installation time and field adjustments. Certification to NEC/CEC standards and the NEMA ratings 3, 9, and 7 provide regulatory alignment, lowering compliance risk and enabling seamless integration into hazardous-location panels. Two pilot lights provide redundant indication paths, increasing visibility and reducing misinterpretation during high-noise operations and complex process signaling.
Get a Quick Quote for a Eaton Crouse-Hinds DSD947 J6 J3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DSD947 J6 J3?
Enquire Now
FAQs
The DSD947 J6 J3 is designed as a cover and device sub-assembly for Eaton Crouse-Hinds DSD signaling equipment. It fits standard DSD covers and device sub-assemblies used in hazardous-location control panels, with two amber/green pilot lights and factory-sealed construction suitable for Class I, II, and III environments. When planning upgrades, verify enclosure space, mounting patterns, and compatibility with existing DSD components to ensure a seamless retrofit.
DSD947 J6 J3 carries NEC/CEC certification for hazardous locations, including Class I and II divisions 1 and 2, and Class III. It also aligns with NEMA ratings 3, 9, and 7, providing protection against environmental factors and permitting installation in harsh process, chemical, and marine environments. Always confirm local codes and site-specific classifications before installation.
The sub-assembly measures 5.1 inches in length, 4.2 inches in height, and 6.5 inches in width, with a weight of 3.3 pounds. These dimensions support straightforward mounting on standard enclosure openings and fit within common panel cutouts for DSD series assemblies, helping minimize field modification and installation time.
Factory sealing protects the two amber/green pilot lights from moisture, dust and corrosive vapors, reducing ingress-related failures and extending service intervals. This leads to lower maintenance costs, fewer unplanned outages, and consistent signaling performance in harsh environments typical of oil, gas, chemical, and marine installations.
Reliable technical resources include the DSD/DSDX catalog page, UL certification reports, installation instructions, and Eaton’s specification sheet. Access them via the product downloads section to verify certifications, mounting guidelines, and replacement part compatibility, ensuring your hazardous-area signaling remains compliant and up to date.
