Eaton DSD948 J1 LED T4 - Hazardous Location UL
Part Number: DSD948 J1 LED T4
Manufacturer
Eaton Crouse-Hinds
Part number
DSD948 J1 LED T4
Category
Quick Summary
DSD948 J1 LED T4 is a hazardous-area pilot light cover and device sub-assembly for control stations. Engineers often battle signal degradation, moisture ingress, and unsealed enclosures in harsh environments; this design delivers a sealed, LED-based signaling solution to slash maintenance downtime. It carries NEC/CEC compliance along with Hazardous/Classified Locations recognition and aligns with NEMA ratings 9, 7, 3 for robust protection in demanding spaces. The LED and integrated transformer simplify wiring while ensuring long service life, reducing replacement cycles. With factory sealing and rugged construction, it supports scalable automation investments while maintaining safety and reliability in your industrial processes.
Product Information
Extended Description

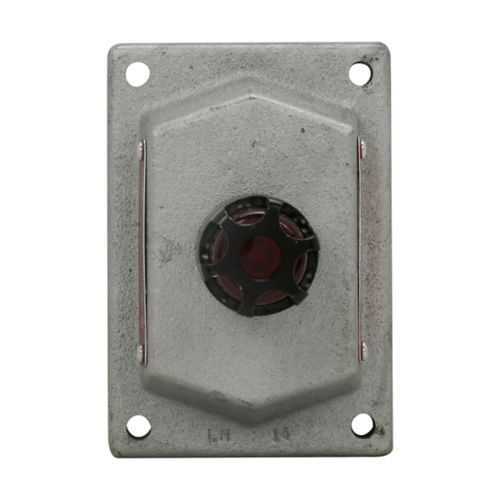

DSD948 J1 LED T4 Eaton Crouse-Hinds: Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly, Red, Feraloy iron alloy, LED, transformer, factory sealed, One pilot light, 440-480 Vac
Product Name
Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly
Catalog Number
DSD948 J1 LED T4
Product Weight
3.4 lb
UPC
782274970301
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class II, Division 1 Class I, Division 2 Class II, Division 2 Class III Class I, Division 1
NEMA Rating
9 7 3
Voltage rating
440-480 Vac
Color
Red
Material
Feraloy iron alloy
Special features
LED, transformer, factory sealed
Type
One pilot light
DSD and DSDX Cover and Device Sub-assemblies catalog page
DSD Explosionproof Cover and Device Sub-assemblies UL certification
DSD Explosionproof Cover and Device Sub-assemblies UL certification
IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations
IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations
IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations
Eaton Specification Sheet - DSD948 J1 LED T4
Feature: Red LED pilot light with transformer. Business Impact: Clear, energy-efficient signaling reduces false trips and improves operator response times across zones. Application: Control stations in hazardous locations where visibility and reliability matter. Feature: Factory-sealed enclosure. Business Impact: Attains dust, moisture, and explosive-atmosphere protection, lowering maintenance costs and downtime. Application: Offshore platforms, chemical plants, and mining sites where enclosure integrity is critical. Feature: Feraloy iron alloy housing. Business Impact: Enhanced mechanical robustness and vibration resistance, extending component life in tough environments. Application: Heavy-industrial floors and equipment with constant vibration. Feature: Voltage rating 440-480 Vac. Business Impact: Direct compatibility with standard plant control circuits, reducing field wiring and increasing installation speed. Application: Medium-voltage control panels and motor starter assemblies. Feature: Certifications and ratings (NEC/CEC, Area classification, NEMA 9 7 3). Business Impact: Simplifies compliance audits and reduces risk of non-conformance. Application: Class I/II/III environments in compliance-driven projects. Feature: 1 pilot light, LED-based signaling with integrated transformer. Business Impact: Lower power consumption, longer life, and predictable maintenance windows. Application: Alarm and status indications in hazardous-area control stations.
Get a Quick Quote for a Eaton Crouse-Hinds DSD948 J1 LED T4
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DSD948 J1 LED T4?
Enquire Now
FAQs
The DSD948 J1 LED T4 is designed to fit standard DSD cover and device sub-assemblies. Ensure the enclosure is rated for Hazardous/Classified Locations, connect the 440-480 Vac supply to the transformer input, and mount the unit per Eaton’s IF899 installation guidelines. Verify the pilot light, wiring clearances, and sealing integrity after installation to maintain NEMA and NEC/CEC compliance.
Key specifications include a 440-480 Vac voltage rating, Red LED indicator, built-in transformer, and a single pilot light configuration. The device is factory sealed and uses Feraloy iron alloy housing for rugged operation. These details support reliable signaling in hazardous locations, meeting NEC/CEC standards and corresponding NEMA ratings 9, 7, and 3.
Yes. The DSD948 J1 LED T4 is certified for Hazardous/Classified Locations with NEC/CEC standards and NEMA ratings compatible with Class I, II, and III installations. Its factory sealing and robust housing make it suitable for chemical processing, oil and gas refining, and other high-risk environments where safe, visible signaling is critical.
The unit supports NEC/CEC compliance and Hazardous/Classified Locations area classifications, with NEMA ratings 9, 7, 3. Certification references include UL-based documents for explosion-proof sub-assemblies. These certifications simplify regulatory approvals, expedite procurement, and reduce risk for global projects involving hazardous-area signaling.
LED signaling offers longer life and lower energy use than incandescent options, while factory sealing minimizes ingress-related failures. The combined effect is fewer maintenance intervals, lower replacement costs, and improved uptime for critical control panels in demanding environments, translating to reduced total cost of ownership and faster ROI on automation upgrades.
