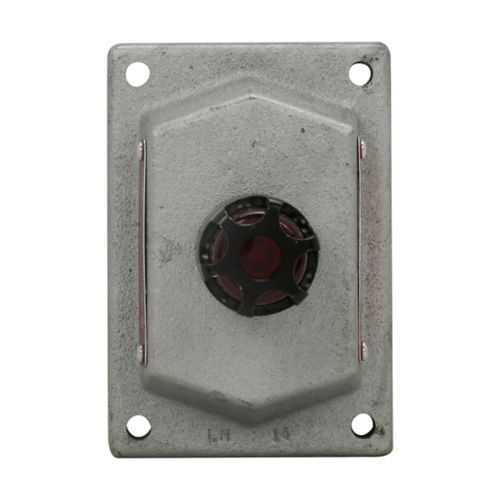

Eaton DSD948 J11 LED - Hazardous Classified Locations
Part Number: DSD948 J11 LED
Manufacturer
Eaton Crouse-Hinds
Part number
DSD948 J11 LED
Category
Quick Summary
DSD948 J11 LED is a rugged pilot light cover and device sub-assembly designed for hazardous-area control stations. Operators often struggle to preserve enclosure integrity while meeting strict explosion-protection standards in dusty or wet environments. This unit carries NEC/CEC compliance and hazardous-area ratings, including Class I, Division 1 and Class II, Division 1, plus robust NEMA ratings 7, 9, and 3. The blue LED pilot light, factory-sealed enclosure, and Feraloy iron alloy body deliver reliable operation, reducing maintenance and downtime while improving panel visibility. Built to integrate with standard DSD covers and Eaton's hazardous-location solutions, it simplifies installation and enhances field reliability across industrial automation panels.
Product Information
Extended Description
DSD948 J11 LED Eaton Crouse-Hinds: Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly, Blue, Feraloy iron alloy, LED, factory sealed, One pilot light
Product Name
Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly
Catalog Number
DSD948 J11 LED
Product Weight
3.13 lb
UPC
782274099255
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class II, Division 1 Class I, Division 1 Class II, Division 2 Class III Class I, Division 2
NEMA Rating
7 9 3
Color
Blue
Material
Feraloy iron alloy
Special features
LED, factory sealed
Type
One pilot light
DSD and DSDX Cover and Device Sub-assemblies catalog page
DSD Explosionproof Cover and Device Sub-assemblies Canadian certification
DSD Explosionproof Cover and Device Sub-assemblies Canadian certification
IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations
IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations
IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations
Eaton Specification Sheet - DSD948 J11 LED
Feature: Feraloy iron alloy housing delivers rugged durability and corrosion resistance in harsh environments. Business impact: reduced field failures and lower maintenance costs across chemical plants, offshore platforms, and mining operations. Application: ideal for hazardous-area control stations and equipment enclosures exposed to moisture, dust, and aggressive chemicals. Feature: LED illumination provides long life and energy efficiency compared with traditional pilots. Business impact: lower energy consumption, fewer replacements, and improved visibility on control panels. Application: suitable for process automation panels requiring clear signaling in variable lighting conditions. Feature: Factory-sealed construction protects internal electronics from dust, moisture, and ignition sources. Business impact: reduces ignition risk and maintenance downtime, supporting safer operations in demanding environments. Application: offshore rigs, refineries, and chemical plants with challenging ambient conditions. Feature: Compliance and ratings including NEC/CEC, hazardous-area classifications, and NEMA 7/9/3 ensure installation freedom and regulatory confidence. Business impact: streamlines procurement, accelerates approvals, and reduces rework during audits. Application: new installations or retrofits of safety-critical machinery. Feature: Compatibility and installation convenience with Catalog Number DSD948 J11 LED, color Blue, weight 3.13 lb, and standard DSD cover fit. Business impact: faster commissioning, secure mounting, and predictable service life. Application: retrofit or new-build panels across industrial automation environments.
Get a Quick Quote for a Eaton Crouse-Hinds DSD948 J11 LED
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DSD948 J11 LED?
Enquire Now
FAQs
The DSD948 J11 LED is designed for hazardous and classified locations, offering a blue LED pilot light within a factory-sealed sub-assembly that fits standard DSD covers. It is suitable for control stations, machine enclosures, and panels in chemical plants, refineries, mining operations, and offshore environments where dust, moisture, or potentially explosive atmospheres are present.
The unit complies with NEC/CEC standards for hazardous areas and carries NEC hazardous ratings including Class I Division 1, Class II Division 1, plus other Class II Division 2 and Class III designations. It also provides NEMA ratings 7, 9, and 3, ensuring enclosure integrity and safe operation in a wide range of hazardous-location installations.
Yes. The DSD948 J11 LED is specified to operate in Class II, Division 1 locations, among other hazardous-area ratings. This makes it suitable for metalworking, textile, and chemical processing environments where ignition sources must be minimized and equipment must meet stringent safety codes.
Maintenance is reduced thanks to LED life and a factory-sealed design that limits ingress of dust and moisture. Periodic visual inspections for moisture or discoloration are recommended, and components should be serviced with genuine Eaton parts if replacement is required. The durable Feraloy housing further minimizes corrosion-related maintenance in harsh environments.
The DSD948 J11 LED is designed to fit standard DSD covers and assemblies, featuring a blue LED indicator and a weight of 3.13 lb for stable mounting. It supports straightforward installation in existing hazardous-location control panels and is compatible with Eaton’s DSD series accessories for streamlined retrofits and upgrades.
