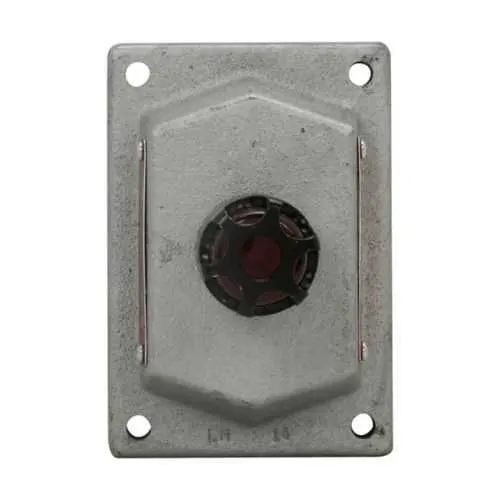

Eaton Crouse-Hinds DSD948 J6 Pilot Light Cover - NEC/CEC
Part Number: DSD948 J6
Quick Summary
Eaton Crouse-Hinds DSD948 J6 is a pilot light cover and device sub-assembly designed for hazardous-area control stations in industrial facilities. Field engineers often struggle with finding factory-sealed, code-compliant lighting components that install quickly without compromising safety. It supports NEC/CEC compliance, hazardous-area ratings, and NEMA configurations, helping projects meet codes on day one. In addition to robust protection, the amber pilot light sub-assembly reduces maintenance costs and accelerates installation in automation and process-control environments. With factory-sealed construction and a compact footprint, it integrates seamlessly with DSDX and EDS control stations. The unit's amber color aids quick status indication in hazardous environments, enhancing operator awareness during startup and maintenance windows. This makes it a reliable choice for oil, gas, mining, and chemical processing facilities.
Product Information
Extended Description
DSD948 J6 Eaton Crouse-Hinds: Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly, Amber, Feraloy iron alloy, Factory sealed, One pilot light
Product Name
Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly
Catalog Number
DSD948 J6
Product Weight
3.15 lb
UPC
782274034379
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class II, Division 2 Class I, Division 1 Class I, Division 2 Class III Class II, Division 1
NEMA Rating
9 7 3
Color
Amber
Material
Feraloy iron alloy
Special features
Factory sealed
Type
One pilot light
DSD and DSDX Cover and Device Sub-assemblies catalog page
DSD Explosionproof Cover and Device Sub-assemblies Canadian certification
DSD Explosionproof Cover and Device Sub-assemblies Canadian certification
IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations
IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations
IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations
Eaton Specification Sheet - DSD948 J6
Feature: Amber color and durable Feraloy iron alloy construction with factory sealed design. Business Impact: provides reliable operation in moist, dusty, and explosive atmospheres, reducing corrosion-related downtime and maintenance costs. Application: suitable for hazardous-area pilot-light coverage in oil, gas, chemical plants, and mining operations. Feature: Integrated one pilot light sub-assembly. Business Impact: simplifies wiring and reduces components in the field, shortening installation and commissioning. Application: ideal for DSD control stations where compact, turnkey lighting sub-assemblies are required. Feature: NEC/CEC compliance and hazardous-location ratings; NEMA 9, 7, 3. Business Impact: ensures regulatory acceptance, faster audits, and minimized design changes. Application: used in Class I/II/III environments across industries. Feature: Area classification support: Hazardous/Classified Locations. Business Impact: ensures proper location classification and safe operation. Application: suitable for oil, gas, chemical, mining, and power-generation facilities. Feature: Documentation and compatibility resources. Business Impact: reduces procurement risk and speeds integration with existing DSD/DSDX systems. Application: facilitates seamless deployment in automation networks and control-station retrofits.
Get a Quick Quote for a Eaton Crouse-Hinds DSD948 J6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DSD948 J6?
Enquire Now
FAQs
In Class I, Division 1 settings, mount the DSD948 J6 to a compatible enclosure, preserve the factory seal, and use the recommended DSDX/EDS control-station assemblies. Tighten fasteners to specification and ensure amber visibility through the enclosure window. This minimizes rework and maintains integrity of the hazardous-area system.
Key specs include amber color, Feraloy iron alloy construction, factory-sealed housing, and a single pilot light. Catalog number DSD948 J6, UPC 782274034379, weight 3.15 lb. Certifications: NEC/CEC compliance with Hazardous Location ratings, and NEMA ratings 9, 7, 3. This combination supports robust field performance in demanding environments.
Yes. The DSD948 J6 is a pilot-light cover and device sub-assembly designed for Eaton Crouse-Hinds DSD control-station systems. It integrates with existing DSD/DSDX assemblies, enabling streamlined installation and reducing field components while maintaining factory sealing for hazardous locations.
DSD948 J6 carries NEC/CEC compliance, Hazardous/Classified Locations suitability, and NEC hazardous ratings including Class I, Division 1 and Division 2, Class II, Division 2, and Class III. It also aligns with NEMA ratings 9, 7, 3, ensuring suitability for oil/gas, chemical, and mining environments.
Access Eaton resources such as the DSD and DSDX Cover and Device Sub-assemblies catalog page, Canadian certification pages, IF 899 installation sheets, and the Eaton specification sheet for DSD948 J6. These documents provide wiring diagrams, installation steps, and compliance data to accelerate field deployment.
