Eaton Crouse-Hinds DSD948 J6 LED T4 - Hazardous Locations

Part Number: DSD948 J6 LED T4
DSD948 J6 LED T4
Manufacturer
Eaton Crouse-Hinds
Part number
DSD948 J6 LED T4
Category

Quick Summary

DSD948 J6 LED T4 pilot light cover and device sub-assembly provides reliable signaling in hazardous environments. Manufacturers often struggle with compatibility, high voltage requirements, and ingress protection in control panels. It meets NEC/CEC standards and hazardous-area ratings for multiple divisions, with NEMA 9/3/7 protection. The amber LED pilot light, transformer, and factory-sealed design reduce maintenance, while 440-480 VAC support enables quick deployment. Designed for control panels in chemical and oil & gas environments, it supports 440-480 VAC operation and single-pilot light configuration. With amber illumination and a robust Feraloy iron alloy housing, it resists harsh chemicals and temperature swings common in hazardous areas. Certified for NEC/CEC and suitable for Class I/II/III, Division 1 and 2 settings, its plug-and-play installation saves commissioning time.

Product Information

Extended Description

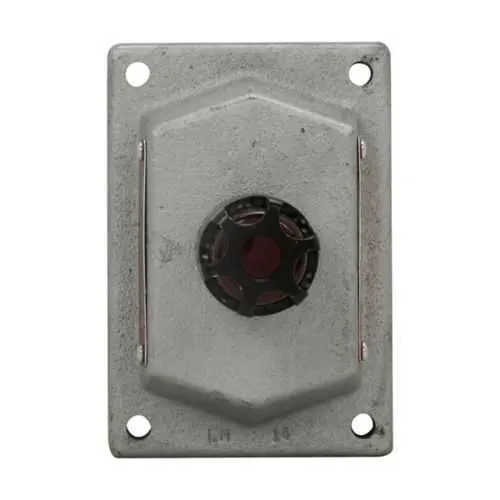

DSD948 J6 LED T4 Eaton Crouse-Hinds: Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly, Amber, Feraloy iron alloy, LED, transformer, factory sealed, One pilot light, 440-480 Vac
Product Name
Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly
Catalog Number
DSD948 J6 LED T4
Product Weight
3.4 lb
UPC
662276120181
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class II, Division 2 Class III Class II, Division 1 Class I, Division 1 Class I, Division 2
NEMA Rating
9 3 7
Voltage rating
440-480 Vac
Color
Amber
Material
Feraloy iron alloy
Special features
LED, transformer, factory sealed
Type
One pilot light
DSD and DSDX Cover and Device Sub-assemblies catalog page DSD Explosionproof Cover and Device Sub-assemblies UL certification DSD Explosionproof Cover and Device Sub-assemblies UL certification IF 1424 - DSD, GFS, CPS and ENR Series Replacement Covers IF 1424 - DSD, GFS, CPS and ENR Series Replacement Covers IF 1424 - DSD, GFS, CPS and ENR Series Replacement Covers Eaton Specification Sheet - DSD948 J6 LED T4
Feature: Amber LED pilot light with an integrated transformer. Business Impact: Clear status indication and fast fault identification, reducing downtime. Application: Suitable for hazardous-area control panels and machine enclosures in process industries. Feature: Factory-sealed housing. Business Impact: Ingress protection minimizes maintenance frequency and extends service life in chemical and dusty environments. Application: On-site panel installations subject to moisture and splashes. Feature: 440-480 VAC rating and single pilot light. Business Impact: Simplifies wiring and project planning using standard plant power. Application: Turnkey control panels powering motors and sensors. Feature: Feraloy iron alloy construction. Business Impact: Superior mechanical strength and corrosion resistance in aggressive environments. Application: Offshore platforms and chemical plants. Feature: Certifications and compatibility resources. Business Impact: NEC/CEC, Class I/II/III divisions, and NEMA ratings streamline approvals; UL guidance via catalog pages and IF1424 support. Application: Integrates with DSD covers and installation instructions.

Get a Quick Quote for a Eaton Crouse-Hinds DSD948 J6 LED T4

Chat with us on WhatsApp - fast responses guaranteed

Need to speak with someone? We'll call you back within 2 hours during business hours

Interested in Eaton Crouse-Hinds DSD948 J6 LED T4? Enquire Now

FAQs

The DSD948 J6 LED T4 is designed as a pilot light cover and device sub-assembly compatible with Eaton Crouse-Hinds DSD cover families. It wires to standard 440-480 VAC supplies, uses a built-in transformer, and aligns with IF 1424 installation guidance. For retrofit projects, verify enclosure ratings and ensure the assembly remains factory sealed during mounting.
Key specs include a voltage rating of 440-480 Vac, amber LED illumination, a built-in transformer, and a single pilot light configuration. The unit weighs 3.4 lb and is designed for hazardous locations per NEC/CEC. It provides reliable signaling with a factory-sealed enclosure suitable for control panels in demanding environments.
Yes. The DSD948 J6 LED T4 is rated for hazardous/classified locations and supports Class I Division 1 as well as other divisions and classes (2 and 3). It carries NEC/CEC compliance and NEMA ratings, making it suitable for chemical-processing facilities, refineries, and other high-risk installations.
The unit adheres to NEC/CEC standards with hazardous-location ratings including Class I and II divisions 1 and 2, and Class III. NEMA ratings include 9, 3, and 7. Additional references include UL certification pages and Eaton installation sheets such as IF1424, ensuring regulatory alignment.
The factory-sealed design minimizes ingress, reducing field maintenance frequency and downtime. The amber LED has a long life, and integrated transformer simplifies wiring. Combined with documented replacement covers and installation guidance, this configuration delivers predictable uptime and faster ROI in hazardous-area control systems.
