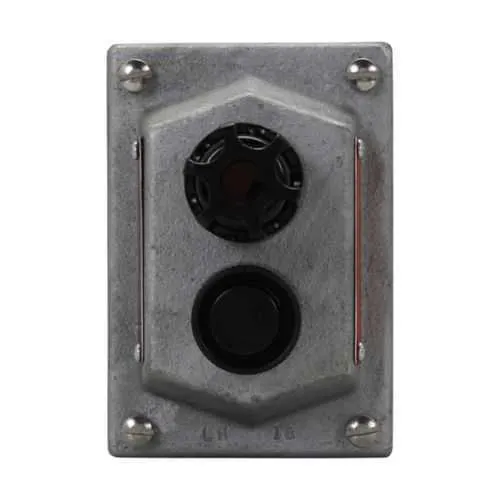

Eaton DSD958 J10 Pilot Light Cover - 600 Vac (Hazardous)
Part Number: DSD958 J10
Quick Summary
DSD958 J10 pilot light cover and device sub-assembly delivers clear signaling for hazardous-location control panels. Upgrading enclosures in Class I/II environments often challenges sealing integrity, regulatory traceability, and compatibility with existing pushbutton palettes. This assembly is built for NEC/CEC safety compliance, with hazardous ratings spanning Class II, Division 1 and Class I, Division 2, plus a NEMA rating of 7, 3 and 9. Its factory-sealed construction, 1-button/pilot configuration, and 600 Vac rating translate to faster installs, fewer field failures, and scalable solutions for industrial automation panels. With easy field replacement and documented instruction support, operators minimize downtime and improve safety.
Product Information
Extended Description
DSD958 J10 Eaton Crouse-Hinds: Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly, 10A, Clear, Feraloy iron alloy, 1 button, Factory sealed, One pilot light and pushbutton, 600 Vac
Product Name
Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly
Catalog Number
DSD958 J10
Product Length/Depth
5.1 in
Product Height
3.5 in
Product Width
5.5 in
Product Weight
4.41 lb
UPC
782274776804
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class II, Division 1 Class I, Division 2 Class I, Division 1 Class II, Division 2 Class III
NEMA Rating
7 3 9
Voltage rating
600 Vac
Number of cover buttons
1
Amperage Rating
10A
Color
Clear
Material
Feraloy iron alloy
Special features
Factory sealed
Type
One pilot light and pushbutton
DSD and DSDX Cover and Device Sub-assemblies catalog page
DSD Explosionproof Cover and Device Sub-assemblies Canadian certification
DSD Explosionproof Cover and Device Sub-assemblies Canadian certification
IF 1424 - DSD, GFS, CPS and ENR Series Replacement Covers
IF 1424 - DSD, GFS, CPS and ENR Series Replacement Covers
IF 1424 - DSD, GFS, CPS and ENR Series Replacement Covers
Eaton Specification Sheet - DSD958 J10
Feature: One pilot light and pushbutton in a single sub-assembly. Benefit: Reduces panel footprint and wiring complexity, cutting installation time and enabling quicker troubleshooting on hazardous-area equipment. Application: Ideal for control stations in chemical, mining, and offshore environments where space is at a premium. Feature: 600 Vac, 10 A rating. Benefit: Supports high-energy signaling while meeting safe operating limits for typical hazardous-area control circuits. Application: Suitable for national electrical code compliant control loops in Class I and II locations. Feature: Clear lens with factory-sealed body. Benefit: Improves visibility of status indicators while maintaining ingress protection in demanding environments. Application: Used on enclosures exposed to dust, moisture, and corrosive atmospheres. Feature: Feraloy iron alloy construction. Benefit: Enhanced strength and corrosion resistance for long lifecycle performance. Application: Deploy in harsh industrial settings such as refineries, offshore platforms, and heavy manufacturing. Feature: NEC/CEC certifications and NEMA ratings (7, 3, 9). Benefit: Reduces compliance risk and accelerates acceptance in regulated facilities. Application: Enables rapid qualification of panel assemblies for hazardous locations, with documented installation guidance (IF 1424) for replacement covers. Feature: Factory-sealed design and compatibility with 1-button controls. Benefit: Lower maintenance costs and predictable lifecycle, supporting maintenance planning and uptime metrics. Application: Suitable for retrofit or new panel builds requiring a proven, code-compliant signaling solution.
Get a Quick Quote for a Eaton Crouse-Hinds DSD958 J10
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DSD958 J10?
Enquire Now
FAQs
Follow the IF 1424 replacement covers guidance to ensure proper sealing and correct mounting. Verify the enclosure rating matches Class I/II/III Div 1/2 requirements, then connect the 1-button/pilot assembly per the schematic. Use appropriate gaskets and maintain a factory-sealed interface to preserve ingress protection and certified performance.
DSD958 J10 carries NEC/CEC safety certifications with hazardous ratings across Class II, Division 1 and Class I, Division 2 (and related classifications). It also carries a NEMA rating of 7, 3, 9, and is designed for use in Hazardous/Classified Locations in compliance with NEC/CEC standards.
Yes. The unit is engineered for 600 Vac operation and provides a 10 A amperage rating, making it suitable for signaling and control in many hazardous-area circuits without overstressing the switch or light element.
The device sub-assembly uses Feraloy iron alloy, offering robust mechanical strength and corrosion resistance essential for harsh industrial environments found in refineries, mining, and offshore platforms.
Factory-sealed construction minimizes ingress and maintenance needs. For replacements, refer to the IF 1424 instructions and the DSD catalog pages for compatible replacement covers and field installation steps, enabling quick service with confirmed compatibility.
