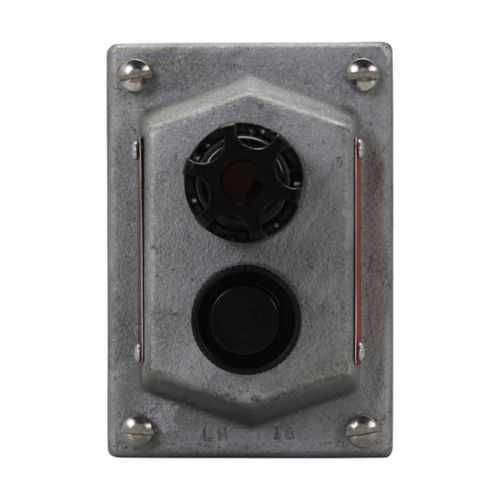

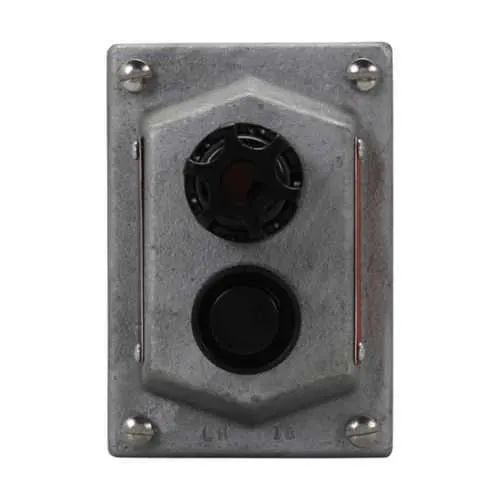

Eaton DSD958 J3 Pilot Light Cover - 600 Vac Hazardous
Part Number: DSD958 J3
Quick Summary
The DSD958 J3 pilot light cover and device sub-assembly anchors safe control signaling in hazardous locations. This compact module streamlines panel wiring while delivering reliable indication and control in demanding environments. It carries NEC/CEC compliance and UL certification for hazardous areas, with a NEMA rating suitable for rugged installations. The rugged green unit combines a single pushbutton and pilot light in a factory-sealed housing, reducing maintenance and simplifying procurement. For engineers and procurement teams, it offers a dependable, code-compliant solution that aligns with hazardous-area control devices and 600 Vac signaling needs.
Product Information
Extended Description
DSD958 J3 Eaton Crouse-Hinds: Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly, 10A, Green, Feraloy iron alloy, 1 button, Factory sealed, One pilot light and pushbutton, 600 Vac
Product Name
Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly
Catalog Number
DSD958 J3
Product Length/Depth
5.1 in
Product Height
3.5 in
Product Width
5.5 in
Product Weight
3.44 lb
UPC
782274272597
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class III Class I, Division 2 Class II, Division 1 Class II, Division 2 Class I, Division 1
NEMA Rating
9 7 3
Voltage rating
600 Vac
Number of cover buttons
1
Amperage Rating
10A
Color
Green
Material
Feraloy iron alloy
Special features
Factory sealed
Type
One pilot light and pushbutton
DSD and DSDX Cover and Device Sub-assemblies catalog page
DSD Explosionproof Cover and Device Sub-assemblies UL certification
DSD Explosionproof Cover and Device Sub-assemblies UL certification
IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations
IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations
IF 899 - EDSX, EDS, EFS, DSDX and DSD Control Stations
Eaton Specification Sheet - DSD958 J3
Feature: Integrated pilot light and pushbutton in one sub-assembly. Business Impact: Reduces panel depth and wiring complexity, accelerating panel assembly and commissioning. Application: Control stations in hazardous locations where space is at a premium. Feature: Factory-sealed enclosure. Business Impact: Prevents ingress of dust, moisture, and explosive atmospheres, lowering maintenance costs and extending service life. Application: Offshore, chemical, and other demanding environments. Feature: Feraloy iron alloy construction. Business Impact: Enhances impact resistance and corrosion tolerance in harsh industrial settings. Application: Marine installations, refineries, and outdoor control panels. Feature: Clear signaling with green indicator. Business Impact: Improves operator visibility and reduces misinterpretation of status in low-light conditions. Application: Alarm and start/stop circuits in hazardous zones. Feature: Robust electrical ratings—600 Vac, 10 A, single button. Business Impact: Supports standard hazardous-location control circuits with reliable performance. Application: Power control and signaling in NEC/CEC-compliant systems. Feature: Certifications and ratings (UL-certified, NEC/CEC, NEMA 9 7 3). Business Impact: Facilitates quick regulatory approvals and system integration, reducing project risk. Application: Multisite deployments requiring proven compliance and compatibility across jurisdictions.
Get a Quick Quote for a Eaton Crouse-Hinds DSD958 J3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DSD958 J3?
Enquire Now
FAQs
When mounting the DSD958 J3, ensure compatibility with standard control station cutouts and maintain appropriate clearance as per hazardous-location guidelines. The unit’s factory-sealed design helps prevent ingress, reducing the need for frequent resealing after installation. Use appropriate mounting hardware and verify that the enclosure rating aligns with your location classification (Division 1/2, Class I/II).
The DSD958 J3 supports 600 Vac with a 10 A amperage rating and incorporates a single pushbutton alongside a pilot light. This combination is suitable for signaling and control in hazardous environments, helping reduce wiring complexity while maintaining reliable operation in demanding applications.
Yes. The device is specified to comply with NEC/CEC standards for hazardous locations and is UL-certified for use in explosion-hazardous environments. It also carries compatible NEMA ratings (9, 7, 3) to support installation in rugged industrial settings.
Best-suited for hazardous-area control stations, instrument panels, and start/stop signaling circuits in chemical plants, refineries, and marine applications. Its factory-sealed build and corrosion-resistant Feraloy iron alloy body provide long-term reliability where maintenance access is limited and safety is paramount.
The factory-sealed enclosure minimizes ingress of dust, moisture, and corrosive agents, reducing maintenance cycles. The rugged Feraloy iron alloy construction increases durability in harsh environments, supporting lower lifecycle costs and fewer replacement parts in hazardous-area installations.
