Eaton DSD958 J6 LED S300 Pilot Light - NEC/CEC Hazardous
Part Number: DSD958 J6 LED S300
Manufacturer
Eaton Crouse-Hinds
Part number
DSD958 J6 LED S300
Category
Quick Summary
DSD958 J6 LED S300 pilot light cover and device sub-assembly delivers reliable status indication for hazardous-area equipment. End-users often struggle with sealed enclosures and wiring compatibility when retrofitting indicators in harsh environments. This solution meets NEC/CEC requirements, NEMA ratings 7, 3, 9, and hazardous-location classifications, supporting Class I/II/III installations. Designed for 24 Vdc control circuits, Amber LED indication, and one pushbutton, it streamlines installation, reduces panel footprint, and enhances diagnostics and maintenance planning for process automation and safety-critical systems. This combination supports faster deployment and long-term reliability in hazardous environments.
Product Information
Extended Description

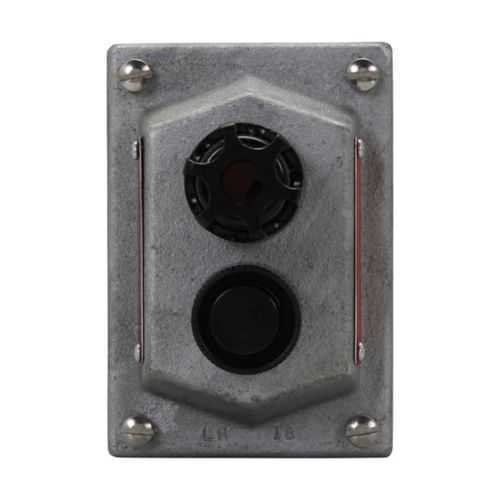

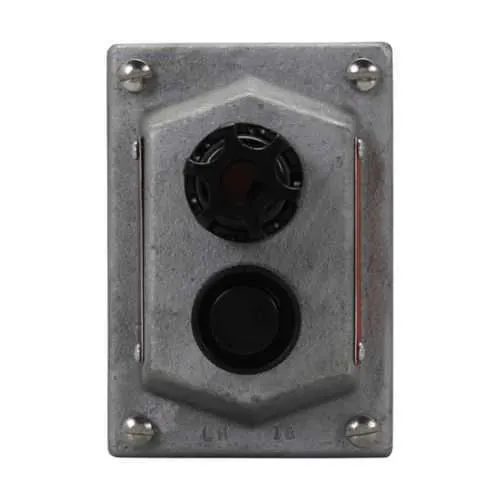

DSD958 J6 LED S300 Eaton Crouse-Hinds: Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly, 10A, Amber, Feraloy iron alloy, 1 button, LED, factory sealed, One pilot light and pushbutton, 24 Vdc
Product Name
Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly
Catalog Number
DSD958 J6 LED S300
Product Weight
4.45 lb
UPC
662276031517
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class II, Division 1 Class I, Division 2 Class III Class I, Division 1 Class II, Division 2
NEMA Rating
7 3 9
Voltage rating
24 Vdc
Number of cover buttons
1
Amperage Rating
10A
Color
Amber
Material
Feraloy iron alloy
Special features
LED, factory sealed
Type
One pilot light and pushbutton
DSD and DSDX Cover and Device Sub-assemblies catalog page
DSD Explosionproof Cover and Device Sub-assemblies Canadian certification
DSD Explosionproof Cover and Device Sub-assemblies Canadian certification
IF 1424 - DSD, GFS, CPS and ENR Series Replacement Covers
IF 1424 - DSD, GFS, CPS and ENR Series Replacement Covers
IF 1424 - DSD, GFS, CPS and ENR Series Replacement Covers
Eaton Specification Sheet - DSD958 J6 LED S300
Feature → Business Impact → Application: 24 Vdc, 10A rating and amber LED indicator with a single pushbutton deliver a compact, integrated signaling solution. Compatible with common control circuits and PLC I/O, reducing wiring complexity and potential fault points, which translates to faster commissioning and fewer field modifications. Ideal for hazardous-area control panels, motor starters, and local status indication in process industries. Feature → Business Impact → Application: Factory sealed construction and LED visibility ensure reliable operation in dirty, damp, or explosive atmospheres. Minimizes ingress, lowers maintenance cycles, and extends device life in harsh environments. Suitable for offshore platforms, chemical plants, and mining sites where equipment must stay energized and visibly reported. Feature → Business Impact → Application: Feraloy iron alloy housing provides rugged mechanical integrity and resistance to corrosion and vibration. Supports long service intervals and reduces replacement costs in dynamic facilities. Equipment enclosures and control stations subject to shock, vibration, or saline spray, ensuring consistent performance. Feature → Business Impact → Application: NEC/CEC compliance with hazardous location ratings (Class II, Division 1; Class I, Division 2; Class III) and NEMA 7, 3, 9 ratings. Streamlines regulatory approvals, simplifies contractor acceptance, and mitigates risk of non-compliance. Design-ins within certified panels, luminaires, and control assemblies for refineries, power plants, and marine installations. Feature → Business Impact → Application: Integration with Eaton Crouse-Hinds DSD cover and device sub-assemblies, including IF 1424 installation guidance. Reduces installation time, ensures proper sealing, and improves spare-part compatibility across legacy and current systems. OEM manufacturing and retrofit projects requiring quick, reliable updates to status signaling. Feature → Business Impact → Application: Amber LED visibility and 24 Vdc operation support standard automation architectures such as PLCs and safety interlocks, delivering immediate visibility of equipment status.
Get a Quick Quote for a Eaton Crouse-Hinds DSD958 J6 LED S300
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DSD958 J6 LED S300?
Enquire Now
FAQs
The DSD958 J6 J6 LED S300 is designed for 24 Vdc control circuits and factory-sealed mounting in Class I/II/III environments. For best results, follow the IF 1424 guidance during installation to ensure proper sealing and compatibility with DSD covers, reducing ingress and maintenance needs.
A 24 Vdc, 10A rating aligns with common control circuits and PLC I/O, delivering robust indicator operation with low power draw. In hazardous locations, this reduces heat generation and wiring complexity while maintaining reliable signaling for safety interlocks and status indicators.
Yes. The unit is certified for NEC/CEC compliance and carries NEMA ratings 7, 3, and 9, with hazardous-location classifications. This simplifies regulatory approvals and ensures compatibility with certified panels, luminaires, and control assemblies in demanding environments.
Absolutely. The DSD958 J6 LED S300 is specified as one pilot light and pushbutton, amber LED, designed to integrate into single-pole control stations and motor-start circuits, providing clear operator signaling while minimizing panel footprint.
With factory sealing and a rugged Feraloy iron alloy body, the unit offers extended service life in harsh environments. Regular inspection of the amber LED indicator and periodic verification of wiring integrity are recommended, while following IF 1424 for replacement covers helps maintain seal integrity.
