Eaton Crouse-Hinds DSD961 J1 - Hazardous Pilot Light Cover
Part Number: DSD961 J1
Quick Summary
Eaton Crouse-Hinds DSD961 J1 is a pilot light cover and device sub-assembly designed for hazardous-location control panels. In demanding environments,Operators need sealed, compliant components that resist dust, moisture, and explosive atmospheres without complicating maintenance. This part carries NEC/CEC compliance with hazardous location ratings across Class I and II divisions and Class III, plus NEMA ratings, giving you dependable protection. Its factory-sealed construction and red visibility support safer, faster troubleshooting, while its compatibility with common DSD family assemblies helps streamline procurement and installation in industrial automation environments.
Product Information
Extended Description

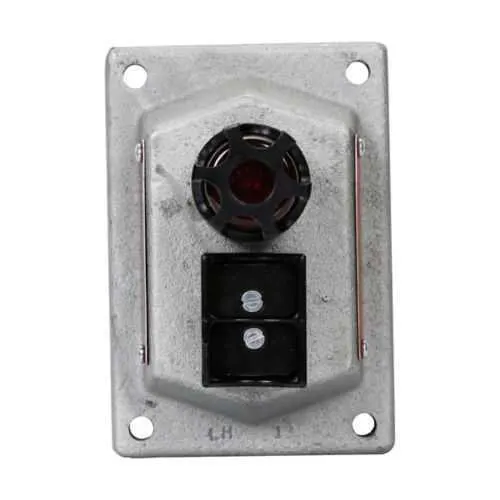

DSD961 J1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly, Red, Feraloy iron alloy, 2 buttons, Factory sealed, One pilot light and one double pushbutton
Product Name
Eaton Crouse-Hinds series DSD pilot light cover and device sub-assembly
Catalog Number
DSD961 J1
Product Weight
3.8 lb
UPC
782274027685
Area classification
Hazardous/Classified Locations
Standards type
NEC/CEC
NEC hazardous rating
Class III Class I, Division 2 Class I, Division 1 Class II, Division 1 Class II, Division 2
NEMA Rating
9 3 7
Number of cover buttons
2
Color
Red
Material
Feraloy iron alloy
Special features
Factory sealed
Type
One pilot light and one double pushbutton
DSD and DSDX Cover and Device Sub-assemblies catalog page
DSD Explosionproof Cover and Device Sub-assemblies UL certification
DSD Explosionproof Cover and Device Sub-assemblies UL certification
IF 1929 - Toggle Operator for EDS, EDSX, EFD, DSD and DSDX Series
IF 1929 - Toggle Operator for EDS, EDSX, EFD, DSD and DSDX Series
IF 1929 - Toggle Operator for EDS, EDSX, EFD, DSD and DSDX Series
Eaton Specification Sheet - DSD961 J1
Feature: Red feraloy iron alloy housing with a factory-sealed build and two cover buttons plus one pilot light. Business Impact: Delivers durable, corrosion-resistant visibility and reliable signaling in hazardous locations, reducing unscheduled downtime and replacement costs. Application: Ideal for control panels in chemical plants, offshore platforms, and mining facilities where quick status indication is critical. Feature: NEC/CEC compliance and multiple hazardous-area ratings (Class I Division 1 and 2; Class II Division 1 and 2; Class III). Business Impact: Simplifies regulatory adherence and risk management, supporting safe operation under strict industry standards. Application: Use during design and retrofit of safety-critical panels to meet code requirements. Feature: NEMA ratings 9, 3, 7 and rugged weight of 3.8 lb. Business Impact: Enables outdoor or washdown-capable installations with predictable mounting and robust ingress protection. Application: Suitable for harsh environments with rigorous cleaning and exposure to elements. Feature: Compatibility with EDS/EDSX/EFD/DSD/DSDX series and installation aids. Business Impact: Speeds installation, reduces wiring errors, and minimizes commissioning time. Application: Aligns with common Crouse-Hinds catalogs and installation instructions to support scalable automation projects.
Get a Quick Quote for a Eaton Crouse-Hinds DSD961 J1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds DSD961 J1?
Enquire Now
FAQs
The DSD961 J1 is designed as a cover and device sub-assembly within the DSD family. For proper mounting and operation, refer to Eaton’s IF 1929 instruction sheets and the DSD catalog page. Follow torque recommendations, compatible frame openings, and sequence for toggling operators to ensure a sealed, safe enclosure in hazardous locations. Where multiple devices are used, verify clearances and wiring compatibility to maintain ingress protection and maintainability.
The unit carries NEC/CEC compliance for Hazardous/Classified Locations with NEC hazardous ratings including Class I Division 1 and 2, Class II Division 1 and 2, and Class III. It is paired with suitable NEMA ratings (9, 3, and 7) to support use in demanding environments. This combination supports regulatory acceptance for many oil & gas, chemical, and mining installations.
Yes. The DSD961 J1 is designed to work with the EDS, EDSX, EFD, DSD, and DSDX series, enabling straightforward retrofits and upgrades in existing control panels. Installation instructions such as IF 1929 provide guidance on toggler integration, ensuring reliable operation while preserving hazardous-location ratings and sealing integrity.
Common applications include hazardous-area control panels in chemical processing, petrochemical facilities, offshore platforms, and mining operations. The red pilot light and two-button cover support clear operator signaling, while the rugged feraloy iron alloy housing withstands corrosive environments and frequent washdowns, aligning with safety and reliability targets in process automation.
The factory-sealed design minimizes ingress and reduces protective-witness maintenance, lowering downtime and replacement costs. Its broad scope of NEC/CEC ratings and NEMA compatibility simplifies compliance documentation and inspection readiness, leading to predictable maintenance cycles, fewer non-conformities, and a lower total cost of ownership for hazardous-location automation projects.
